Waveshare ESP32-P4-NANO-WIFI6-DB Development Board, Basic Kit, Kit A, Kit B, Kit C, Kit D

1. ESP32-P4-NANO-WIFI6-DB is a development board based on ESP32-P4NRW32X. The development board is equipped with a dual-core high-performance processor and a single-core low-power processor. Onboard ESP32-C5-MINI-1U wireless module provides 2.4 GHz / 5 GHz dual-band Wi-Fi 6 and Bluetooth 5 (LE).
2. The development board leads out interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, MicroSD, audio, and GPIO, which is suitable for human-machine interface, edge computing, and IO expansion applications. Actual functions are subject to the firmware and software documentation provided for this model.
3. Equipped with RISC-V 32-bit dual-core high-performance processor (up to 400 MHz) and single-core low-power processor (up to 40 MHz).
4. 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM.
5. Integrated JPEG Codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 Encoder.
6. ESP32-P4NRW32X package in-package stacked 32 MB PSRAM, onboard 16 MB Nor Flash.

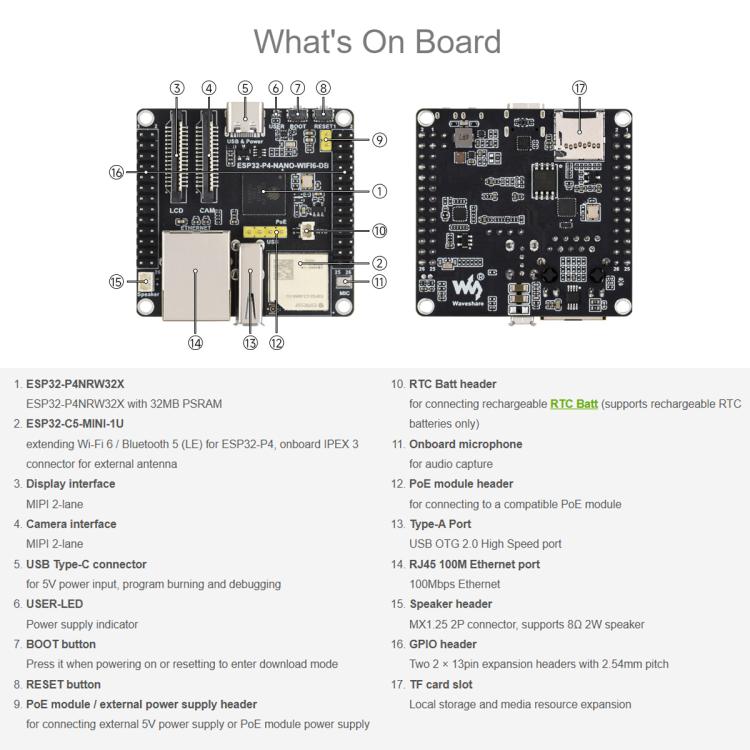

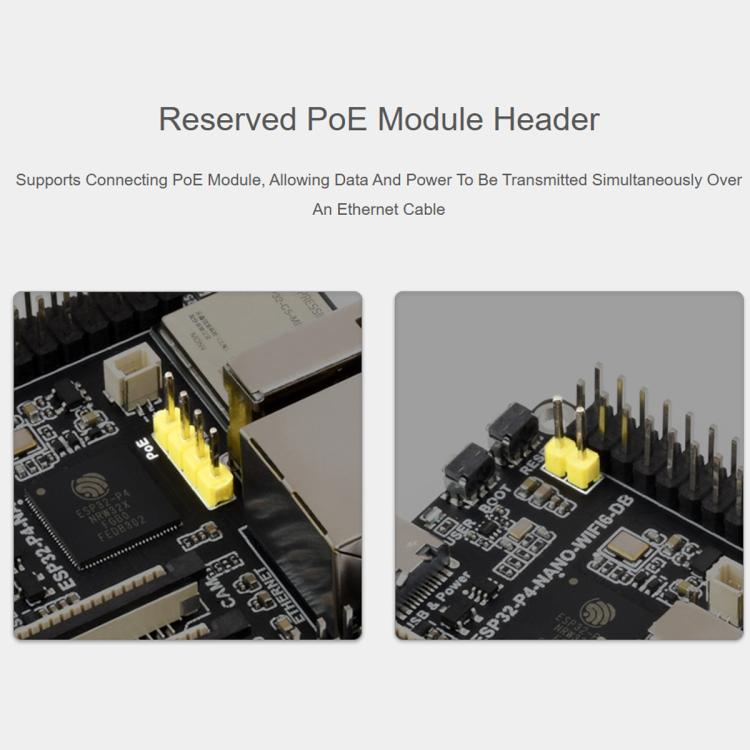

7. Onboard leads out MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, Micro SD, microphone, speaker, and RTC battery interfaces.

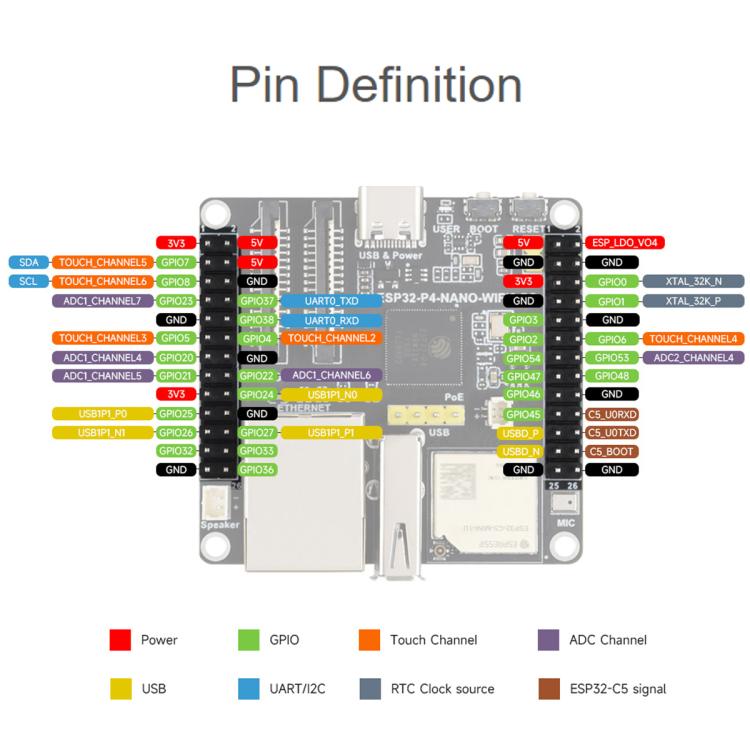

8. Two sets of 2 x 13 GPIO pin headers, leading out 28 programmable GPIOs of ESP32-P4NRW32X.
9. ESP32-C5-MINI-1U external antenna module provides 2.4 GHz / 5 GHz dual-band Wi-Fi 6 and Bluetooth 5 (LE).
10. Supports Secure Boot, Flash Encryption, Hardware Encryption Accelerator, Hardware Random Number Generator, APM Permission Management, and Access Permission Separation.

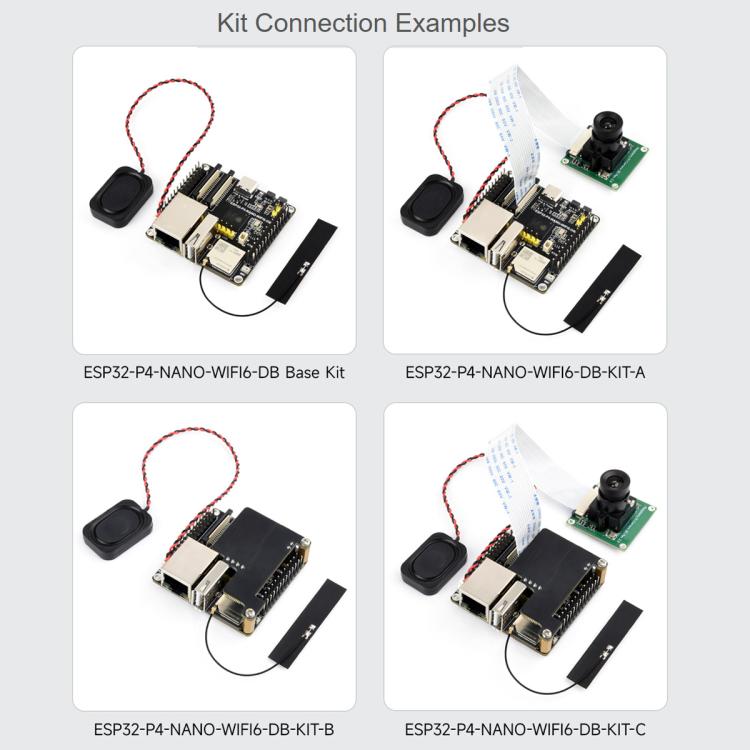

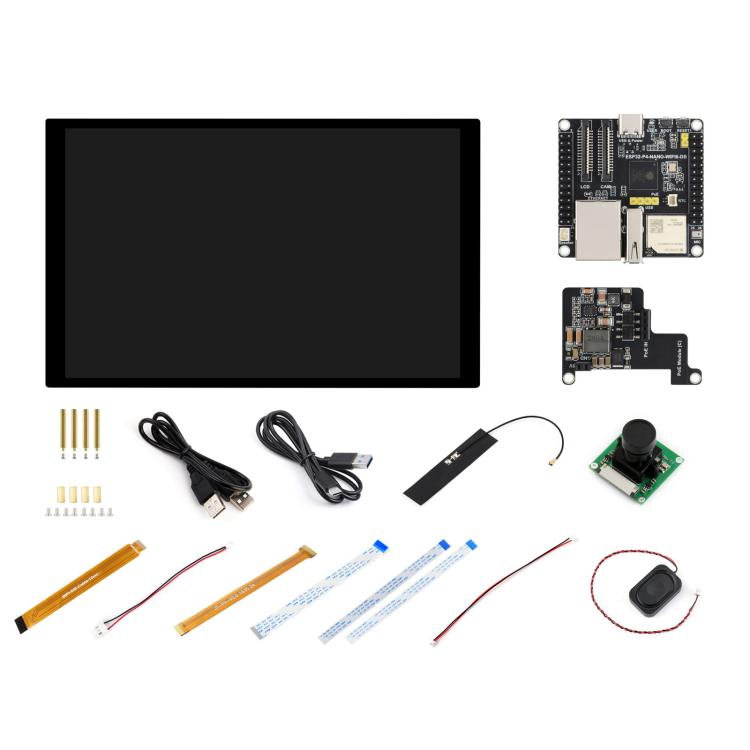

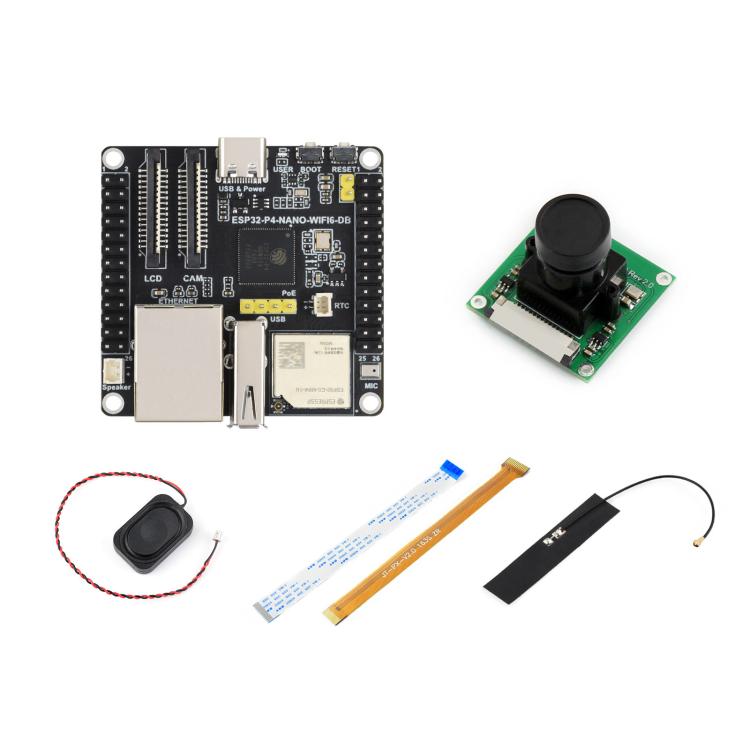

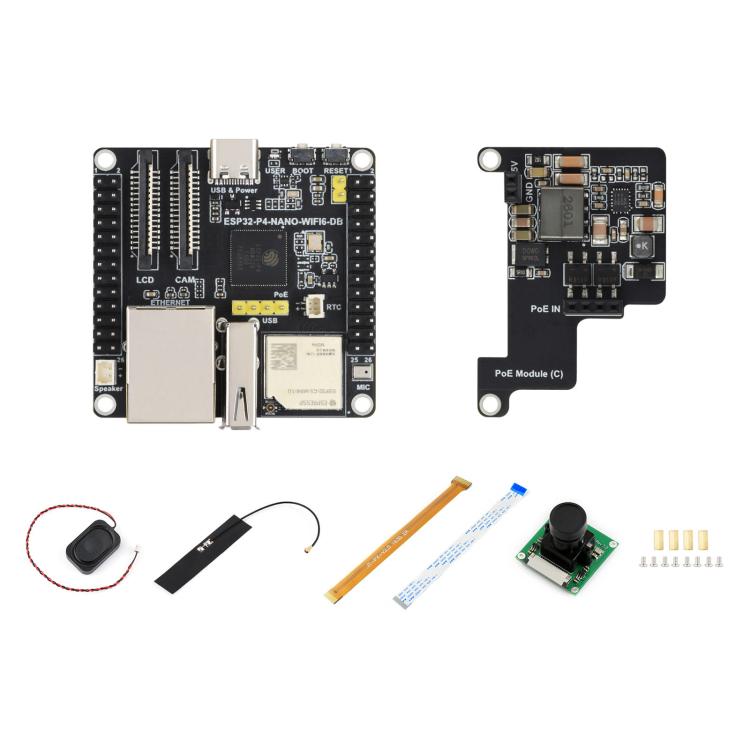

11. The 10.1-inch DSI touch screen is only included in Kit D. For other kits, if you need to use a display, you need to prepare a compatible screen separately; whether the camera module and PoE module are included in the kit depends on the corresponding package list.
