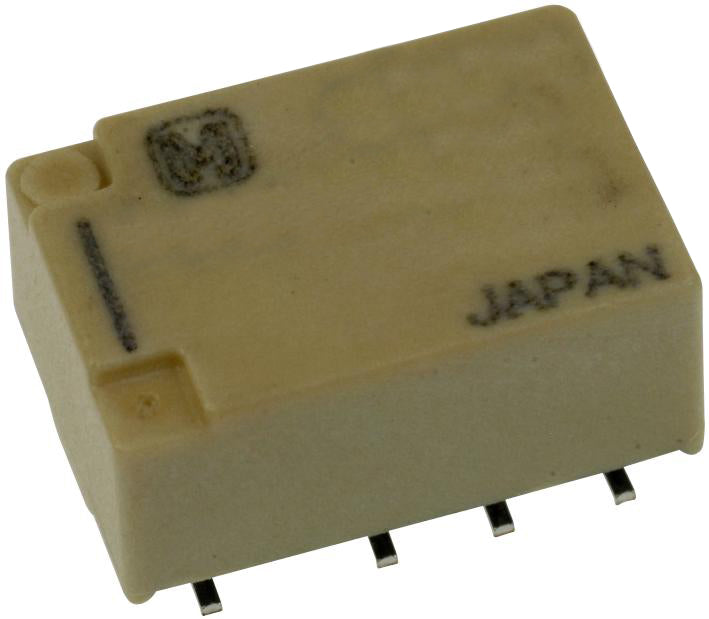

Relè PCB AGQ210A03 - DPDT - Panasonic

Part Number	AGQ210A03
Protective construction	Sealed Type
Terminal shape	Surface-mount terminal
Contact type	Standard type
Contact mechanism	B.B.M
Contact arrangement	2 Form C
Contact material	Stationary contact: AgPd+Au clad Movable contact: AgPd
Operating function	1 coil latching type
Nominal operating power	100mW
Nominal coil voltage	3V DC
Set voltage (at20°C 68°F)	75%V or less of nominal voltage (Initial)
Reset voltage (at20°C 68°F)	75%V or less of nominal voltage (Initial)
Nominal switching capacity (resistive load)	2A 30V DC, 0.3A 125V AC
Max.switching current	2A
Min. switching capacity	10µA 10mV DC
Breakdown voltage (Initial) : Between open contacts	750 Vrms for 1min. (Detection current: 10mA.)
Breakdown voltage (Initial) : Between contact and coil	1,500 Vrms for 1min. (Detection current: 10mA.)
Breakdown voltage (Initial) : Between contact sets	1,000 Vrms for 1min. (Detection current: 10mA.)
Surge breakdown voltage (Initial) : Between open contacts	1,500 V (10 x 160µs) (FCC Part 68)
Surge breakdown voltage (Initial): Between contacts and coil	2,500 V (2 x 10µs) (Telcordia)
Expected life : Mechanical	Min. 5 x 10⁷ (at 180 cpm)
Expected life : Electrical	Min. 5 x 10⁴ (2 A 30 V DC resistive), Min. 10⁵ (1 A 30 V DC resistive), 10⁵ (0.3 A 125 V AC resistive) (at 20 cpm)
Conditions	Ambient temperature: –40 to +85°C –40 to +185°F Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Height (mm)	5.4
Unit weight	Approx. 1 g .035 oz
Surface-mount terminal type	A type
