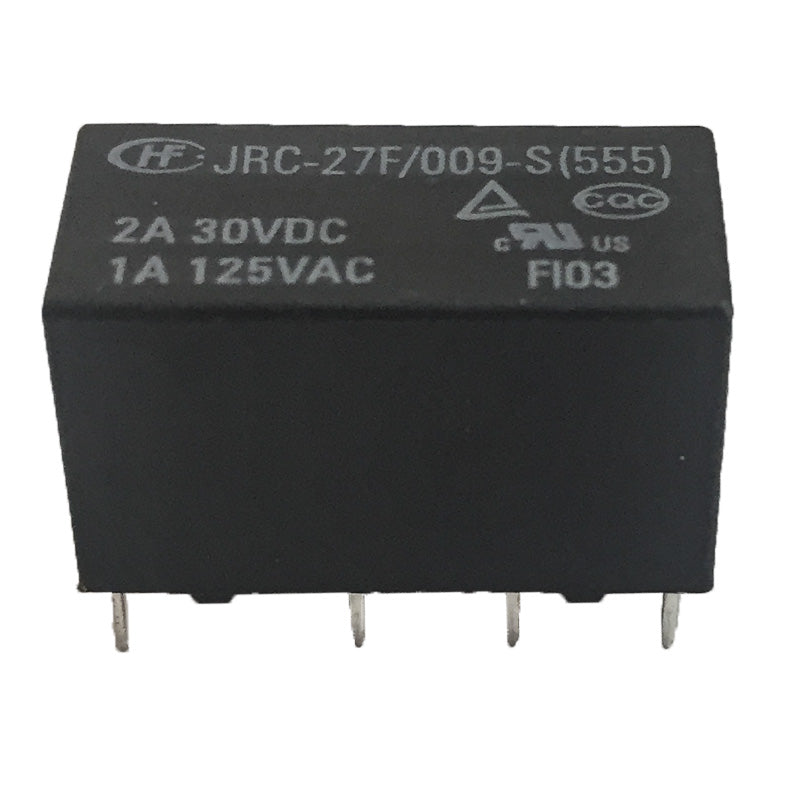

Relè JRC 27F/009 2A 30VDC 1A 125VAC
Contact Form |
2Form C |
|
Insulation Resistance |
1000M? 500VDC |
|||
Initial Contact Resistance |
50m? |
Dielectric Strength Contact to Coil Contact to Contact |
1500Vrms, 1 min 1000Vrms, 1 min 750 Vrms, 1 min ( H type) |
||||
Contact Material |
Silver alloy, Gold clad |
||||||
|
Contact Rating (Resistance) |
2A?30VDC 1A?125VAC |
||||||
Operate Time |
6ms |
||||||
Max. Switching Power |
60W?125VA |
Release Time |
4ms |
||||
Max. Switching Voltage |
120VDC?240VAC |
Bounce Time |
3.5ms |
||||
Max. Switching Current |
2A |
Ambient Temperature |
-40 to +85 °C |
||||
Min. Applicable Load |
10mV 10? A |
humidity |
40 to 85% R.H. |
||||
Mechanical Life |
1× 108 |
Vibration Resistance |
DA:1.5mm, 10 to 55Hz |
||||
Electrical Life |
3× 105 ( at 1A,30VDC) 1× 105 (at 2A,30VDC) |
Shock Resistance |
196 m/s 2 (20g) functional 980 m/s2 (100g) destructive |
||||
COIL DATA |
Max. Solder Temp. Time |
270°C 5 s |
|||||
Coil Nominal Power |
H--High sensitive |
150mW |
Max. Solvent Temp. Time |
80°C 30 s |
|||
S--Sensitive |
200mW |
Terminals |
DIP for PCB |
||||
M--Standard |
360mW |
Construction |
Sealed |
||||
Temperature Rise |
Max 65°C |
Dimensions (mm) |
20.2× 10× 11.5 |
||||
Coil Voltage |
See Table |
Weight |
Approx. 5g |
||||
