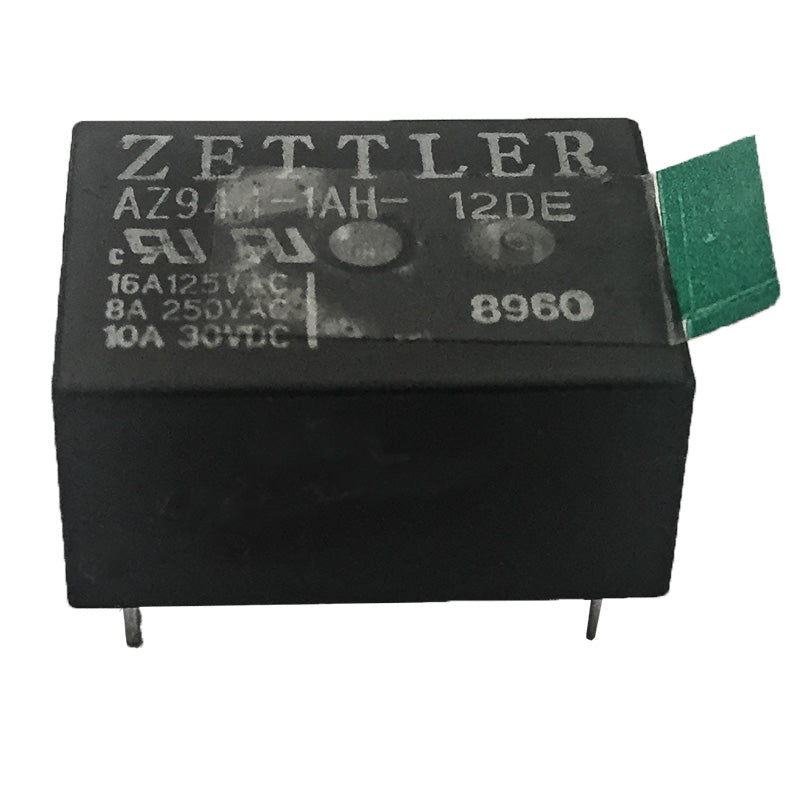

Relè 12V - AZ944 1AH 12DE - ZETTLER

Arrangement

SPST (1 Form A)

SPDT (1 Form C)

Ratings

Resistive load:

Max. switched power: 300 W, 2000 VA (SPST)

150 W, 1250 VA (SPDT)

Max. switched current: 16 A (SPST), 10 A (SPDT)

Max. switched voltage: 250 VAC/125 VDC*

*Note: If switching voltage is greater than 30VDC, special

precautions must be taken. Please contact the factory.

Rated Load

UL, CUR

16

A at

125

VAC, resistive

SPST

8

A at

250

VAC, resistive

10

A at

30

VDC, resistive

¹/4 HP

125

VAC

¹/10 HP

277

VAC

SPDT

10

A at

125

VAC, resistive

5

A at

277

VAC, 30 VDC, resistive

¹/10 HP

277

VAC

Material

Silver cadmium oxide

Resistance

< 50 milliohms initially

(24 V, 1 A voltage drop method)
