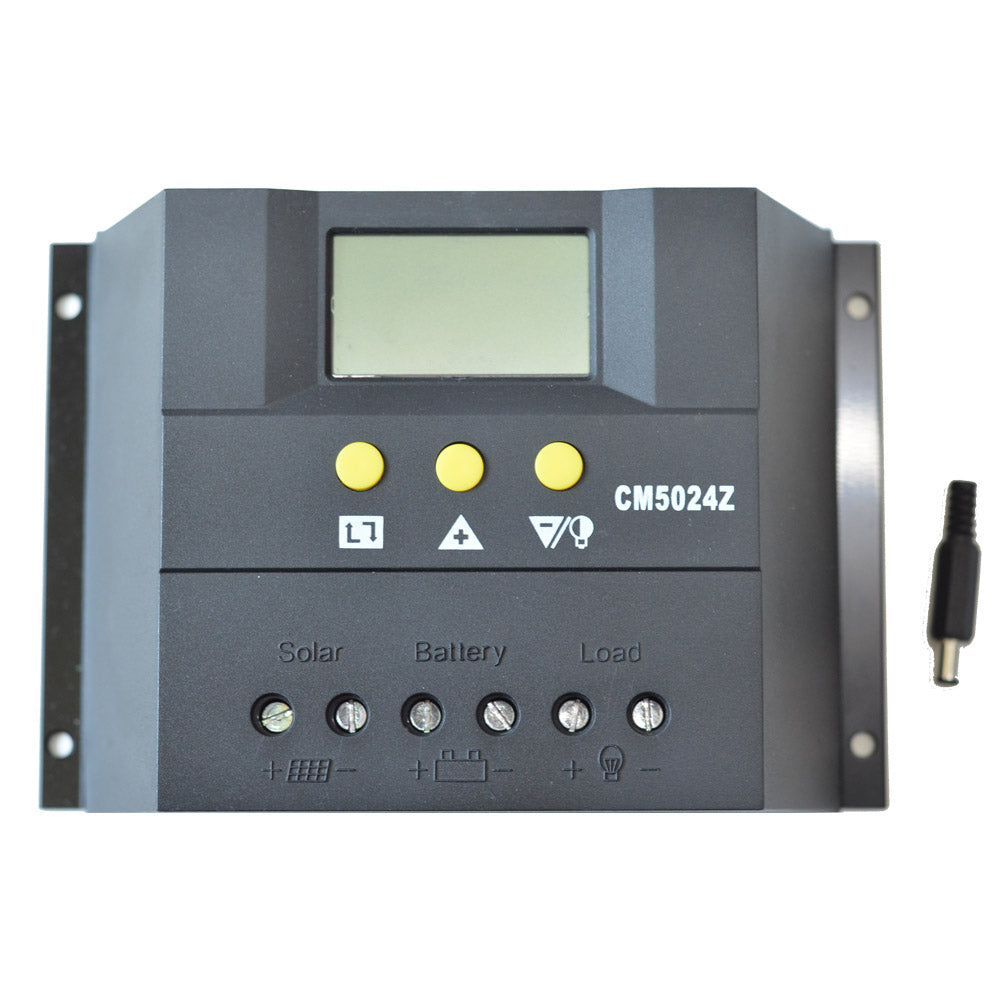

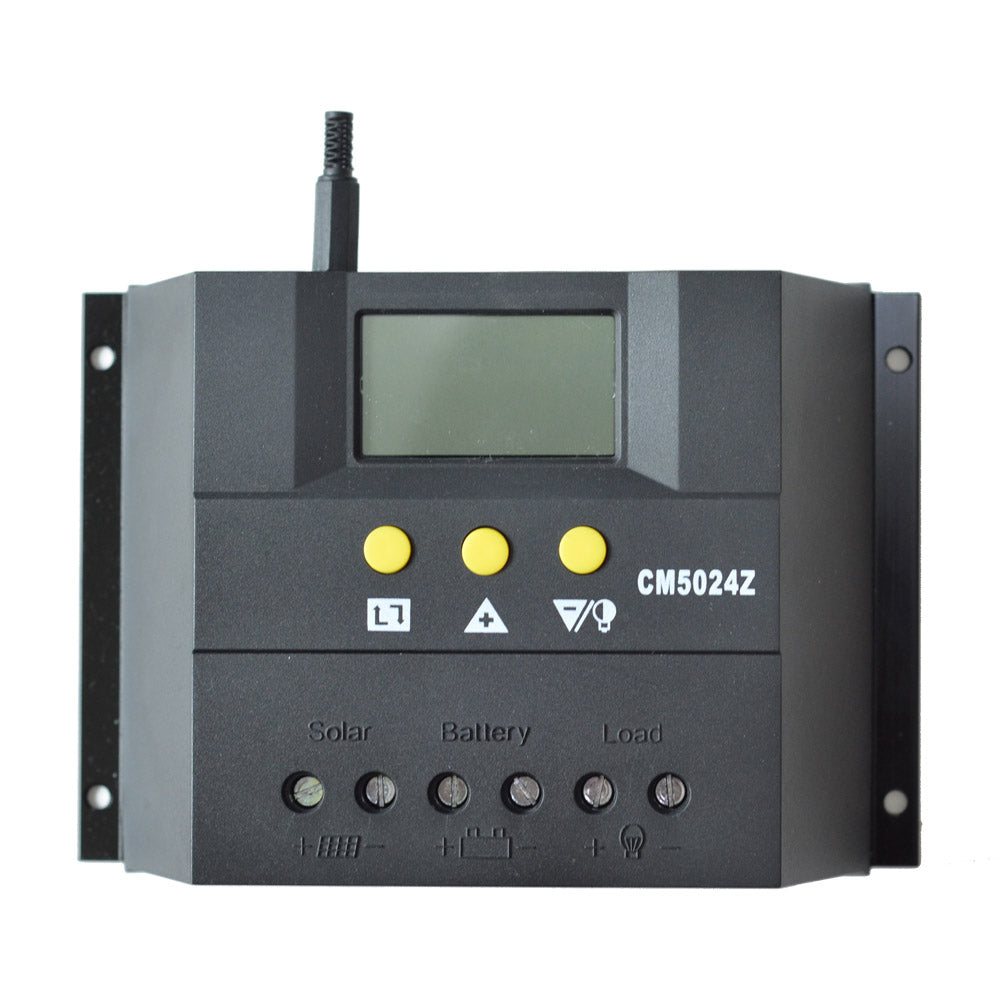

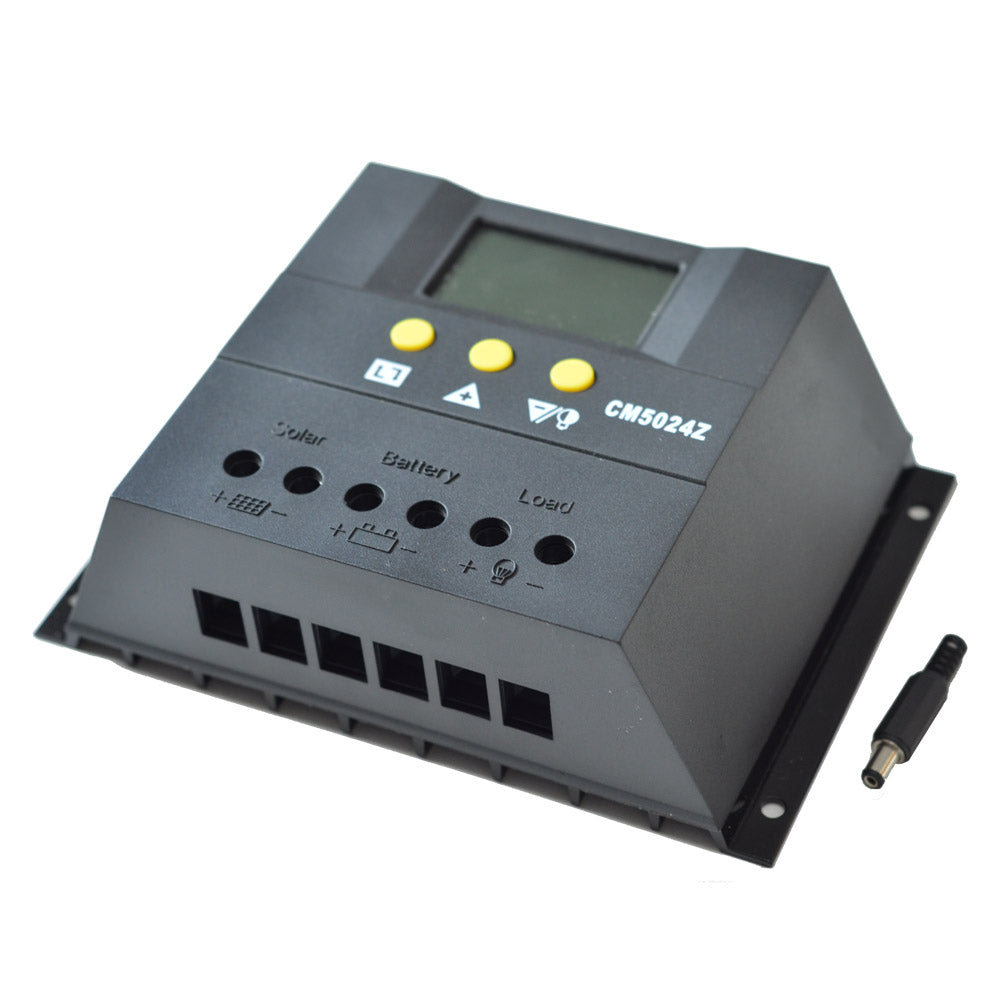

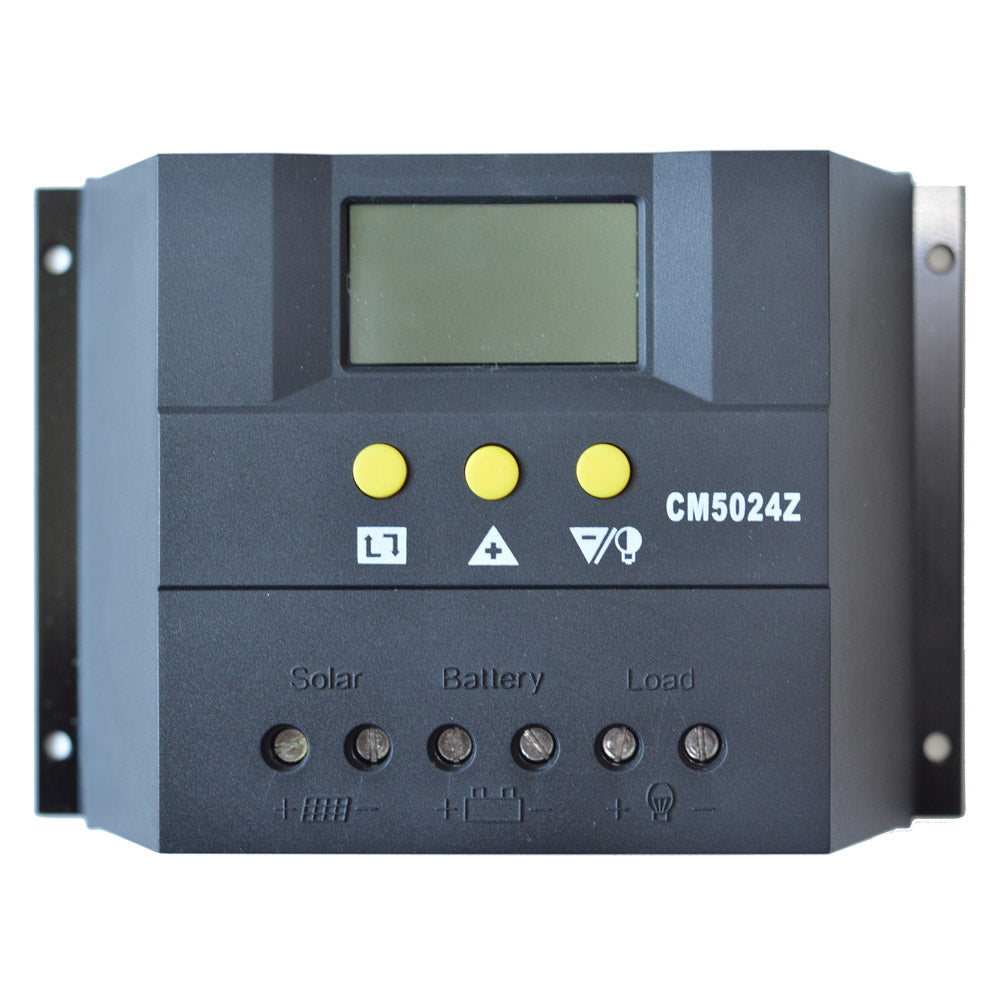

Regolatore di Carica Solare PWM 12/24V 50A Sensore temperatura CM5024Z

Regolatore di carica professionale CM5024Z 50A 12/24V con aletta di raffreddamento in alluminio, schermo LCD con indicazione delle funzioni, tensione di ingresso fino a 50V e tensione di carica batteria con adattamento automatico.

Caratteristiche

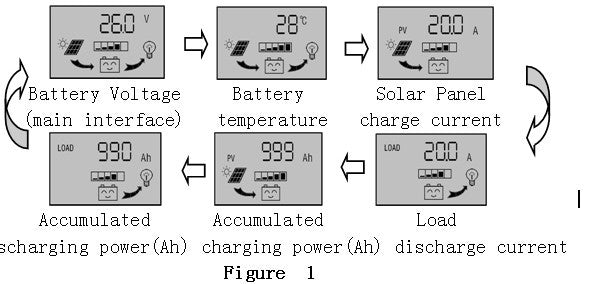

Image of LCD graphic symbol
Simple button operation
Automatic Identification System Voltage level
Intelligent PWM charge mode
Automatic Temperature Compensation
Adjustable charge-discharge control parameters
Settable Operating mode of Load
Overload, Short Circuit Protection
Remote monitoring and control function (custom) Battery reverse-discharge protection
Battery Low Voltage Disconnection (LVD) Battery reverse connection protection
Accumulated function of charge and discharge Ampere hours

Specifiche

Data Model : CM5024Z
Rated Current: 50A
Rated Voltage: 12V/24V
Temperature: -10℃~60℃
Open Circuit: solar panel    ≤50V
Storage temperature: -30℃~70℃
Float Voltage: 13.8V/27.6V
Humidity requirements: ≤90％,no condensation
Low Voltage Disconnection(LVD): 10.7V/21.4V
Size: 130×188×62 mm
Low Voltage Reconnection(LVR)    12.5V/25.0V
No load loss:   ≤30mA
weight: 590g
Loop Voltage Drop: ≤200mV
Charging Mode    PWM mode
Temperature Compensation: -4mV/Cell/℃
Notes    Model suffix “Z” represent automatic identify system voltage level，
“T” represent controller with remote monitoring.

Contenuto della confezione
