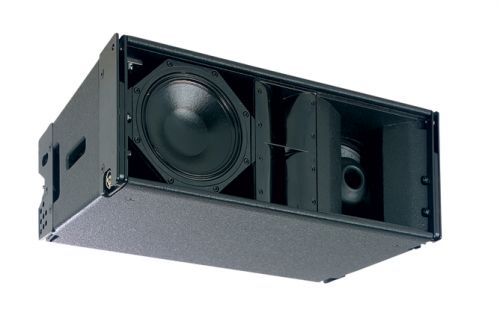

Martin Brother - Long Throw W8LM

The W8LM is a mini line array enclosure designed to bring line array performance benefits to a variety of small and medium scale applications. It meets the need for a versatile, scalable system that can be flown or ground stacked for corporate events, theatres and indoor venues. It is also suitable as a delay system for large scale outdoor sound reinforcement.

Following the constant directivity horn design philosophy of the W8L Longbow and the W8LC, the W8LM is a three-way system that combines line array principles with innovative horn loading techniques to produce a next generation, small line array with maximum dynamic impact.

TYPE	Three-way, active/passive, mini line array element
FREQUENCY RESPONSE (5)	60Hz-18kHz ± 3dB
DRIVERS: LF + MF Section	8" (200mm)/2" (50mm) voice coil, reflex-loaded direct radiator 8" (200mm)/2" (50mm) voice coil, neodymium driver, front horn loaded, rear reflex loaded
DRIVERS: HF Section	2 x 1" (25mm) exit HF compression drivers, horn loaded
RATED POWER (2)	LF + MF: 400W AES, 1600W peak HF: 75W AES, 300W peak Passive: 400W AES, 1600W peak
RECOMMENDED AMPLIFIER	MA5.2K
SENSITIVITY (6)	LF + MF: 100dB HF: 106dB FR: 99dB rising to 105dB at HF
MAXIMUM SPL (calculated @ 1m)	LF + MF: 126dB continuous, 132dB peak HF: 125dB continuous, 131dB peak Passive: 125dB continuous, 131dB peak
NOMINAL IMPEDANCE	LF + MF: 12 ohms HF: 12 ohms FR: 12 ohms
DISPERSION (-6dB)	100º horizontal (down to 800Hz), 7.5º vertical 120º horizontal (down to 700Hz) @ -10dB
CROSSOVER	300Hz passive, 2.2kHz active or passive
ENCLOSURE	Vertical trapezoid with 3.75º wall angle, multi- laminate birch ply construction
FINISH	Textured black paint
PROTECTIVE GRILLE	Black perforated steel
CONNECTORS	2 x Neutrik NL4
DIMENSIONS	(W) 620mm x (H) 243mm x (D) 400mm (W) 24.4ins x (H) 9.6ins x (D) 15.8ins
WEIGHT (including rigging hardware)	29kg (64lbs)
