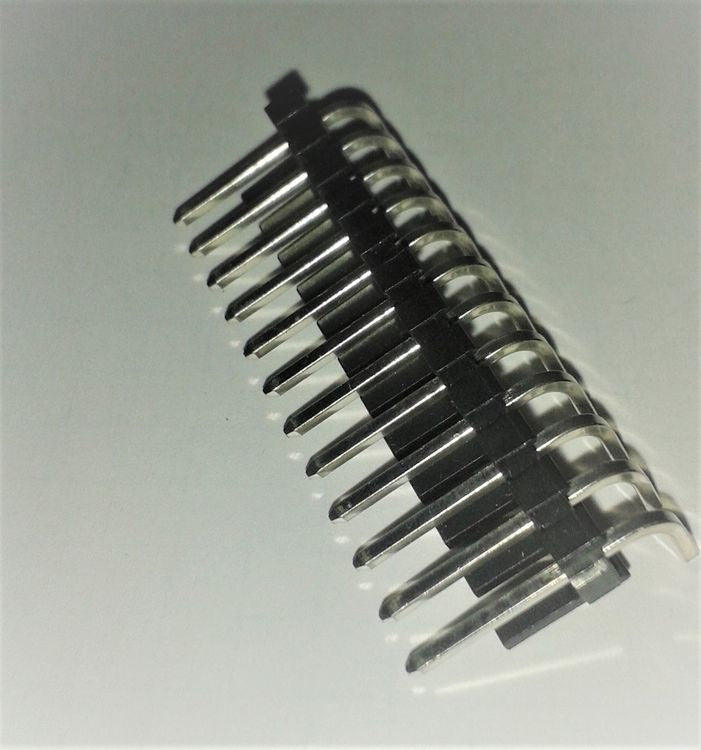

Connettore Molex 12 poli - confezione 10 pezzi

Connettore Molex 12 poli - confezione 10 pezzi

Marca: MOLEX

P/N: 0026481124

Agency Certification

CSA LR19980
UL E29179
General Product Family PCB Headers
Series 41682
Application Power, Wire-to-Board
Application Tooling Part Link 011201230
Product Name KK®
Physical
Breakaway Yes
Circuits (Loaded) 12
Circuits (maximum) 12
Color - Resin Black
Durability (mating cycles max) 25
Flammability 94V-0
Glow-Wire Compliant No
Lock to Mating Part None
Material - Metal Brass
Material - Plating Mating Tin
Material - Resin Polyester
Number of Rows 1
Orientation Right Angle
PC Tail Length 5.26mm (.207")
PCB Locator No
PCB Retention None
PCB Thickness - Recommended 1.60mm (.063")
Packaging Type Bag
Pitch - Mating Interface 3.96mm (.156")
Pitch - Termination Interface 3.96mm (.156")
Polarized to Mating Part Yes
Polarized to PCB Yes
Shrouded Partial Stackable No
Temperature Range - Operating 0°C to +75°C
Termination Interface: Style Through Hole
Electrical Current - Maximum per Contact 7A Voltage - Maximum 250V
Solder Process Data Lead-free Process Capability Wave Capable (TH only)
Material Info Old Part Number A-41682-A12A102
