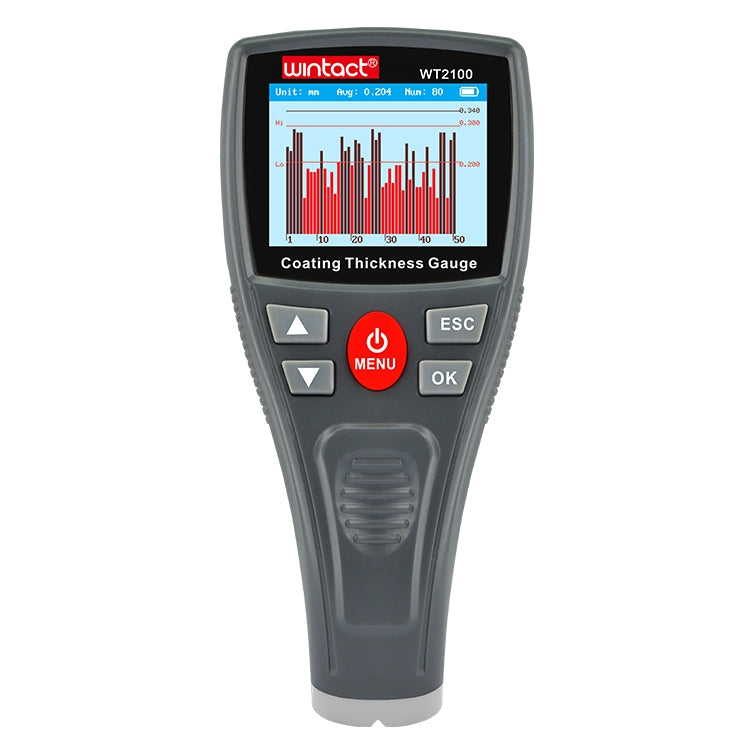

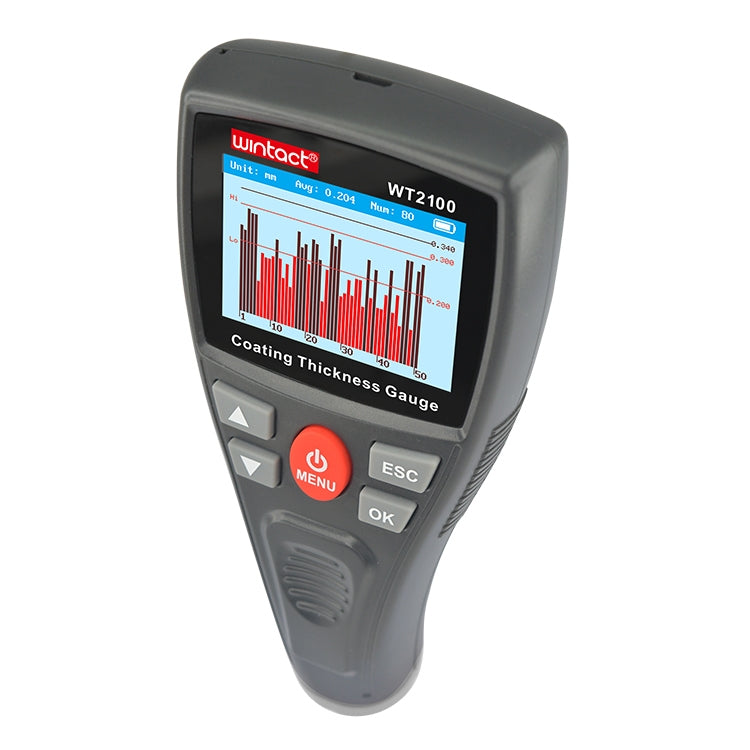

Wintact WT2100 Color Display Coating Thickness Gauge, WT2100

1. Quickly measure the thickness of the paint coating, with a wider measuring range: 0-1800UM / 0-70.9IL / 0-1.8mm, menu operation.
2.Measure the thickness of the non-magnetic coating on the surface of the magnetic metal substrate. The symbol of the magnetic substrate is FE.
3. Automatic power-off measurement, metric/imperial/mil/mm unit can be switched.
4. Two measurement methods: single measurement and continuous measurement. Three calibration modes: basic calibration, offset and zero.
5. With charging protection, multi-interface display and screen brightness selection.

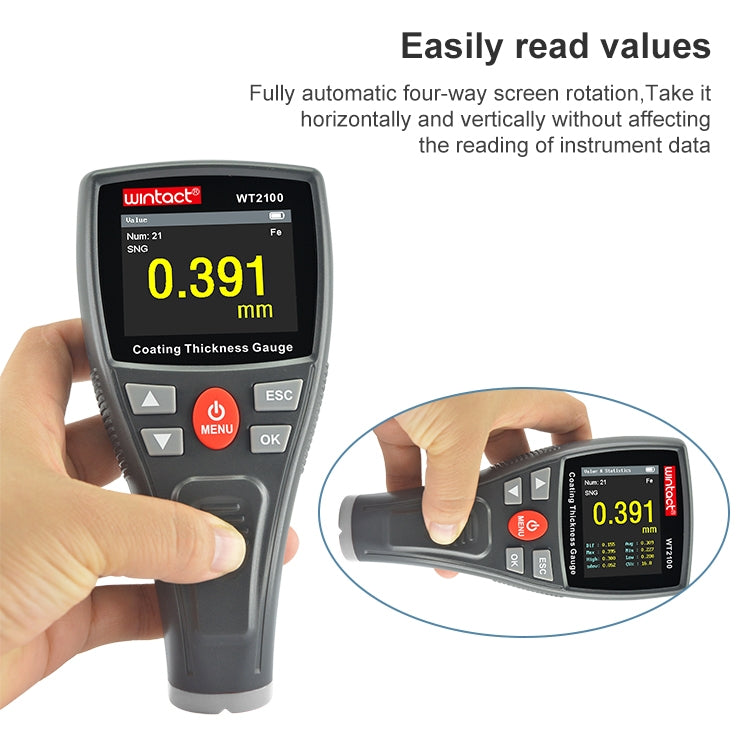

6. The 360 ​​degree screen rotation can easily read the data, and the V-groove on the probe can be used for small cylindrical parts.
7. High definition large color LCD display, which can store 15 data and bright backlight, make it easy to read the results clearly.
8. Simplified portable design, special hand anti-slip treatment, light weight, small size, suitable for the palm of your hand.

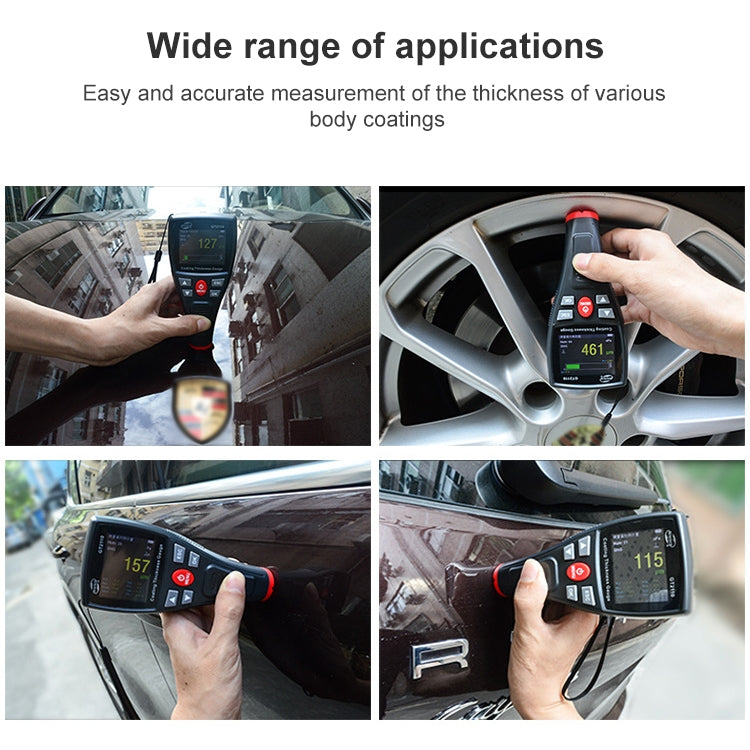

9. It is widely used in manufacturing, metal processing, chemical industry and raw material inspection, and can work stably in laboratories, workshops and outdoors.
10. It can quickly, non-destructively and accurately measure the thickness of non-magnetic coatings (such as paint, electroplating, film, etc.) on magnetic metal substrates
11. Material: ABS plastic
12. Unit: micron, mil, millimeter
13. Lower limit diameter of magnetic metal substrate: 12mm
14. Lower limit thickness of magnetic metal substrate: 0.5mm
15. The bottom radius of curvature of the magnetic convex substrate: 2mm
16. The bottom radius of curvature of the magnetic concave substrate: 11mm
17. Dimensions: 70x35x150mm
18. Item weight: 100g
