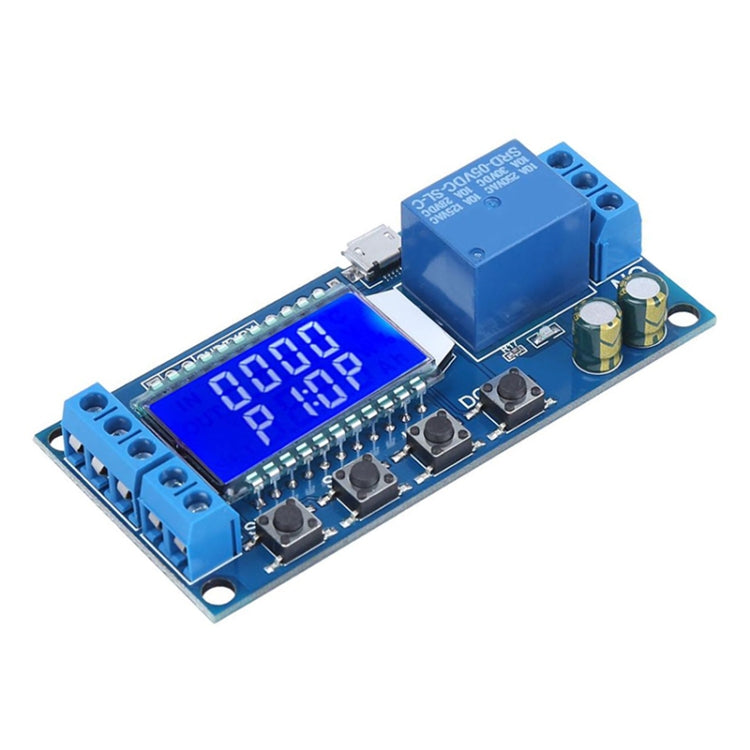

XY-LJ02 6-30V Micro USB Digital LCD Display Delay Timer Relay Module Control
€3,12
Disponibile
Characteristics 1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical. 2. Support high and low level trigger, switch control, suitable for most occasions. 3. The...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Characteristics
1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical.
2. Support high and low level trigger, switch control, suitable for most occasions.
3. The wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use.
4. Support UART data upload and parameter setting.
5. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn.
6. Added sleep mode. After enable, if there is no operation within 5 minutes, the LCD backlight will automatically turn off; any key will wake up.
7. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.
8. All setting parameters are automatically saved after power off.
Specifications
1. Working voltage: 6-30V, support micro USB 5.0V power supply
2. Trigger signal source: high level trigger (3.0V ~ 24V), low level trigger (0.0V ~ 0.2V), switch control (passive switch).
3. Output capacity: can control equipment within DC 30v 5A or AC 220v 5A
4. Quiescent current: 15 mA Working current: 50 mA
5. Working temperature: -40a??85 degrees Celsius
6. With optocoupler isolation, improve anti-interference ability, industrial-grade circuit board, the set parameters will be remembered forever after power off
7. Size: 8.0x3.8x1.9cm
8. Weight: about 36g
1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical.
2. Support high and low level trigger, switch control, suitable for most occasions.
3. The wide voltage power supply (6~30V) supports micro USB 5.0V power supply, which is very convenient to use.
4. Support UART data upload and parameter setting.
5. There is a key emergency stop function (STOP key), with reverse connection protection, reverse connection will not burn.
6. Added sleep mode. After enable, if there is no operation within 5 minutes, the LCD backlight will automatically turn off; any key will wake up.
7. Different OP, CL, LOP parameters can be set, these parameters are independent of each other and saved separately.
8. All setting parameters are automatically saved after power off.
Specifications
1. Working voltage: 6-30V, support micro USB 5.0V power supply
2. Trigger signal source: high level trigger (3.0V ~ 24V), low level trigger (0.0V ~ 0.2V), switch control (passive switch).
3. Output capacity: can control equipment within DC 30v 5A or AC 220v 5A
4. Quiescent current: 15 mA Working current: 50 mA
5. Working temperature: -40a??85 degrees Celsius
6. With optocoupler isolation, improve anti-interference ability, industrial-grade circuit board, the set parameters will be remembered forever after power off
7. Size: 8.0x3.8x1.9cm
8. Weight: about 36g
