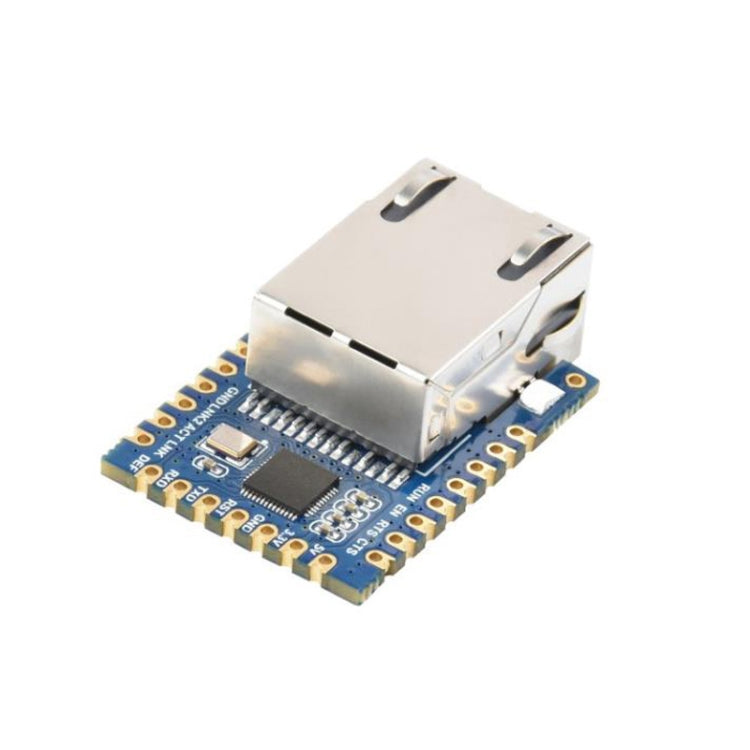

Waveshare UART TO ETH (B) TTL UART to mini Ethernet module, UART TO ETH (B)
€12,88
Disponibile
1. Basic function: Realize the bidirectional transparent transmission function of serial port and Ethernet interface 2. Ethernet: Common network port 3. Insulation protection: without insulation 4. Serial port: TTL 5. Power supply: DC 3.3V/5V 6....
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Basic function: Realize the bidirectional transparent transmission function of serial port and Ethernet interface
2. Ethernet: Common network port
3. Insulation protection: without insulation
4. Serial port: TTL
5. Power supply: DC 3.3V/5V
6. Power supply method: pin row/pad
7. Application scenario: It can be used as serial server, Modbus gateway, MQTT gateway, suitable for data acquisition, IoT gateway, IoT security and smart meter monitoring, etc.
8. Size: about 34 x 23 x 11.5mm
Serial port parameters:
1. Transmission speed: 300-115200 bps
2. Data bits: 5-9 bits
3. Flow control: with flow control
Software:
1. Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
2. Configuration mode: Host computer configuration, WEB browser, device management function library
3. Communication mode: TCP/IP direct communication, virtual serial port mode
4. Data transmission mode: TCP server, TCP client, UDP group, UDP
5. Modbus Gateway: Modbus TCP to RTU
6. Other functions: Custom heartbeat packages/logging packages, custom web pages, etc.
Characteristics:
1. Compact size, easy integration, low power consumption
2. Can be rapidly integrated into industrial, IoT and security applications and other product areas
3. Designed with stamp hole sinking process, highly integrated package, supports different ways to embed in various product applications
4. Support a variety of communication modes, support TCP server / TCP client / UDP multicast / UDP mode
5. Support Modbus gateway, suitable for Modbus network upgrade, can cooperate with 3D force control modal components
6. Customized heartbeat package and recording package, convenient for device communication and identification with cloud
7. Support NTP protocol, get network time for serial output or protocol content upload
8. Support web page and higher computer configuration
9. Pin out control pins, easy to embed or connect to user devices and various MCU master control devices
10. With a variety of indicators, it is easy to view the working status of the module
2. Ethernet: Common network port
3. Insulation protection: without insulation
4. Serial port: TTL
5. Power supply: DC 3.3V/5V
6. Power supply method: pin row/pad
7. Application scenario: It can be used as serial server, Modbus gateway, MQTT gateway, suitable for data acquisition, IoT gateway, IoT security and smart meter monitoring, etc.
8. Size: about 34 x 23 x 11.5mm
Serial port parameters:
1. Transmission speed: 300-115200 bps
2. Data bits: 5-9 bits
3. Flow control: with flow control
Software:
1. Protocol: ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
2. Configuration mode: Host computer configuration, WEB browser, device management function library
3. Communication mode: TCP/IP direct communication, virtual serial port mode
4. Data transmission mode: TCP server, TCP client, UDP group, UDP
5. Modbus Gateway: Modbus TCP to RTU
6. Other functions: Custom heartbeat packages/logging packages, custom web pages, etc.
Characteristics:
1. Compact size, easy integration, low power consumption
2. Can be rapidly integrated into industrial, IoT and security applications and other product areas
3. Designed with stamp hole sinking process, highly integrated package, supports different ways to embed in various product applications
4. Support a variety of communication modes, support TCP server / TCP client / UDP multicast / UDP mode
5. Support Modbus gateway, suitable for Modbus network upgrade, can cooperate with 3D force control modal components
6. Customized heartbeat package and recording package, convenient for device communication and identification with cloud
7. Support NTP protocol, get network time for serial output or protocol content upload
8. Support web page and higher computer configuration
9. Pin out control pins, easy to embed or connect to user devices and various MCU master control devices
10. With a variety of indicators, it is easy to view the working status of the module
