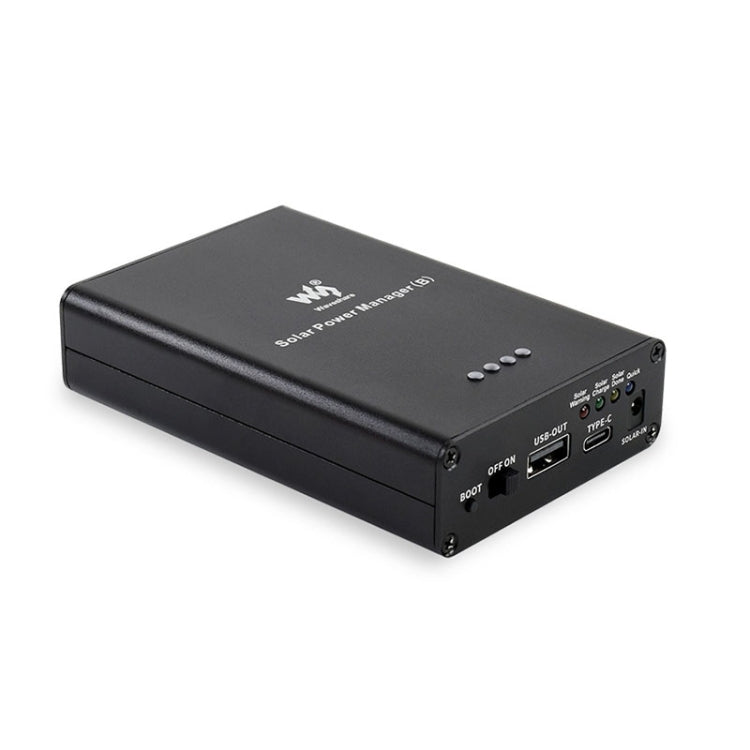

Waveshare Solar Power Manager, Built-in 10000mAh Li-Po Battery, Support 6V~24V Solar Panels, 19799
€26,05
Disponibile
Features B> The Solar Power Manager (B) is compatible with general 6V~24V solar panels. It can charge 3.7V rechargeable Li-PO battery through solar panel or USB Type-C connection and provides 5V/3A regulated output (with multi-protocol...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Features B>
The Solar Power Manager (B) is compatible with general 6V~24V solar panels. It can charge 3.7V rechargeable Li-PO battery through solar panel or USB Type-C connection and provides 5V/3A regulated output (with multi-protocol support including PD/QC/FCP/PE/SFCP).
The module is equipped with MPPT (maximum power point tracking) and multi-protection circuits, so it can continue to work with high efficiency, stability and safety. It is suitable for solar energy iot, low power and other environmental protection projects.
1. Support MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of solar panel
2. Flexible battery charging: by solar panel or USB Type-C adapter
3. Compatible with 6V~24V solar panels, DC-002 Jack input or screw terminal input
4. Onboard MPPT set switch, select the closed level to the input level to improve charging efficiency
5. On-board aluminum electrolytic capacitor and SMD ceramic capacitor, reducing ripple, stable performance
6. PH2.0 battery connector, with built-in 10000mAh 3.7V rechargeable LI-PO battery
7. Multiple LED indicators, to monitor the status of the solar panel and battery
8. Multi-protection circuits: Over-load / Over-discharge / Reverse-proof / Over-current / Over-current, stable and safe to use
The Solar Power Manager (B) is compatible with general 6V~24V solar panels. It can charge 3.7V rechargeable Li-PO battery through solar panel or USB Type-C connection and provides 5V/3A regulated output (with multi-protocol support including PD/QC/FCP/PE/SFCP).
The module is equipped with MPPT (maximum power point tracking) and multi-protection circuits, so it can continue to work with high efficiency, stability and safety. It is suitable for solar energy iot, low power and other environmental protection projects.
1. Support MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of solar panel
2. Flexible battery charging: by solar panel or USB Type-C adapter
3. Compatible with 6V~24V solar panels, DC-002 Jack input or screw terminal input
4. Onboard MPPT set switch, select the closed level to the input level to improve charging efficiency
5. On-board aluminum electrolytic capacitor and SMD ceramic capacitor, reducing ripple, stable performance
6. PH2.0 battery connector, with built-in 10000mAh 3.7V rechargeable LI-PO battery
7. Multiple LED indicators, to monitor the status of the solar panel and battery
8. Multi-protection circuits: Over-load / Over-discharge / Reverse-proof / Over-current / Over-current, stable and safe to use
Size:
| package weight |
|
