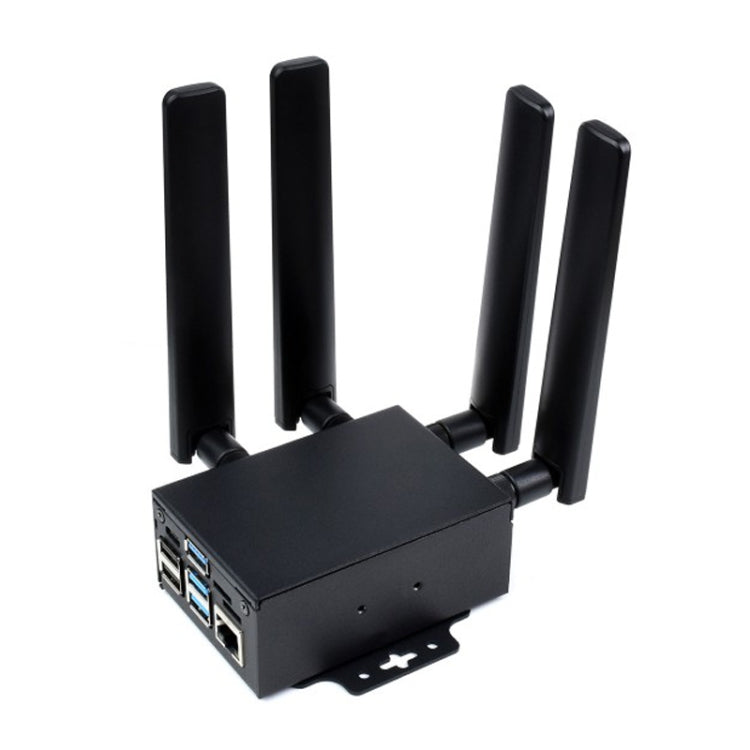

Waveshare SIM8262E-M2/SIM8202G-M2 5G Multiband HAT for Raspberry Pi, Multi-band
€291,41
Disponibile
1. Based on Qualcomm platform, supports 5G NSA and SA networks, supports multi-mode and multi-band 2. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo and QZSS 3. OS Support: Windows/Linux/Android 4. USB 3.1 port (compatible with...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Based on Qualcomm platform, supports 5G NSA and SA networks, supports multi-mode and multi-band
2. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo and QZSS
3. OS Support: Windows/Linux/Android
4. USB 3.1 port (compatible with USB 2.0) for connecting to PC, Raspberry Pi or Jetson Nano host board to enable high-speed 5G communication
5. Standard M.2 B KEY slot, compatible with various 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series
6. Built-in UART, PWR and RST control pins, built-in voltage level translator, enabled via DIP switch, for use with hosts such as Raspberry Pi or Arduino
7. Built-in USB-C connector, enabled by switch, for connecting autonomous power supply for the module, enables multiple loads, stable and flexible power supply
8. Built-in power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the working status
9. 4 SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
10. 2 SIM card slots, single standby for dual card, switchable by AT command
11. Built-in audio jack and audio decoder, enables audio operation such as making a phone call
12. High efficiency power circuit, output current up to 3A
2. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo and QZSS
3. OS Support: Windows/Linux/Android
4. USB 3.1 port (compatible with USB 2.0) for connecting to PC, Raspberry Pi or Jetson Nano host board to enable high-speed 5G communication
5. Standard M.2 B KEY slot, compatible with various 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series
6. Built-in UART, PWR and RST control pins, built-in voltage level translator, enabled via DIP switch, for use with hosts such as Raspberry Pi or Arduino
7. Built-in USB-C connector, enabled by switch, for connecting autonomous power supply for the module, enables multiple loads, stable and flexible power supply
8. Built-in power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the working status
9. 4 SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
10. 2 SIM card slots, single standby for dual card, switchable by AT command
11. Built-in audio jack and audio decoder, enables audio operation such as making a phone call
12. High efficiency power circuit, output current up to 3A
