- Waveshare SIM7600G-H M.2 4G HAT LTE CAT4 High Speed GNSS Global Band Module for Raspberry Pi, SIM7600G-H M.2 4G HAT Waveshare SIM7600G-H M.2 4G HAT LTE CAT4 High Speed GNSS Global Band Module for Raspberry Pi, SIM7600G-H M.2 4G HAT
% €-85,46

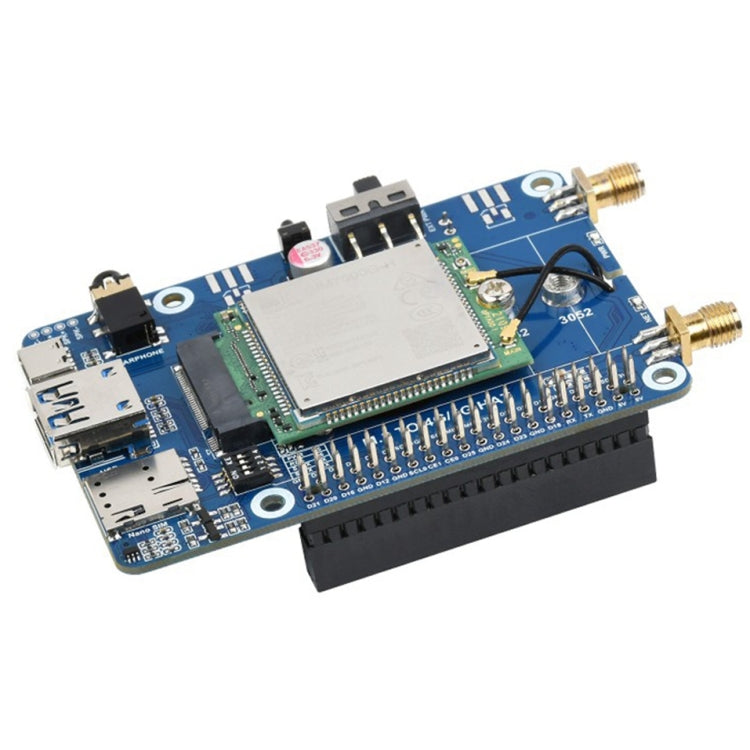

Waveshare SIM7600G-H M.2 4G HAT LTE CAT4 High Speed GNSS Global Band Module for Raspberry Pi, SIM7600G-H M.2 4G HAT
Product SKU: DIY0254
Available:
Only 999999 items in stock
999999 items in stock
In stock
Pre-order
Out of stock
€85,46
- Description
Functionality
1. This is a Raspberry PI 4G/3G/2G communication hat with GNSS positioning and high-speed LTE Cat4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high-speed networking, cloud platform communication, phone calls/SMS and global GNSS positioning functions.
2. Support dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S) and so on
3. GNSS positioning: GPS, BEIDOU, GLONASS, GALILEO, QZSS, LBS base station
4. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi or Jetson Nano Host Board to enable high-speed 4G communication
5. UART control pins, PWR and RST, built-in voltage level translator, enabled via DIP switch, for use with hosts such as Raspberry Pi or Arduino
7. Onboard switch-enabled USB-C connector for connecting the module's standalone power supply enables multiple loads, flexible AMD stable AMD power supply
8. On-board power supply Switch Off Switch, reset button and LED indicator, easy to turn on/off the module or monitor the working status
9. 4x SMA antenna interfaces reserved for iPEX, with 2x pre-soldered connectors for easily using antennas, allows you to change the position of the SMA antenna
10. Onboard audio jack and audio decoder, enables audio operation like making phone call
11. High efficiency power circuit, up to 3A output current
Specifications
Frequency band:
1. LTE CAT-4: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
2. LTE-TDD: B34, B38, B39, B40, B41
3. 3G: UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
4. 2G: GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS:
1. Satellite systems: GPS, Beidou, Glonass, Galileo, QZSS
2. Receiver type:
- 16-channel
- C/A Code
3. Sensitivity:
--159 dbm (GPS) / -158 dbm (glonass) / tbd (beidou)
- Cold start: -148 dbm
4. Time-to-First-Fix (opening):
- Cold start: less than 35 seconds
- Starts hot: less than 1s
SMS and audio
1. SMS:
- Supported types: MT, MO, CB, text, PDU
- Storage: USIM Card and Me (default)
2. Audio function:
- Support echo cancellation
- Support noise reduction
List of packages
1. M.2 to 4G/5G HAT x 1
2. SIM7600G-HM.2 x 1
3. Antenna 2pcs x 1
4. IPEX adapter cable 2pcs x 1
5. 2**20pin Pin Header x 1
6. Passive GPS antenna x 1
7. USB3.0 Dual Plug Cable X 1
8. USB3.0 adapter x 1
9. USB2.0 adapter x 1
10. SMA protective cap 2pcs x 1
11. Screw pack x 1
1. This is a Raspberry PI 4G/3G/2G communication hat with GNSS positioning and high-speed LTE Cat4 global band connection. By connecting it to PC, Raspberry Pi or Jetson Nano host boards, it is easy to enable 4G high-speed networking, cloud platform communication, phone calls/SMS and global GNSS positioning functions.
2. Support dial-up, phone call, SMS, TCP, UDP, MQTT, HTTP(S), FTP(S) and so on
3. GNSS positioning: GPS, BEIDOU, GLONASS, GALILEO, QZSS, LBS base station
4. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi or Jetson Nano Host Board to enable high-speed 4G communication
5. UART control pins, PWR and RST, built-in voltage level translator, enabled via DIP switch, for use with hosts such as Raspberry Pi or Arduino
7. Onboard switch-enabled USB-C connector for connecting the module's standalone power supply enables multiple loads, flexible AMD stable AMD power supply
8. On-board power supply Switch Off Switch, reset button and LED indicator, easy to turn on/off the module or monitor the working status
9. 4x SMA antenna interfaces reserved for iPEX, with 2x pre-soldered connectors for easily using antennas, allows you to change the position of the SMA antenna
10. Onboard audio jack and audio decoder, enables audio operation like making phone call
11. High efficiency power circuit, up to 3A output current
Specifications
Frequency band:
1. LTE CAT-4: LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
2. LTE-TDD: B34, B38, B39, B40, B41
3. 3G: UMTS/HSDPA/HSPA+: B1, B2, B4, B5, B6, B8, B19
4. 2G: GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz
GNSS:
1. Satellite systems: GPS, Beidou, Glonass, Galileo, QZSS
2. Receiver type:
- 16-channel
- C/A Code
3. Sensitivity:
--159 dbm (GPS) / -158 dbm (glonass) / tbd (beidou)
- Cold start: -148 dbm
4. Time-to-First-Fix (opening):
- Cold start: less than 35 seconds
- Starts hot: less than 1s
SMS and audio
1. SMS:
- Supported types: MT, MO, CB, text, PDU
- Storage: USIM Card and Me (default)
2. Audio function:
- Support echo cancellation
- Support noise reduction
List of packages
1. M.2 to 4G/5G HAT x 1
2. SIM7600G-HM.2 x 1
3. Antenna 2pcs x 1
4. IPEX adapter cable 2pcs x 1
5. 2**20pin Pin Header x 1
6. Passive GPS antenna x 1
7. USB3.0 Dual Plug Cable X 1
8. USB3.0 adapter x 1
9. USB2.0 adapter x 1
10. SMA protective cap 2pcs x 1
11. Screw pack x 1
Size:
package weight |
|
