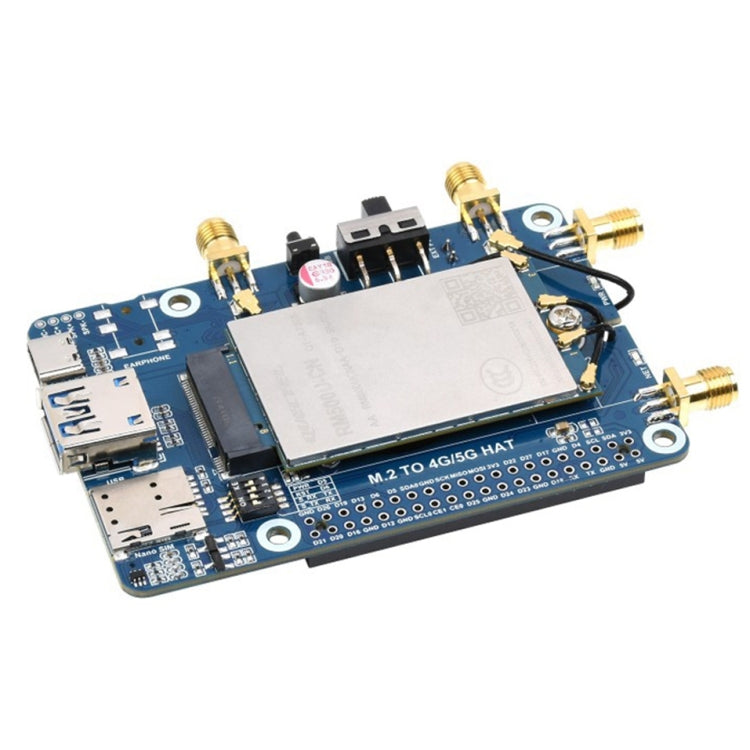

Waveshare RM500U-CN 5G HAT Quad Antenna LTE-A Multi-Band Module Board for Raspberry Pi, RM500U-CN 5G HAT
€184,83
Disponibile
Functionality 1. Comes with RM500U-CN core module, supports 5G and LTE-A multi-network types, supports 5G NSA and SA network 2. Integrate extensive network protocols, with multiple drivers and software support, compatible with different operating system...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Functionality
1. Comes with RM500U-CN core module, supports 5G and LTE-A multi-network types, supports 5G NSA and SA network
2. Integrate extensive network protocols, with multiple drivers and software support, compatible with different operating system including Windows / Linux / Android
3. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi or Jetson Nano Host Board to enable high-speed 5G communication
4. Standard M.2 B key slot, compatible with various 5G modules: RM500U-CN / RM500Q-CN / RM500Q-GL series
5. UART control pins, PWR and RST, built-in voltage level translator, enabled via DIP switch, for use with hosts such as Raspberry Pi or Arduino
6. Onboard switch-enabled USB-C connector for connecting the module's standalone power supply enables multiple loads, flexible AMD stable AMD power supply
7. On-board power supply Switch Off Switch, reset button and LED indicator, easy to turn on/off the module or monitor the working status
8. 2X SIM card slot, SINGLE STATE TWO CARDS, SPATMERABLE AT
9. High efficiency power circuit, up to 3A output current
Specifications
Frequency band:
1. 5G:
- 5G NR: 3GPP Release 15 NSA/SA Operation, Sub-6 GHz
- 5G NR NSA: N41, N78, N79
- 5G NR SA: N1, N28, N41, N77, N78, N79
- Downlink: 4 x 4 MIMO N1, N41, N77, N78, N79
2. LTE:
- LTE Category: Downlink Cat 12, Uplink Cat 13
- LTE-FDD: B1, B2, B3, B5, B7, B8, B20, B28
- LTE-TDD: B34, B38, B39, B40, B41
- Downlink 2 x 2 MIMO: B1, B2, B3, B5, B7, B8, B20, B28, B34, B38, B39, B40, B41
3. UMTS: WCDMA: B1, B2, B5, B8
Data Rate:
1. 5G SA sub-6: downlink 2Gbps; Uplink 1 Gbps
2. 5G NSA SUB-6: downlink 2.2Gbps; Uplink 575 Mbps
3. LTE: downlink 600Mbps; uplink 150Mbps
4. UMTS: downlink 42.2Mbps; uplink 11Mbps
Other:
1. Operating temperature: -30 degrees C ~ +75 degrees C
2. Extension temperature: -40 degrees C ~ +85 degrees C
3. Module size: 30.0 x 52.0 x 2.3 (mm)
4. Module weight: 8.9 (G)
List of packages
1. M.2 to 4G/5G HAT x 1
2. RM500U-CN X 1
3. Antenna 4pcs x 1
4. IPEX adapter cable 4pcs x 1
5. 2**20pin Pin Header x 1
6. 5V 3A Type-C Power Adapter x 1
7. USB3.0 Dual Plug Cable X 1
8. USB3.0 adapter x 1
9. USB2.0 adapter x 1
10. SMA protective cap 4pcs x 1
11. Screw pack x 1
1. Comes with RM500U-CN core module, supports 5G and LTE-A multi-network types, supports 5G NSA and SA network
2. Integrate extensive network protocols, with multiple drivers and software support, compatible with different operating system including Windows / Linux / Android
3. USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi or Jetson Nano Host Board to enable high-speed 5G communication
4. Standard M.2 B key slot, compatible with various 5G modules: RM500U-CN / RM500Q-CN / RM500Q-GL series
5. UART control pins, PWR and RST, built-in voltage level translator, enabled via DIP switch, for use with hosts such as Raspberry Pi or Arduino
6. Onboard switch-enabled USB-C connector for connecting the module's standalone power supply enables multiple loads, flexible AMD stable AMD power supply
7. On-board power supply Switch Off Switch, reset button and LED indicator, easy to turn on/off the module or monitor the working status
8. 2X SIM card slot, SINGLE STATE TWO CARDS, SPATMERABLE AT
9. High efficiency power circuit, up to 3A output current
Specifications
Frequency band:
1. 5G:
- 5G NR: 3GPP Release 15 NSA/SA Operation, Sub-6 GHz
- 5G NR NSA: N41, N78, N79
- 5G NR SA: N1, N28, N41, N77, N78, N79
- Downlink: 4 x 4 MIMO N1, N41, N77, N78, N79
2. LTE:
- LTE Category: Downlink Cat 12, Uplink Cat 13
- LTE-FDD: B1, B2, B3, B5, B7, B8, B20, B28
- LTE-TDD: B34, B38, B39, B40, B41
- Downlink 2 x 2 MIMO: B1, B2, B3, B5, B7, B8, B20, B28, B34, B38, B39, B40, B41
3. UMTS: WCDMA: B1, B2, B5, B8
Data Rate:
1. 5G SA sub-6: downlink 2Gbps; Uplink 1 Gbps
2. 5G NSA SUB-6: downlink 2.2Gbps; Uplink 575 Mbps
3. LTE: downlink 600Mbps; uplink 150Mbps
4. UMTS: downlink 42.2Mbps; uplink 11Mbps
Other:
1. Operating temperature: -30 degrees C ~ +75 degrees C
2. Extension temperature: -40 degrees C ~ +85 degrees C
3. Module size: 30.0 x 52.0 x 2.3 (mm)
4. Module weight: 8.9 (G)
List of packages
1. M.2 to 4G/5G HAT x 1
2. RM500U-CN X 1
3. Antenna 4pcs x 1
4. IPEX adapter cable 4pcs x 1
5. 2**20pin Pin Header x 1
6. 5V 3A Type-C Power Adapter x 1
7. USB3.0 Dual Plug Cable X 1
8. USB3.0 adapter x 1
9. USB2.0 adapter x 1
10. SMA protective cap 4pcs x 1
11. Screw pack x 1
