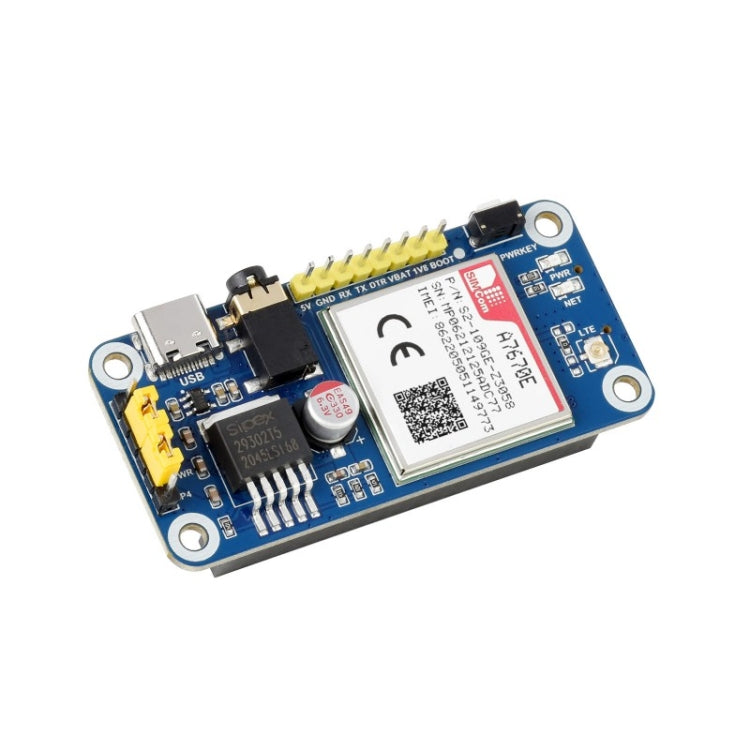

Waveshare Multi Band 2G GSM/GPRS LBS A7670E LTE Cat-1 HAT for Raspberry Pi, for Europe, Southeast Asia, West Asia, Africa, China, South Korea, A7670E LTE Cat-1 HAT
€31,29
Disponibile
Features B> The A7670E Cat-1 HAT is a LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and Edge, with a downlink rate of up to 10Mbps and an uplink rate...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Features B>
The A7670E Cat-1 HAT is a LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and Edge, with a downlink rate of up to 10Mbps and an uplink rate of 5Mbps. It supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070 series, and the AT commands are mostly compatible with SIM7600 series. It is suitable for IoT applications such as remote information processing, monitoring devices, POS, industrial routers, remote diagnosis and so on.
1. Raspberry PI 40PIN standard GPIO extension header, support Raspberry PI series boards
2. Support protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s) and SSL
3. Support dial-up, phone call, SMS
4. Support LBS base station positioning, can get the approximate location information via mobile network
5. TTS (Text to Speech) feature, Chinese/English texts can be converted into spoken words
6. On-board USB interface, for command testing, network communication and so on
7. On-board audio jack for sound recording, making phone call, listening to the resulting TTS speech, etc.
8. Breakout Common Used Pins of A7670X module, make it easy to connect with host boards like Arduino/STM32
9. SIM card slot, support 1.8V/3V SIM card
10. 2X LED INDICATORS, easy to monitor the operating status
11. Integral voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
12. Come with development resources and manual (examples for Raspberry PI / Arduino / STM32)
Specifications B>
Frequency band
1. LTE Cat-1: LTE-FDD: B1, B3, B5, B7, B8, B20
2. 2G: GSM / GPRS / EDGE: 900/1800 MHz
SMS and audio
1. SMS: Supported types: MT, MO, CB, Text, PDU
2. Storage: USIM Card (CB can not be stored on the SIM card)
3. Audio Feature: Standard 3.5mm audio jack for audio input/output
Others
1. Power supply: 5V
2. Operating voltage: 5V / 3.3V (configured by jumper)
3. Operating temperature: -30 degrees c ~ 80 degrees c
4. Storage temperature: -45 degrees c ~ 90 degrees c
5. Dimensions: 65 x 30.5mm
List of packages B>
1. A7670E Cat-1 Hat x 1
2. LTE Antenna x 1
3. USB-A to USB-C cable X 1
4. RPI Screws Pack x 1
The A7670E Cat-1 HAT is a LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and Edge, with a downlink rate of up to 10Mbps and an uplink rate of 5Mbps. It supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070 series, and the AT commands are mostly compatible with SIM7600 series. It is suitable for IoT applications such as remote information processing, monitoring devices, POS, industrial routers, remote diagnosis and so on.
1. Raspberry PI 40PIN standard GPIO extension header, support Raspberry PI series boards
2. Support protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s) and SSL
3. Support dial-up, phone call, SMS
4. Support LBS base station positioning, can get the approximate location information via mobile network
5. TTS (Text to Speech) feature, Chinese/English texts can be converted into spoken words
6. On-board USB interface, for command testing, network communication and so on
7. On-board audio jack for sound recording, making phone call, listening to the resulting TTS speech, etc.
8. Breakout Common Used Pins of A7670X module, make it easy to connect with host boards like Arduino/STM32
9. SIM card slot, support 1.8V/3V SIM card
10. 2X LED INDICATORS, easy to monitor the operating status
11. Integral voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
12. Come with development resources and manual (examples for Raspberry PI / Arduino / STM32)
Specifications B>
Frequency band
1. LTE Cat-1: LTE-FDD: B1, B3, B5, B7, B8, B20
2. 2G: GSM / GPRS / EDGE: 900/1800 MHz
SMS and audio
1. SMS: Supported types: MT, MO, CB, Text, PDU
2. Storage: USIM Card (CB can not be stored on the SIM card)
3. Audio Feature: Standard 3.5mm audio jack for audio input/output
Others
1. Power supply: 5V
2. Operating voltage: 5V / 3.3V (configured by jumper)
3. Operating temperature: -30 degrees c ~ 80 degrees c
4. Storage temperature: -45 degrees c ~ 90 degrees c
5. Dimensions: 65 x 30.5mm
List of packages B>
1. A7670E Cat-1 Hat x 1
2. LTE Antenna x 1
3. USB-A to USB-C cable X 1
4. RPI Screws Pack x 1
