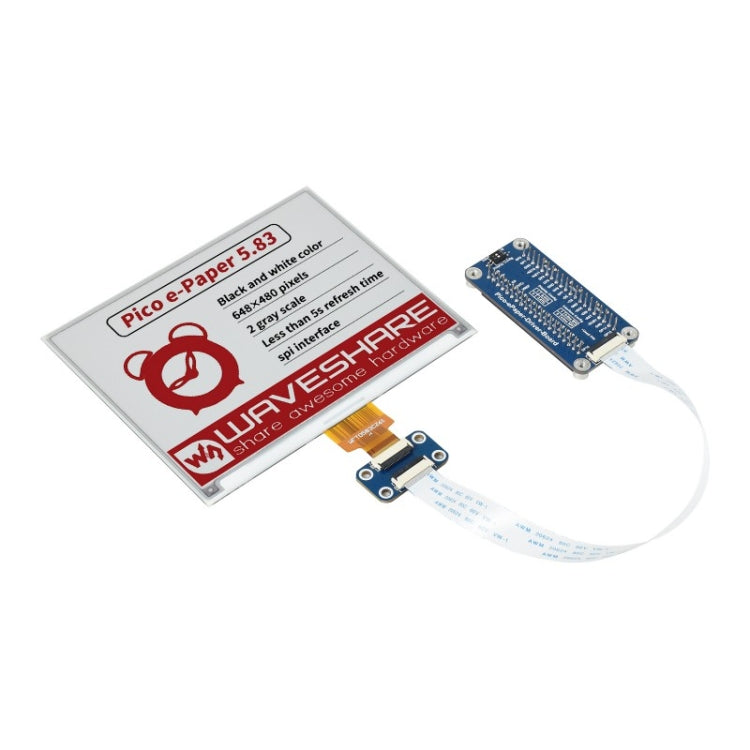

Waveshare 5.83 inch 648x480 Pixel E-Ink E-Paper Display Module Red Black White (B) for Raspberry Pi Pico, SPI Interface, 20127

Features B>
1. No backlight, keep displaying the latest content for a long time even when it turns off
2. Ultra low power consumption, basically the power is only required for refreshing
3. SPI interface, requires minimal IO pins
4. 2 user buttons and 1x reset button for easy interaction
5. Comes with development resources and manual (Raspberry PI PIO C/C++ and Micropython examples)

Specifications B>
1. Operating voltage: 3.3V
2. Display color: black, white
3. Resolution: 648x480 pixels
4. Grey Scale: 2
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: greater than 170 degrees
7. Partial update time: N/A
8. Full refresh time: 5s
9. Size: 125.4x99.5mm
10. Display Dimensions: 119.232x88.320mm
11. Power Refresh: 26.4mW (typ.)
12. Standby current: less than 0.01UA (almost none)
13. DOT Point: 0.184 x 0.184mm

Advantages of Eink B>
1. E-paper display uses microcapsule electrophoretic technology for display, the principle is: charged particles suspended in transparent fluid move to the sides of the microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just like traditional printed paper.
2. The e-paper display will clearly display images/texts under the light bulb or natural light, no backlight required and features almost up to 180 degree viewing angle. It is usually used as an e-reader because of the paper-like effect.

List of packages B>
1. 5.83 inch e-paper x 1
2. Pico-ePaper-Driver-Board x 1
3. Standoff Pack x 1

Size:

package weight

Weight of each package 0.08kgs / 0.17lb One size fits all product 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch

Quantity of a box

200
