Prodotto selezionato

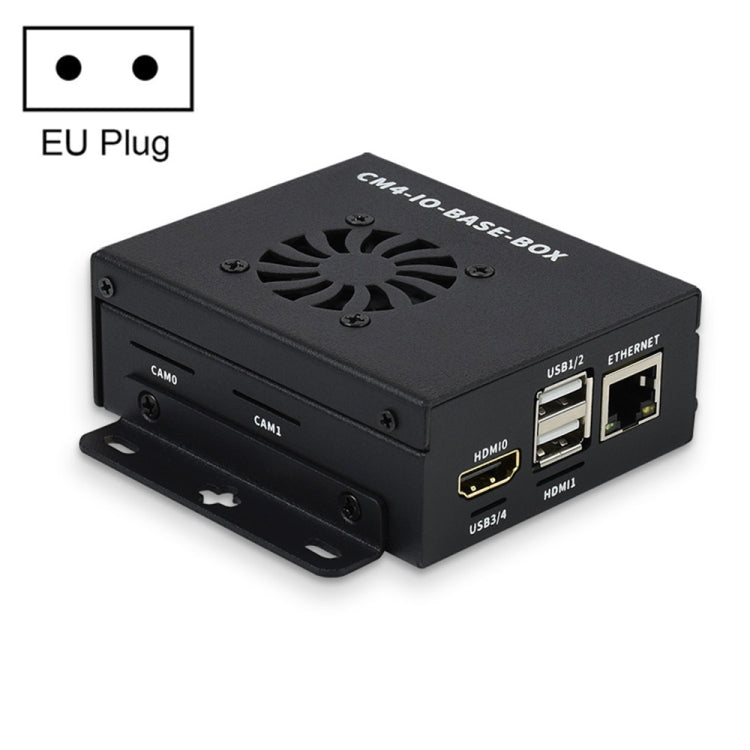

Waveshare Mini IO Board Full Ver Mini-Computer Base Box with Metal Case and Cooling Fan for Raspberry Pi CM4, Mini IO Board Full Ver
€43,67
Disponibile
Specifications B> 1. USB: - USB 2.0 x 2 - USB 2.0 x 2 (via FFC connector) 2. GPIO: Raspberry PI 40 Pin GPIO 3. Header: m.2 slot x 1 4. Support HD interface: HDMI...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Specifications B>
1. USB:
- USB 2.0 x 2
- USB 2.0 x 2 (via FFC connector)
2. GPIO: Raspberry PI 40 Pin GPIO
3. Header: m.2 slot x 1
4. Support HD interface: HDMI X 2, 1x via FFC connector, support 4K 30FPS
5. DSI Display: MIPI DSi X 1 (15pin 1.0mm FPC)
6. CSI Camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
7. Power input: 5V
8. Fan: 5V/12V (no fan control)
9. RJ45 Ethernet: Gigabit Ethernet
10. Slot cm4: suitable for all variants of the computing module 4
11. SD card slot: microSD card socket for Compute Modules 4 lite (without EMMC) Variants
12. Dimensions: 85.0 x 56.0mm
List of packages B>
1. cm4-io-base-b x 1
2. Metal case (upper and lower) x 1
3. FAN-4010-PWM-5V X 1
4. Screwdriver x 1
5. Screw packaging x 1
6. USB-C 5V 3A Power Adapter x 1
1. USB:
- USB 2.0 x 2
- USB 2.0 x 2 (via FFC connector)
2. GPIO: Raspberry PI 40 Pin GPIO
3. Header: m.2 slot x 1
4. Support HD interface: HDMI X 2, 1x via FFC connector, support 4K 30FPS
5. DSI Display: MIPI DSi X 1 (15pin 1.0mm FPC)
6. CSI Camera: MIPI CSI-2 x 2 (15pin 1.0mm FPC)
7. Power input: 5V
8. Fan: 5V/12V (no fan control)
9. RJ45 Ethernet: Gigabit Ethernet
10. Slot cm4: suitable for all variants of the computing module 4
11. SD card slot: microSD card socket for Compute Modules 4 lite (without EMMC) Variants
12. Dimensions: 85.0 x 56.0mm
List of packages B>
1. cm4-io-base-b x 1
2. Metal case (upper and lower) x 1
3. FAN-4010-PWM-5V X 1
4. Screwdriver x 1
5. Screw packaging x 1
6. USB-C 5V 3A Power Adapter x 1
