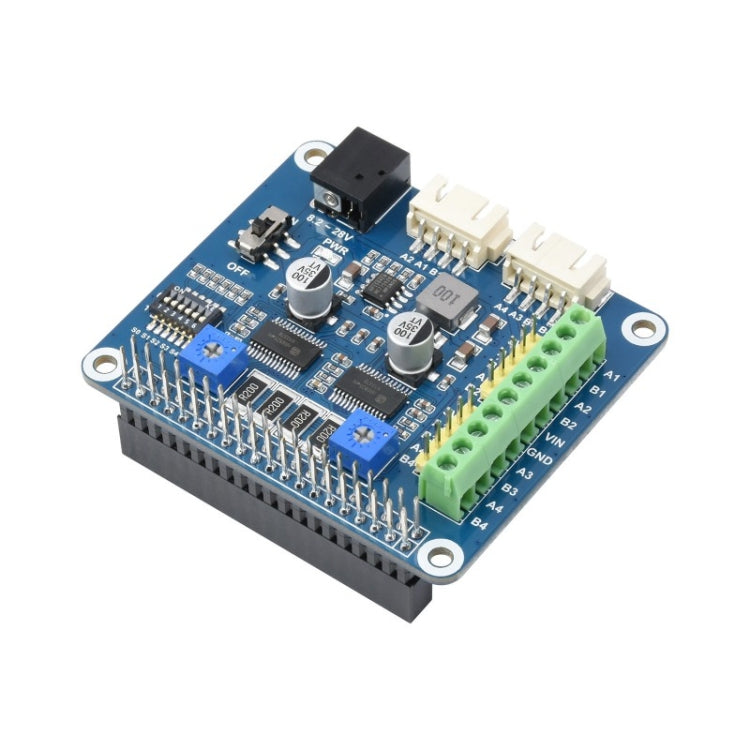

Waveshare HRB8825 Stepper Motor HAT for Raspberry Pi, Drives Two Stepper Motors, Up to 1/32 Microstepping
€15,79
Disponibile
Characteristics 1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano 2. Built-in HR8825 dual motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use 3....
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Characteristics
1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
2. Built-in HR8825 dual motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
3. 6 microstep modes available, configured with DIP switches: full step, half step, 1/4 step, 1/8 step, 1/16 step and 1/32 step
4. Motor drive current adjustable by potentiometer, maximum current output 2.5A
5. Protection functions: Overcurrent protection (OCP), Thermal shutdown (TSD), VM undervoltage lockout (UVLO)
6. Integrate 5V regulator, enable to supply power to Raspberry Pi
7. Built-in multi-connector options for stepper motors with different specifications
8. Comes with development resources and manual (examples in BCM2835, Pi wiring and python)
Specifications
1. Motor controller: HR8825
2. Motor drive voltage: 8.2V~28V
3. Motor drive current: 2.5A
4. Logic voltage: 3.3V
5. Mounting hole size: 3.0mm
6. Dimensions: 65 x 56 mm
List of packages
1. STEPPER MOTOR HAT (B) x 1
2. RPi Screw Pack (2pcs) x 1
3. Aluminum heatsink x 1
1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
2. Built-in HR8825 dual motor controller IC with built-in microstepping indexer, drives two stepper motors, easy to use
3. 6 microstep modes available, configured with DIP switches: full step, half step, 1/4 step, 1/8 step, 1/16 step and 1/32 step
4. Motor drive current adjustable by potentiometer, maximum current output 2.5A
5. Protection functions: Overcurrent protection (OCP), Thermal shutdown (TSD), VM undervoltage lockout (UVLO)
6. Integrate 5V regulator, enable to supply power to Raspberry Pi
7. Built-in multi-connector options for stepper motors with different specifications
8. Comes with development resources and manual (examples in BCM2835, Pi wiring and python)
Specifications
1. Motor controller: HR8825
2. Motor drive voltage: 8.2V~28V
3. Motor drive current: 2.5A
4. Logic voltage: 3.3V
5. Mounting hole size: 3.0mm
6. Dimensions: 65 x 56 mm
List of packages
1. STEPPER MOTOR HAT (B) x 1
2. RPi Screw Pack (2pcs) x 1
3. Aluminum heatsink x 1
