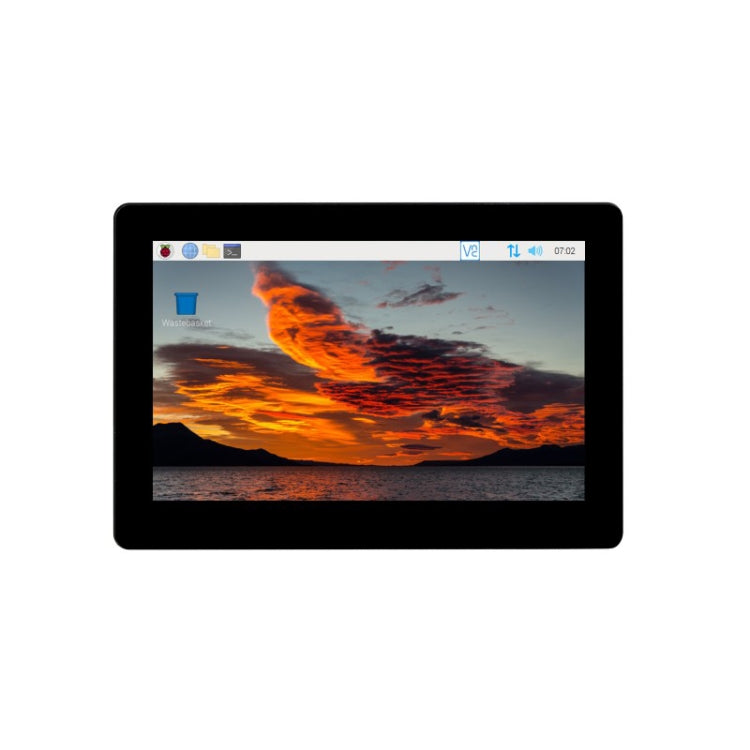

WAVESHARE 5 inch Touch Screen Expansion for Raspberry Pi CM4, PoE Header, Gigabit Ethernet, 4K Output
€84,83
Disponibile
Product information I am a Raspberry Pi CM4 kit with a 5-inch touch screen all-in-one machine. Gigabit Ethernet port with PoE pin supports 4K output, built-in four-way USB 2.0, 5-inch touch screen, etc. The all-in-one...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Product information
I am a Raspberry Pi CM4 kit with a 5-inch touch screen all-in-one machine. Gigabit Ethernet port with PoE pin supports 4K output, built-in four-way USB 2.0, 5-inch touch screen, etc. The all-in-one kit is convenient for users.
Notes:
1. Do not connect or disconnect any device except USB and HDMI while the base board is working.
2. If you need to replace the fan, confirm the fan voltage and then turn on.
3. The USB SLAVE interface is used to burn the image and cannot be used as an OTG interface.
4. In normal use, CM4 should be powered by at least 5V 2.5A. Otherwise, it may cause problems such as automatic shutdown, frequency reduction and so on.
5. Built-in default 4-way USB 2.0 interface.
6. Support POE pins, additional POE HAT is required if POE function is required.
7. This screen needs to add a driver to work.
Specifications
1. CM4 Socket: Suitable for all Compute Module 4 variants
2. Network:
- RJ45 Gigabit Ethernet connector
- M.2 M KEY, supports NVME SSD
3. POE: PoE header (additional PoE HAT is required to enable PoE function)
4. USB: USB 2.0 x 4
5. Display: 5 inch screen, 800 x 480 pixels, 5-point capacitive touch
6. Camera: MIPI CSI-2 x 2 port (1.0mm 15-pin FPC connector)
7. Video: HDMI, support 4K 30fps output
8. RTC: Real-time clock with battery power and ability to wake up the computing module 4
9. Storage: MicroSD card socket for the Compute Module 4 Lite variants (without eMMC).
10. Fan Header: Allows speed adjustment and measurement, 5V/12V
11. Power input: 5V
12. Dimensions: 127.7 x 87.45 mm
I am a Raspberry Pi CM4 kit with a 5-inch touch screen all-in-one machine. Gigabit Ethernet port with PoE pin supports 4K output, built-in four-way USB 2.0, 5-inch touch screen, etc. The all-in-one kit is convenient for users.
Notes:
1. Do not connect or disconnect any device except USB and HDMI while the base board is working.
2. If you need to replace the fan, confirm the fan voltage and then turn on.
3. The USB SLAVE interface is used to burn the image and cannot be used as an OTG interface.
4. In normal use, CM4 should be powered by at least 5V 2.5A. Otherwise, it may cause problems such as automatic shutdown, frequency reduction and so on.
5. Built-in default 4-way USB 2.0 interface.
6. Support POE pins, additional POE HAT is required if POE function is required.
7. This screen needs to add a driver to work.
Specifications
1. CM4 Socket: Suitable for all Compute Module 4 variants
2. Network:
- RJ45 Gigabit Ethernet connector
- M.2 M KEY, supports NVME SSD
3. POE: PoE header (additional PoE HAT is required to enable PoE function)
4. USB: USB 2.0 x 4
5. Display: 5 inch screen, 800 x 480 pixels, 5-point capacitive touch
6. Camera: MIPI CSI-2 x 2 port (1.0mm 15-pin FPC connector)
7. Video: HDMI, support 4K 30fps output
8. RTC: Real-time clock with battery power and ability to wake up the computing module 4
9. Storage: MicroSD card socket for the Compute Module 4 Lite variants (without eMMC).
10. Fan Header: Allows speed adjustment and measurement, 5V/12V
11. Power input: 5V
12. Dimensions: 127.7 x 87.45 mm
