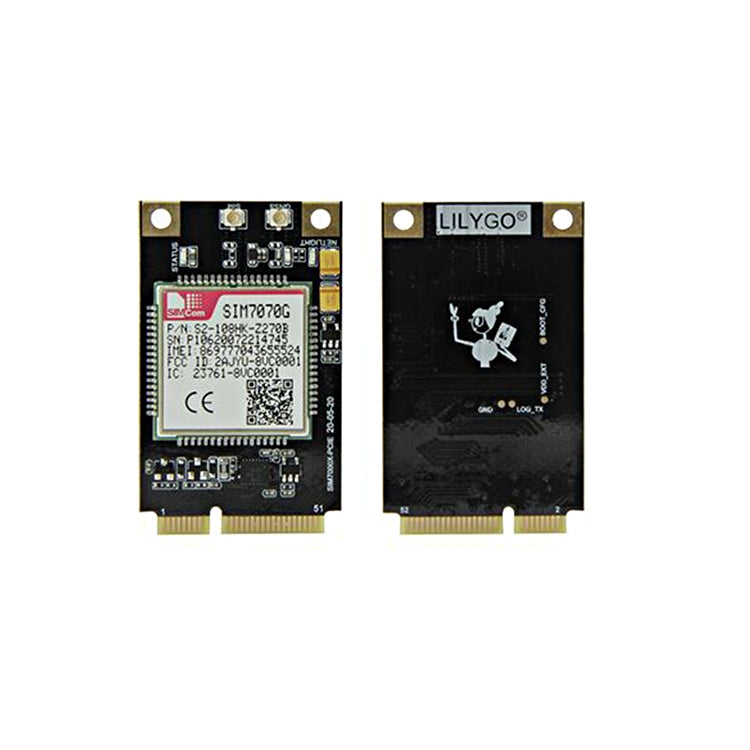

TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WiFi Bluetooth Nano Card SIM Series Module Hardware Modular Development Board, PCIE-SIM7070G Module, PCIE-SIM7070G Module
€18,70
Disponibile
Product Information B> Hardware specifications. 1. Chipset: ESP32-WROVER-B, AXP192 Power Management Chip 2. Flash: 4MB / 16MB 3. Static SRAM: 8 MB 4. SRAM: 520 KB SRAM 5. Button: PWR power switch, reset 6. USB...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Product Information B>
Hardware specifications.
1. Chipset: ESP32-WROVER-B, AXP192 Power Management Chip
2. Flash: 4MB / 16MB
3. Static SRAM: 8 MB
4. SRAM: 520 KB SRAM
5. Button: PWR power switch, reset
6. USB to TTL: CP2104
7. Vehicle clock: 40 MHz crystal oscillator
8. Peripheral Equipment: SIM NANO Card Slot, mini PCIE card slot
9. Antenna: On-board antenna (default)
10. Working voltage: 2.7V to 3.6V
11. Sleep current: about 700mA
12. Operating temperature range: -40 degrees Celsius ~ +85 degrees Celsius
13. Dimensions: 75 x 33 x 10.5 mm
14. Weight: 14.5 g
Power Specifications
1. Power input: USB 5V/1A
2. Charging current: 500mA
3. Battery input: 3.7-4.2V
4. Charging IC: AXP192
5. JST Connector: 2 pin 2.0mm
6. USB: Type-C
wireless online.
1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip)
2. Protocol: 802.11 B/G/N (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU AGGREGATION, support 0.4US protection interval
3. Frequency range: 2.4GHZ-2.5GHz (2400m-2483.5m)
4. Transmit power: 22DBM
5. Communication distance: 300m
Bluetooth
1. Protocol: Complies with Bluetooth V4.2BR/EDR and BLE Standards
2. Radio frequency: nzif CLASS-1 receiver with sensitivity of -97DBM, Class 2 transmitter and Class-3 AFH
3. Audio: CVSD & SBC Audio
Software Specifications
1. Wi-Fi Mode: Workstation / SoftAp / SoftAp + Station / P2P
2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS
3. Encryption method: AES / RSA / ECC / SHA
4. Firmware Update: Download UART/OTA (Download and write firmware via network/host)
5. Software development: Support cloud server development / SDK for user firmware development
6. Network Protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User Configuration: AT+ Command Set, Cloud Server, Android/Android App/IOS
8. Operating System: Freertos
Packing list
1. PCIE-SIM7070G Module x 1
2. LTE Antenna x 1
3. GPS Antenna x 1
4. Screws x 2
SIM7070G B>
SIM7070G:
1. NB-IOT: B1/B2/B3/B4/B5/B8/B12/B1/B5/B8/B12/B13/B18/B19/B20/B18/B19/B20/B25/B26/B28/B66/B26/B28/B66/B71/B85
2. Cat-M: B1/B2/B3/B4/B5/B8/B11/B5/B8/B12/B13/B14/B12/B13/B14/B18/B19/B20/B28/B19/B20/B25/B26/B27/B28/B66/B85
3. GSM/GPRS/EDGE: 850/900/1800/900MHz
4. GNSS: C/A Code
- GPS L1: 1575.42 +/- 1.023MHz
- GLONASS L1: 1598.0625 ~ 1605.375MHz
- BDS B1: 1559.052 ~ 1591.788MHz
- Galileo L1: 1575.42 +/- 1.023MHz
Hardware specifications.
1. Chipset: ESP32-WROVER-B, AXP192 Power Management Chip
2. Flash: 4MB / 16MB
3. Static SRAM: 8 MB
4. SRAM: 520 KB SRAM
5. Button: PWR power switch, reset
6. USB to TTL: CP2104
7. Vehicle clock: 40 MHz crystal oscillator
8. Peripheral Equipment: SIM NANO Card Slot, mini PCIE card slot
9. Antenna: On-board antenna (default)
10. Working voltage: 2.7V to 3.6V
11. Sleep current: about 700mA
12. Operating temperature range: -40 degrees Celsius ~ +85 degrees Celsius
13. Dimensions: 75 x 33 x 10.5 mm
14. Weight: 14.5 g
Power Specifications
1. Power input: USB 5V/1A
2. Charging current: 500mA
3. Battery input: 3.7-4.2V
4. Charging IC: AXP192
5. JST Connector: 2 pin 2.0mm
6. USB: Type-C
wireless online.
1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip)
2. Protocol: 802.11 B/G/N (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU AGGREGATION, support 0.4US protection interval
3. Frequency range: 2.4GHZ-2.5GHz (2400m-2483.5m)
4. Transmit power: 22DBM
5. Communication distance: 300m
Bluetooth
1. Protocol: Complies with Bluetooth V4.2BR/EDR and BLE Standards
2. Radio frequency: nzif CLASS-1 receiver with sensitivity of -97DBM, Class 2 transmitter and Class-3 AFH
3. Audio: CVSD & SBC Audio
Software Specifications
1. Wi-Fi Mode: Workstation / SoftAp / SoftAp + Station / P2P
2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS
3. Encryption method: AES / RSA / ECC / SHA
4. Firmware Update: Download UART/OTA (Download and write firmware via network/host)
5. Software development: Support cloud server development / SDK for user firmware development
6. Network Protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User Configuration: AT+ Command Set, Cloud Server, Android/Android App/IOS
8. Operating System: Freertos
Packing list
1. PCIE-SIM7070G Module x 1
2. LTE Antenna x 1
3. GPS Antenna x 1
4. Screws x 2
SIM7070G B>
SIM7070G:
1. NB-IOT: B1/B2/B3/B4/B5/B8/B12/B1/B5/B8/B12/B13/B18/B19/B20/B18/B19/B20/B25/B26/B28/B66/B26/B28/B66/B71/B85
2. Cat-M: B1/B2/B3/B4/B5/B8/B11/B5/B8/B12/B13/B14/B12/B13/B14/B18/B19/B20/B28/B19/B20/B25/B26/B27/B28/B66/B85
3. GSM/GPRS/EDGE: 850/900/1800/900MHz
4. GNSS: C/A Code
- GPS L1: 1575.42 +/- 1.023MHz
- GLONASS L1: 1598.0625 ~ 1605.375MHz
- BDS B1: 1559.052 ~ 1591.788MHz
- Galileo L1: 1575.42 +/- 1.023MHz
Size:
| package weight |
|
