Prodotto selezionato

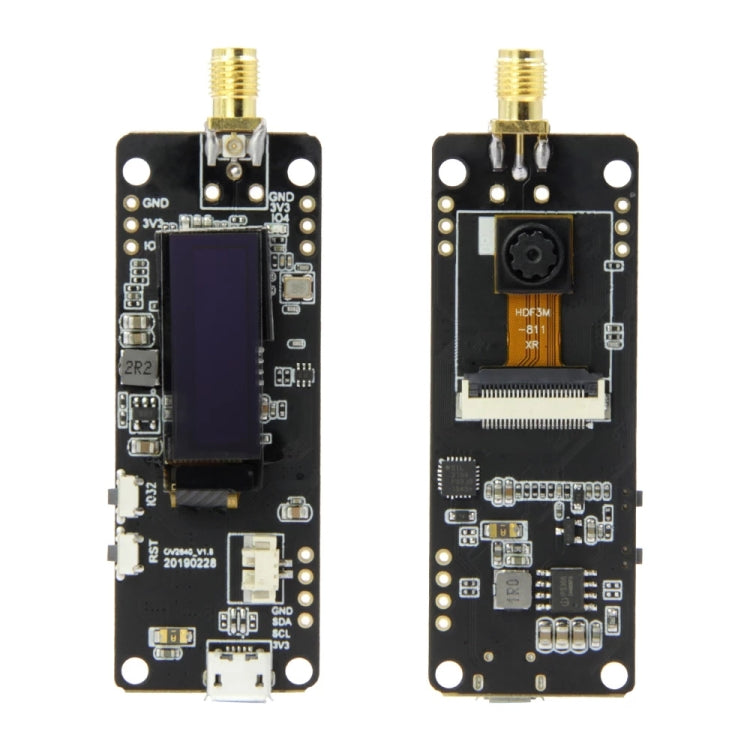

TTGO T-Journal Lens OV2640 SMA WiFi Camera Module 0.91 OLED Development Board with 3dbi Antenna, T-Journal Lens
€24,25
Disponibile
Hardware specifications. 1. Chipset: Espressif-ESP32-PCIO-D4 240MHz Xtensa/Dual-Core 32-bit LX6 32-bit Microprocessor 2. Flash: QSPI Flash/SRAM, up to 4 x 16MB 3. SRAM: 520 KB SRAM 4. Button: reset ??? IO32 5. Dismal: 0.91 SSD1306 6....
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Hardware specifications.
1. Chipset: Espressif-ESP32-PCIO-D4 240MHz Xtensa/Dual-Core 32-bit LX6 32-bit Microprocessor
2. Flash: QSPI Flash/SRAM, up to 4 x 16MB
3. SRAM: 520 KB SRAM
4. Button: reset ??? IO32
5. Dismal: 0.91 SSD1306
6. Power indicator lamp: red
7. USB to TTL: CP2104
8. Camera: OV2640 2.0 MEGAPIXEL
9. Steering motor: analog servo
10. On-board clock: 40 MHz crystal oscillator
11. Working voltage: 2.3V-3.6V
12. Working current: about 160mA
13. Working temperature range: -40 degree c ~ +85 degree c
14. Dimensions: 64.57mm x 23.98mm
Power Specifications
1. Power supply: USB 5V / 1A
2. Charging current: 1a
3. Battery: 3.7V lithium battery (not included)
Wifi
1. Standard: FCC/CE/Telec/KCC/SRRC/NCC (ESP32 chip)
2. Protocol: 802.11 B/G/N/E/I (802.11n, speed up to 100 Mbps) A-MPDU and A-MSDU polymerization, support 0.4US protection interval
3. Frequency range: 2.4Ghz~2.5GHz (2400m~2483.5m)
4. Transmit power: 22DBM
5. Communication distance: 300m
Bluetooth
1. Protocol: Meet Bluetooth V4.2BR/EDR and BLE standard
2. Radio Frequency: with -98DBM Sensitivity NZIF Receiver Class-1, Class-2 and Class-3 Emit AFH
3. Audio frequency: CVSD and SBC audio frequency
Software Specifications
1. WiFi Mode: Station / SoftAp / Sofap + Station / P2P
2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS
3. Encryption type: AES / RSA / ECC / SHA
4. Firmware update: Download UART/OTA (via network/host to download and write firmware)
5. Software development: Support cloud server development / SDK for user firmware development
6. Network Protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User configuration: AT+ instruction set, cloud server, Android/iOS app
8. OS: FREERTOS
1. Chipset: Espressif-ESP32-PCIO-D4 240MHz Xtensa/Dual-Core 32-bit LX6 32-bit Microprocessor
2. Flash: QSPI Flash/SRAM, up to 4 x 16MB
3. SRAM: 520 KB SRAM
4. Button: reset ??? IO32
5. Dismal: 0.91 SSD1306
6. Power indicator lamp: red
7. USB to TTL: CP2104
8. Camera: OV2640 2.0 MEGAPIXEL
9. Steering motor: analog servo
10. On-board clock: 40 MHz crystal oscillator
11. Working voltage: 2.3V-3.6V
12. Working current: about 160mA
13. Working temperature range: -40 degree c ~ +85 degree c
14. Dimensions: 64.57mm x 23.98mm
Power Specifications
1. Power supply: USB 5V / 1A
2. Charging current: 1a
3. Battery: 3.7V lithium battery (not included)
Wifi
1. Standard: FCC/CE/Telec/KCC/SRRC/NCC (ESP32 chip)
2. Protocol: 802.11 B/G/N/E/I (802.11n, speed up to 100 Mbps) A-MPDU and A-MSDU polymerization, support 0.4US protection interval
3. Frequency range: 2.4Ghz~2.5GHz (2400m~2483.5m)
4. Transmit power: 22DBM
5. Communication distance: 300m
Bluetooth
1. Protocol: Meet Bluetooth V4.2BR/EDR and BLE standard
2. Radio Frequency: with -98DBM Sensitivity NZIF Receiver Class-1, Class-2 and Class-3 Emit AFH
3. Audio frequency: CVSD and SBC audio frequency
Software Specifications
1. WiFi Mode: Station / SoftAp / Sofap + Station / P2P
2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS
3. Encryption type: AES / RSA / ECC / SHA
4. Firmware update: Download UART/OTA (via network/host to download and write firmware)
5. Software development: Support cloud server development / SDK for user firmware development
6. Network Protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User configuration: AT+ instruction set, cloud server, Android/iOS app
8. OS: FREERTOS
Size:
