Prodotto selezionato

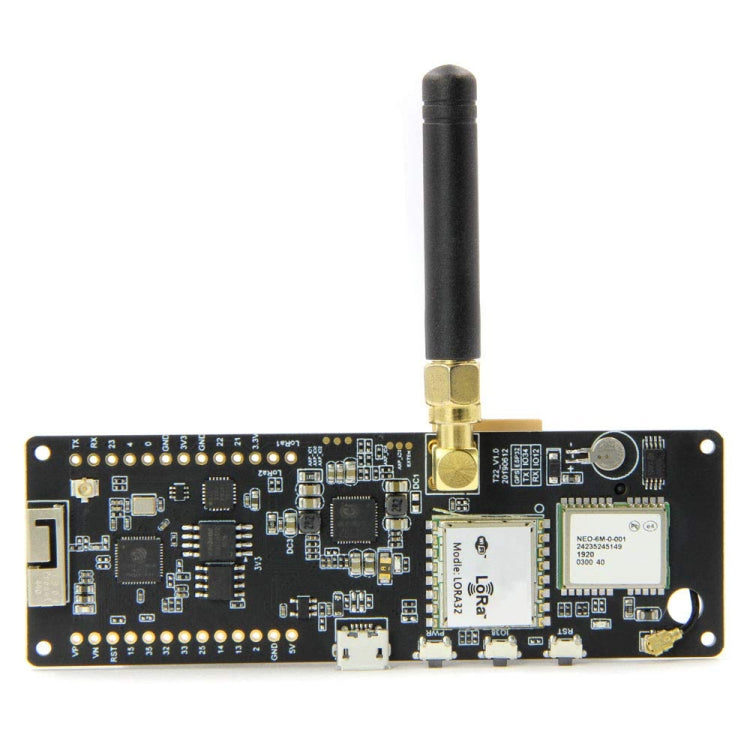

TTGO T-Beamv1.0 Chipset ESP32 WiFi Module Bluetooth 868MHz LoRa GPS Module NEO-6M with SMA Antenna, Original Version, Original Version 868MHz
€42,45
Disponibile
1. Working voltage: 1.8~13.7V 2. Acceptable current: 10 ~ 114 mA 3. Emission current: - 120mA at + 20dBm - 90 mA is at + 17dbm - 29mA at + 13dBm 4. Working frequency: 923MHz...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Working voltage: 1.8~13.7V
2. Acceptable current: 10 ~ 114 mA
3. Emission current:
- 120mA at + 20dBm
- 90 mA is at + 17dbm
- 29mA at + 13dBm
4. Working frequency: 923MHz
5. Transmit power: +20dbm
6. Sensitivity reception:
- 139DBM is located at Lora & 62.5khz & SF = 12 & 146bps
- 136DBM is at Lora & 125khz & SF = 12 & 293bps
- 118DBM It is located at Lora & 125khz & SF = 6 and 9380bps
- 123DBM lies at FSK and 5KHz and 1.2Kbps
7. Frequency error: +/- 15kHz
8. FIFO space: 64bytes
9. Vote on data:
-1.2K ~ 1300 kbps at FSK
-0.018k ~ 37.5kbps to Lora
10. Modulation mode: FSK, GFSK, MSK, GMSK, Lora TM, Ook
11. Interface Module: SPI
12. Sleep Current:
- 0.2UA Sleep
- 1.5Ua Idle.
13. Working temperature: -40 degrees Celsius- +85 degrees Celsius
14. Digital RSSI function
15. Automatic frequency correction
16. Automatic gain control
17. Low voltage detection and temperature sensor
18. Fast Wake-up and Frequency Skipping
19. Highly configurable package manager
20. Global Positioning System
21. Neo-6m GPS module, universal 3V-5V power supply
22.Designated module with ceramic antenna, super signal
23. Save EEPROM configuration parameter data
24. Battery with data backup
25. LED signal indicator
26. Default baud rate: 9600
27. Power: TP5400, 1A Battery Management
28. LED indicator
29. CP2104-GMR
30. Pre-flash firmware: softrf v4.0
This product is based on Lora radio frequency, 868 MHz (common in North America), 915 MHz (common in Europe) and 433 MHz (common in Asia Pacific)
2. Acceptable current: 10 ~ 114 mA
3. Emission current:
- 120mA at + 20dBm
- 90 mA is at + 17dbm
- 29mA at + 13dBm
4. Working frequency: 923MHz
5. Transmit power: +20dbm
6. Sensitivity reception:
- 139DBM is located at Lora & 62.5khz & SF = 12 & 146bps
- 136DBM is at Lora & 125khz & SF = 12 & 293bps
- 118DBM It is located at Lora & 125khz & SF = 6 and 9380bps
- 123DBM lies at FSK and 5KHz and 1.2Kbps
7. Frequency error: +/- 15kHz
8. FIFO space: 64bytes
9. Vote on data:
-1.2K ~ 1300 kbps at FSK
-0.018k ~ 37.5kbps to Lora
10. Modulation mode: FSK, GFSK, MSK, GMSK, Lora TM, Ook
11. Interface Module: SPI
12. Sleep Current:
- 0.2UA Sleep
- 1.5Ua Idle.
13. Working temperature: -40 degrees Celsius- +85 degrees Celsius
14. Digital RSSI function
15. Automatic frequency correction
16. Automatic gain control
17. Low voltage detection and temperature sensor
18. Fast Wake-up and Frequency Skipping
19. Highly configurable package manager
20. Global Positioning System
21. Neo-6m GPS module, universal 3V-5V power supply
22.Designated module with ceramic antenna, super signal
23. Save EEPROM configuration parameter data
24. Battery with data backup
25. LED signal indicator
26. Default baud rate: 9600
27. Power: TP5400, 1A Battery Management
28. LED indicator
29. CP2104-GMR
30. Pre-flash firmware: softrf v4.0
This product is based on Lora radio frequency, 868 MHz (common in North America), 915 MHz (common in Europe) and 433 MHz (common in Asia Pacific)
Size:
| package weight |
|
