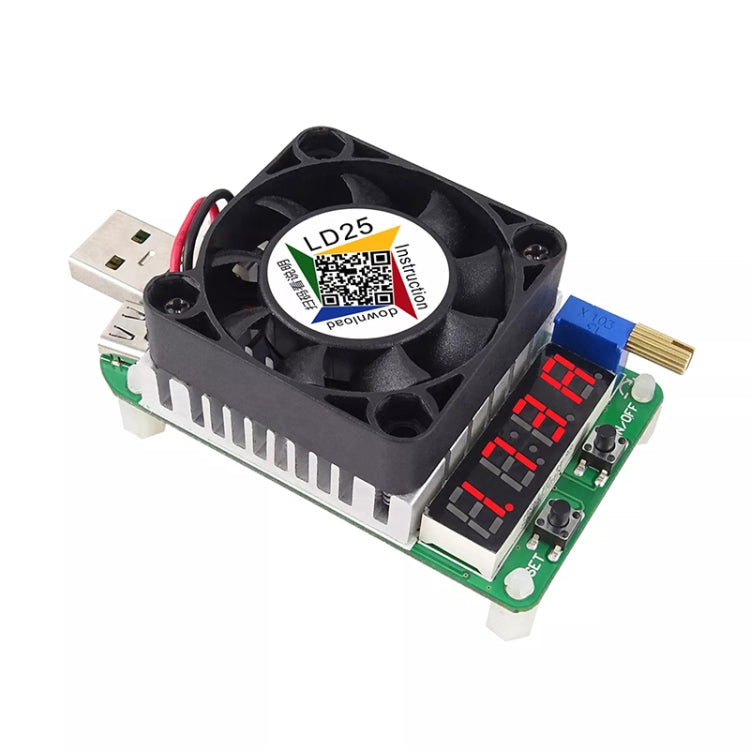

LD25 Current Voltage Adjustable Electronic USB Load Resistor Discharge Battery Test
€8,83
Disponibile
1. USB intelligent temperature control electronic load; High power, high current, large voltage, intelligent control. LD25 is a convenient and economical intelligent electronic load. 2. OVP overvoltage protection (overvoltage protection 25V-30V, OVP digital display, permanent...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. USB intelligent temperature control electronic load; High power, high current, large voltage, intelligent control. LD25 is a convenient and economical intelligent electronic load.
2. OVP overvoltage protection (overvoltage protection 25V-30V, OVP digital display, permanent damage after more than 30V); OPP overload protection (the load temperature is higher than 80 degrees Celsius, the device stops working, OTP digital display); OTP overtemperature protection (power higher than 25W, the equipment stops working, OPP digital display).
3. Provide 4A, 25V, 25W (3 values not exceeded) constant current test discharge activity. Friendly human-computer interface and excellent performance indicators can meet your different testing needs.
4. It is suitable for measuring the output current capacity of the charger, using the mass aging test of the charger factory, and measuring the quality of the Micro USB charging cable and Type-C charging cable.
5. Specifications:
Rated operating voltage: DC4-25.0V
Maximum discharge power: 25W
Rated operating current: 0.25-4.00A (When the fan is not working, the minimum constant current is 0.05A)
Fan speed: Large size intelligent temperature control fan, speed 5800 +/- 10% RPM
Constant current resolution: +/-(1%+3 digits)
Heat sending method: intelligent temperature control fan + all-aluminum fan
Working temperature: -10-40 degrees Celsius
Adjustable Potentiometer: Precision multi-loop adjustable potentiometer
Display mode: 4-bit LED tube
Expansion port: Micro USB port, Type-C port
Product weight: 57g
Product Dimensions: 83.8x41.1x27.9mm
2. OVP overvoltage protection (overvoltage protection 25V-30V, OVP digital display, permanent damage after more than 30V); OPP overload protection (the load temperature is higher than 80 degrees Celsius, the device stops working, OTP digital display); OTP overtemperature protection (power higher than 25W, the equipment stops working, OPP digital display).
3. Provide 4A, 25V, 25W (3 values not exceeded) constant current test discharge activity. Friendly human-computer interface and excellent performance indicators can meet your different testing needs.
4. It is suitable for measuring the output current capacity of the charger, using the mass aging test of the charger factory, and measuring the quality of the Micro USB charging cable and Type-C charging cable.
5. Specifications:
Rated operating voltage: DC4-25.0V
Maximum discharge power: 25W
Rated operating current: 0.25-4.00A (When the fan is not working, the minimum constant current is 0.05A)
Fan speed: Large size intelligent temperature control fan, speed 5800 +/- 10% RPM
Constant current resolution: +/-(1%+3 digits)
Heat sending method: intelligent temperature control fan + all-aluminum fan
Working temperature: -10-40 degrees Celsius
Adjustable Potentiometer: Precision multi-loop adjustable potentiometer
Display mode: 4-bit LED tube
Expansion port: Micro USB port, Type-C port
Product weight: 57g
Product Dimensions: 83.8x41.1x27.9mm
