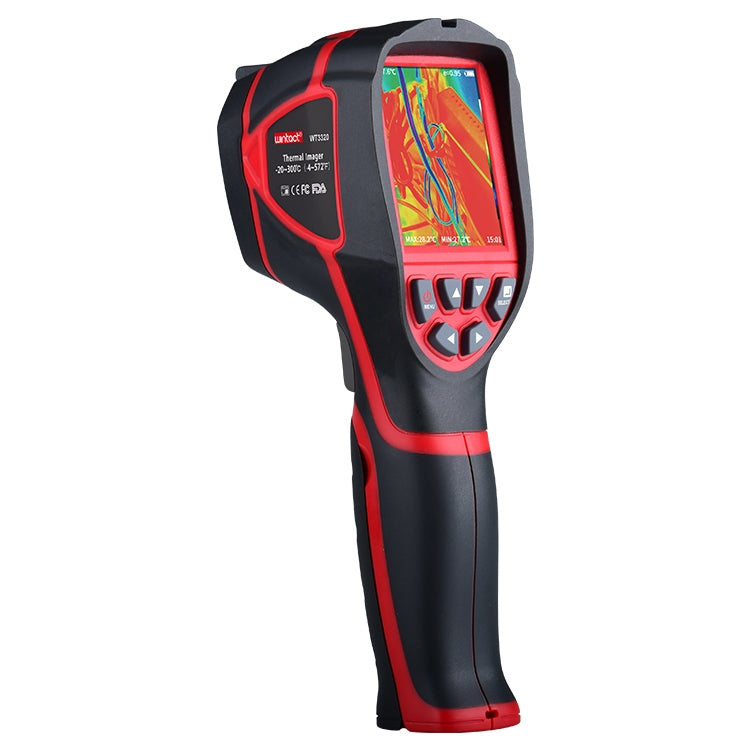

Wintact WT3320 Infrared Thermal Camera, WT3320
€516,04
Disponibile
1. Emissivity can be adjusted to increase the accuracy of measuring objects with semi-reflective surfaces. 2. The upper and lower temperature sliders can guide the user to the upper and lower temperature areas of the...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Emissivity can be adjusted to increase the accuracy of measuring objects with semi-reflective surfaces.
2. The upper and lower temperature sliders can guide the user to the upper and lower temperature areas of the thermal image
3. optional palette
4. This product is an infrared thermal imager that integrates surface temperature measurement and real-time thermal imaging
5. Traditional infrared thermometer needs to measure each part one by one, but infrared thermal imager does not need it, thus saving time
6. Potential problems can be clearly displayed on the color display. And use the center point measurement cursor to quickly and accurately locate and measure the temperature of the target object. In order to increase differentiation, the product is equipped with a visible light camera
7. Thermal image and visible light image are stored in the device, which can be read via USB or stored in computer to generate report or print
8. The product is small in size, easy to use and powerful. It is an ideal choice for electric power, electronic manufacturing, industrial testing and other fields.
9. Application areas include electric power, metallurgy, petrochemical, machinery, coal, transportation, fire protection, national defense, etc. It can not only perform real-time detection in high voltage, high current and high speed operation, but also realize real-time detection
10. Display: 2.8 inch full-angle TFT display
11. USB: micro USB 2.0
12. Infrared image resolution: 320x240
13. Field of View: 56x42 degrees
14. Measurement accuracy: +/- 2 degrees Celsius / +/- 2%
15. Temperature measurement range: -20 to 300 degrees Celsius
16. Visible image resolution: 300,000 pixels
17.LCD Resolution: 320?? 240
18. Focus Distance: 0.5-70mk
19. Emissivity: adjustable from 0.01 to 1.00
20. Thermal imaging frame rate: 9 Hz
21. Wavelength coverage: 8-14um
22. Focus mode: fixed
23. Palette: Rainbow, Red Iron Oxide, Fresh Color, Black and White, Black and White
24. Storage capacity: Built-in 3G (store more than 20,000 images)
25. File format: JPG
26. Power supply: Built-in 18650 rechargeable battery
27. Working time: 2-3 hours
28. Optional auto-off time: 5 minutes / 20 minutes / no auto-off
29. Size: 69.4x225x93.4mm
30. Weight: 329.1 g
