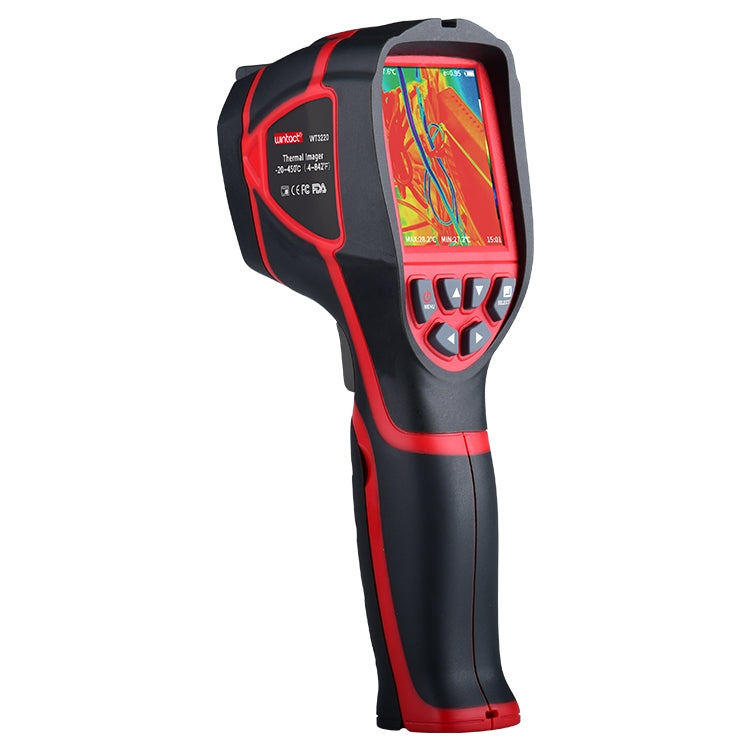

Wintact WT3220 Infrared Thermal Camera, WT3220
€402,37
Disponibile
1. This product is an infrared thermal imager that integrates surface temperature measurement and real-time thermal imaging. 2. Traditional infrared thermometer needs to measure each part one by one, but infrared thermal imager does not...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. This product is an infrared thermal imager that integrates surface temperature measurement and real-time thermal imaging.
2. Traditional infrared thermometer needs to measure each part one by one, but infrared thermal imager does not need it, thus saving time
3. In addition, the center point measurement cursor is used for fast and accurate positioning to measure temperature to increase the degree of discrimination. The product is equipped with a visible light camera
4. Thermal image and visible light image are stored in the device, which can be read via USB or stored in a computer to generate reports or print
5. The product is small in size, easy to use and powerful. This is an ideal choice for electric power, electronic manufacturing, industrial inspection and other fields.
6. Emissivity can be adjusted to improve the measurement accuracy of semi-reflective objects.
7. The upper and lower temperature sliders can guide the user to the upper and lower temperature areas of the thermal image
8. optional palette
9. Application areas include electric power, metallurgy, petrochemical, machinery, coal, transportation, fire protection, national defense, etc. It can not only perform real-time detection in high voltage, high current and high speed operation, but also realize real-time detection
10. There is no need to cut power, shut down or stop production to detect potential problems and avoid failures
11. Display: 2.8 inch full-angle TFT display
12. Infrared image resolution: 220x160
13. Field of View: 35x26 degrees
14. Temperature measurement range: -20 to 450 degrees Celsius
15. Measurement accuracy: +/- 2 degrees Celsius / +/- 2% (more than 300 degrees Celsius, the accuracy is +/- 5%)
16. Visible image resolution: 300,000 pixels
17.LCD Resolution: 320?? 240
18. Focus Distance: 0.5-70mk
19. Emissivity: adjustable from 0.01 to 1.00
20. Thermal imaging frame rate: 9 Hz
21. Wavelength coverage: 8-14um
22. Focus mode: fixed
23. Palette: Rainbow, Red Iron Oxide, Fresh Color, Black and White, Black and White
24. Storage capacity: Built-in 3G (store more than 20,000 images)
25. Size: 69.4x225x93.4mm
26. Weight: 329.1 g
