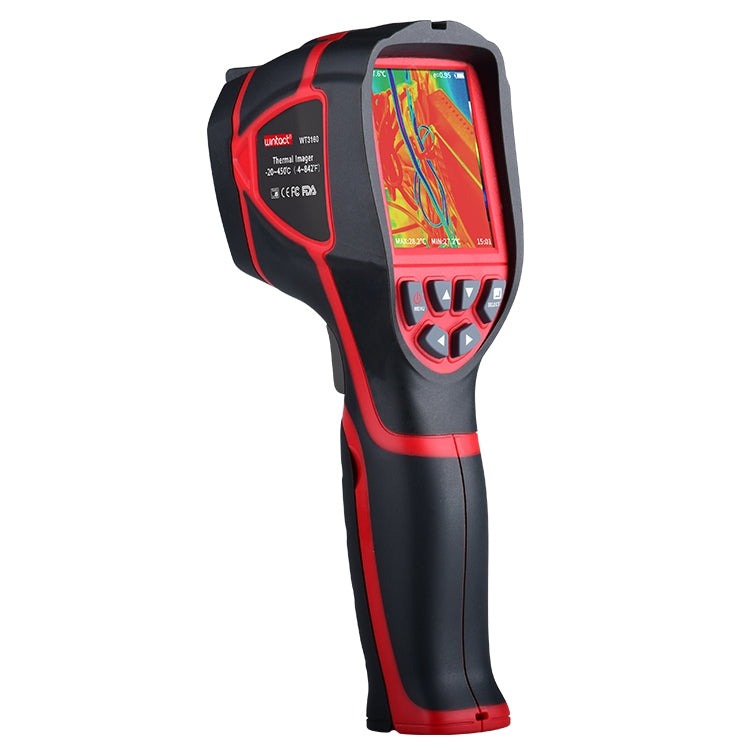

Wintact WT3160 Infrared Thermal Camera, WT3160

1. This product is an infrared thermal imager that measures the surface integral temperature and real-time thermal image.
2. The traditional infrared thermometer needs to measure each part one by one, but the infrared thermal camera does not need it, thus saving time
3. Potential problems can be clearly displayed on the color display. And use the center measurement cursor to quickly and accurately choose and measure the temperature of the target object. In order to increase the degree of discrimination, the product is equipped with a visible light camera
4. The thermal image and visible light image are stored in the device and can be read via USB or stored in the computer for generating reports or printing
5. The product is small in size, easy to use, and powerful. It is an ideal choice for power supply, electronics manufacturing, industrial testing and other fields.
6. Emissivity can be adjusted to improve the measurement accuracy of semi-reflective objects
7. The upper temperature zones and lower temperature sliders can guide the user to the upper and lower edge of the thermal image
8. optional palette
9. Application areas include power, metallurgy, petrochemical, machinery, coal, transportation, fire fighting, national defense electric, etc. It can not only perform detection under high voltage, high current, and high speed of real-time operation, but also realize real-time detection
10. There is no need to cut power, shut down or stop production to detect potential problems and avoid failures
11. Display: 2.8 inch full-angle TFT
12. Infrared image resolution: 220x160
13. Field of view: 35x26 degrees
Measuring range 14. Temperature: -20 to 450 degrees Celsius
15. Measurement accuracy: +/- 2 ° C / +/- 2% (over 300 degrees Celsius, the accuracy is +/- 5%)
16. Visible image resolution: 300,000 pixels
17.LCD Resolution: 320 240??
18. Focus Distance: 0.5-70 meters
19. Emissivity: adjustable from 0.01 to 1.00
20. Thermal imaging frame rate: 9 Hz
Coverage 21. Wavelength: 8-14um
22. Focus mode: fixed
23. Palette: Rainbow, Red Iron Oxide, Fresh Color, Black and White, Black and White
24. Memory capacity: built-in 3G (store more than 20,000 images)
25. Size: 69.4x225x93.4mm
26. Weight: 329.1g
