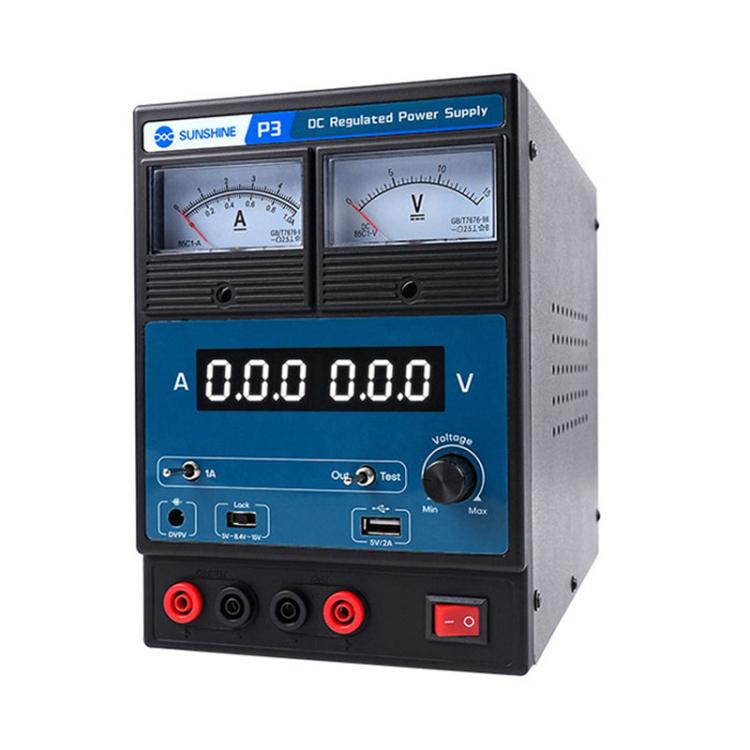

SUNSHINE P3 DC Regulated Power Supply 5V/8.4V/15V Switching Mobile Phone Repair Regulated Power Supply Meter, US Plug 110V, EU Plug 220V
€83,71
Disponibile
1. Power supply voltage: AC220V±10%, 50Hz / AC110V±10%, 60Hz 2. Working temperature: 0-40°C 3. Display mode: LED display (resolution ±1%) 4. Output voltage: 5V-8.4-15V continuously adjustable (resolution 0.1V) 5. Voltage stability: less than 0.01% +3mv...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Power supply voltage: AC220V±10%, 50Hz / AC110V±10%, 60Hz
2. Working temperature: 0-40°C
3. Display mode: LED display (resolution ±1%)
4. Output voltage: 5V-8.4-15V continuously adjustable (resolution 0.1V)
5. Voltage stability: less than 0.01% +3mv
6. Load stability: less than 0.01% +3mv
7. Recovery time: 100uS
8. Ripple noise voltage: less than 0.1% Vrms
9. Temperature coefficient: less than 300PPM/C
10. Current stability: less than 0.01% +3mv
11. Load stability: less than 0.01% +3mv
12. Ripple noise current: less than 0.1%Vrms
13. Net weight: about 2.74kg
14. Size: approx. 14 x 22.5 x 20 cm
15. Package Content: Main unit x 1 / Power cord x 1 / 10A fish clip cable x 1 / Manual x 1
Functional features:
1. A/V dual LED display with double pointer, large LED digital display of current and voltage values, more accurate and clear
2. With 5V, 8.4V and 15V three-voltage switching function, no need to replace the power supply or cumbersome adjustment steps, to meet different equipment maintenance needs
3. High-power pure copper transformer, using thicker winding + silicon steel, stable output power, more accurate and professional measurement, to prevent overheating and burning
4. 1A/5A can switch the range at will, more accurate display, intelligent temperature-sensitive fan, intelligent heat dissipation system, better protection of body parts
5. Adjustable DC power supply, stable performance indicators, reliable output and three clear LEDs for voltage and current display, strengthen multiple protection, improve operating efficiency
2. Working temperature: 0-40°C
3. Display mode: LED display (resolution ±1%)
4. Output voltage: 5V-8.4-15V continuously adjustable (resolution 0.1V)
5. Voltage stability: less than 0.01% +3mv
6. Load stability: less than 0.01% +3mv
7. Recovery time: 100uS
8. Ripple noise voltage: less than 0.1% Vrms
9. Temperature coefficient: less than 300PPM/C
10. Current stability: less than 0.01% +3mv
11. Load stability: less than 0.01% +3mv
12. Ripple noise current: less than 0.1%Vrms
13. Net weight: about 2.74kg
14. Size: approx. 14 x 22.5 x 20 cm
15. Package Content: Main unit x 1 / Power cord x 1 / 10A fish clip cable x 1 / Manual x 1
Functional features:
1. A/V dual LED display with double pointer, large LED digital display of current and voltage values, more accurate and clear
2. With 5V, 8.4V and 15V three-voltage switching function, no need to replace the power supply or cumbersome adjustment steps, to meet different equipment maintenance needs
3. High-power pure copper transformer, using thicker winding + silicon steel, stable output power, more accurate and professional measurement, to prevent overheating and burning
4. 1A/5A can switch the range at will, more accurate display, intelligent temperature-sensitive fan, intelligent heat dissipation system, better protection of body parts
5. Adjustable DC power supply, stable performance indicators, reliable output and three clear LEDs for voltage and current display, strengthen multiple protection, improve operating efficiency
