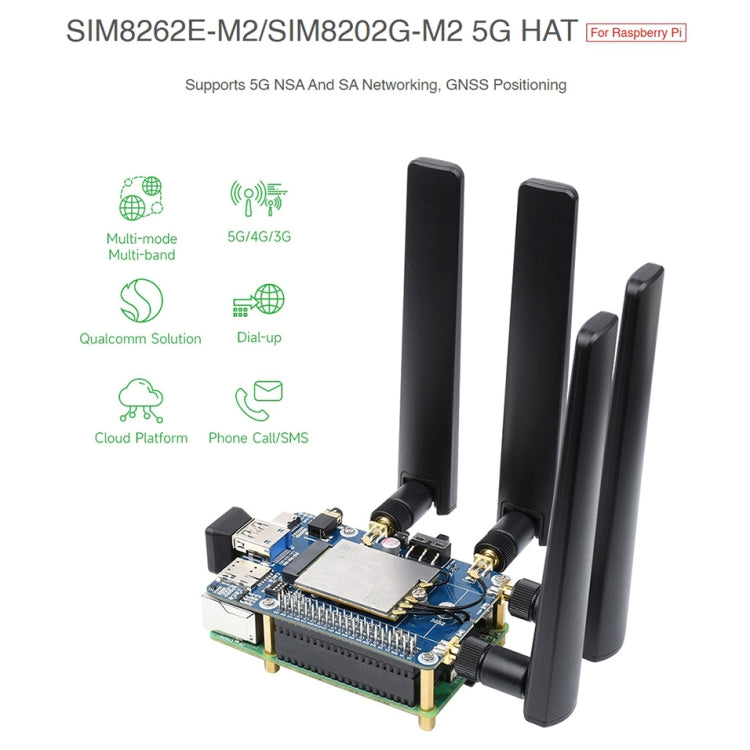

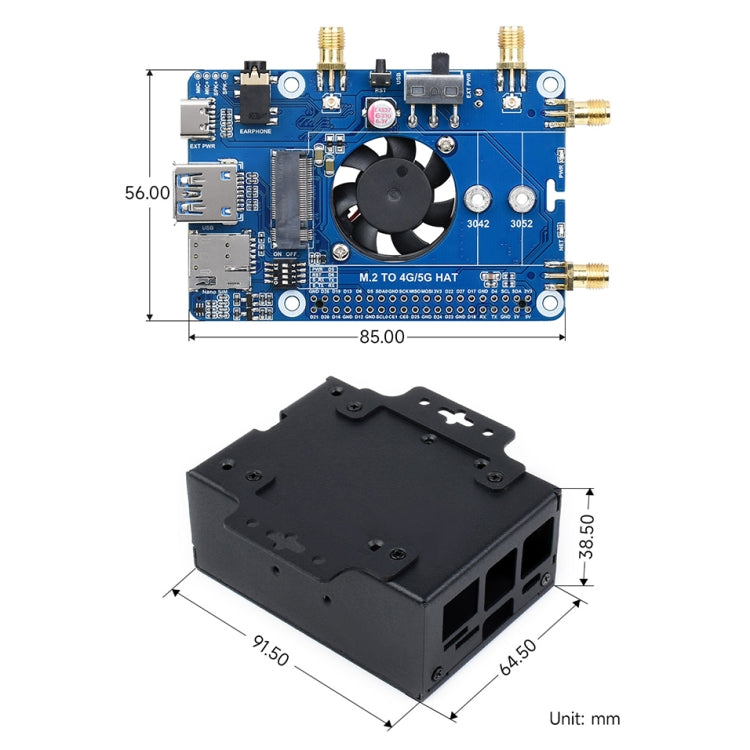

SIM8202G-M2 5G HAT for Raspberry Pi, Single Band

1. Based on Qualcomm platform, supports 5G NSA and SA networks, supports multi-mode and multi-band

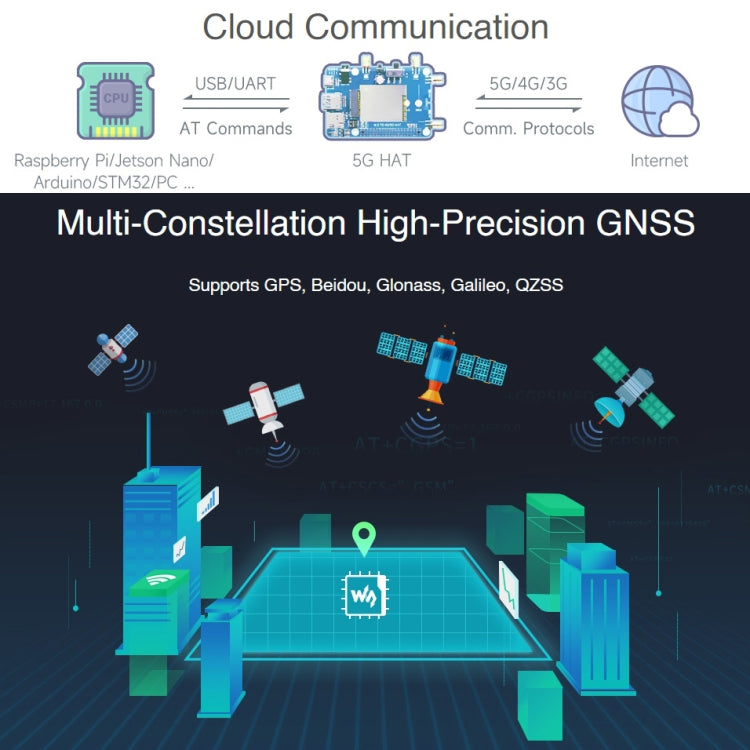

2. Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo and QZSS

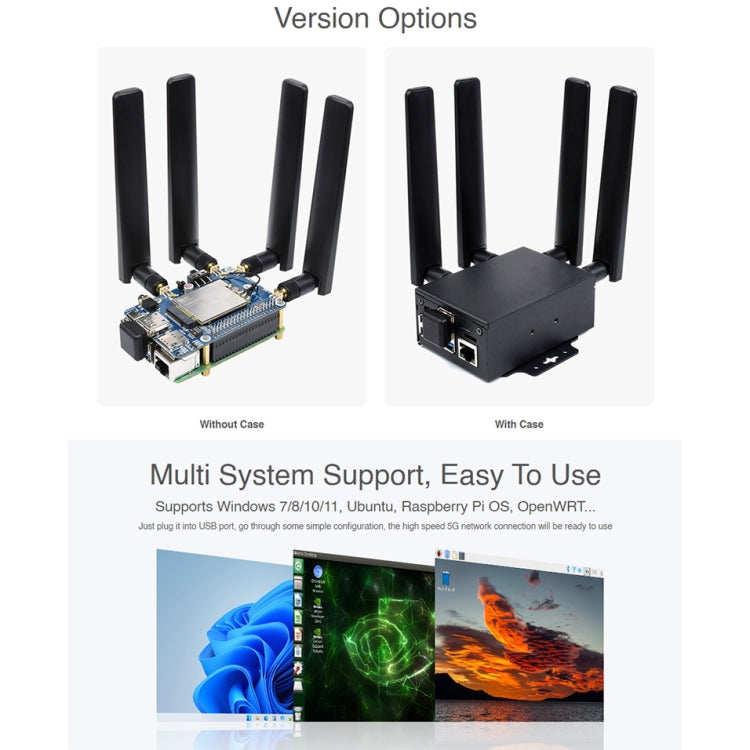

3. OS Support: Windows/Linux/Android

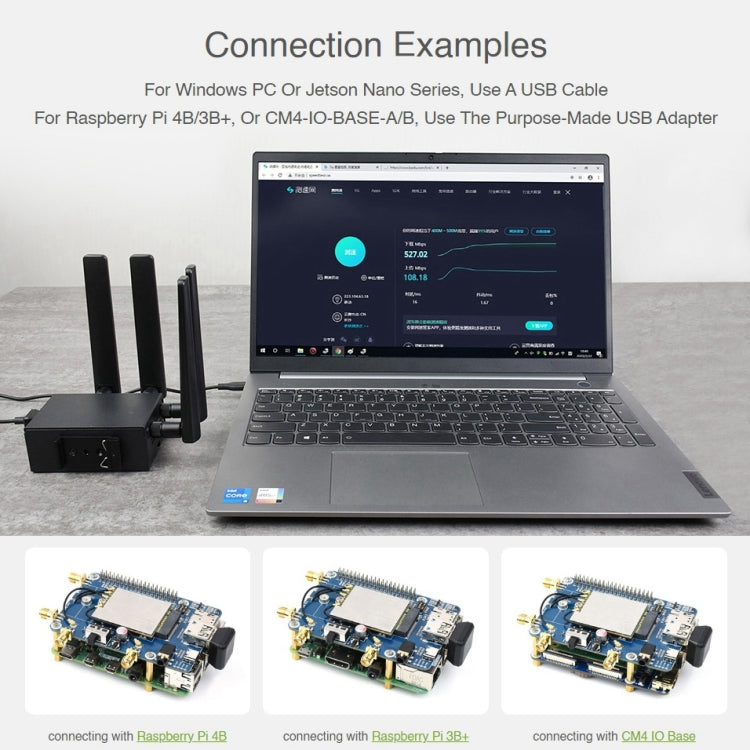

4. USB 3.1 port (compatible with USB 2.0) for connecting to PC, Raspberry Pi or Jetson Nano host board to enable high-speed 5G communication
5. Standard M.2 B KEY slot, compatible with various 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 series
6. Built-in UART, PWR and RST control pins, built-in voltage level translator, enabled via DIP switch, for use with hosts such as Raspberry Pi or Arduino
7. Built-in USB-C connector, enabled by switch, for connecting autonomous power supply for the module, enables multiple loads, stable and flexible power supply
8. Built-in power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the working status
9. 4 SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
10. 2 SIM card slots, single standby for dual card, switchable by AT command

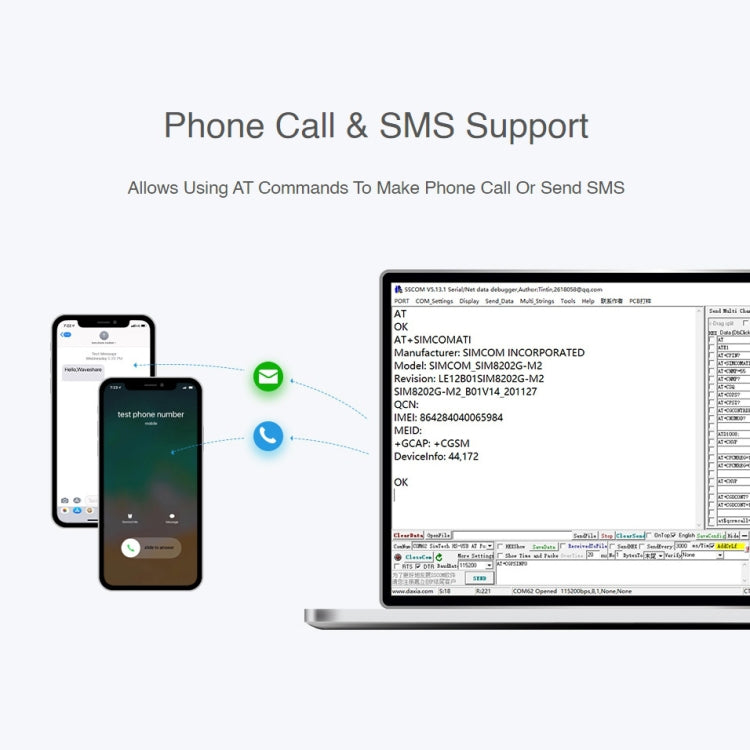

11. Built-in audio jack and audio decoder, enables audio operation such as making a phone call
12. High efficiency power circuit, output current up to 3A
