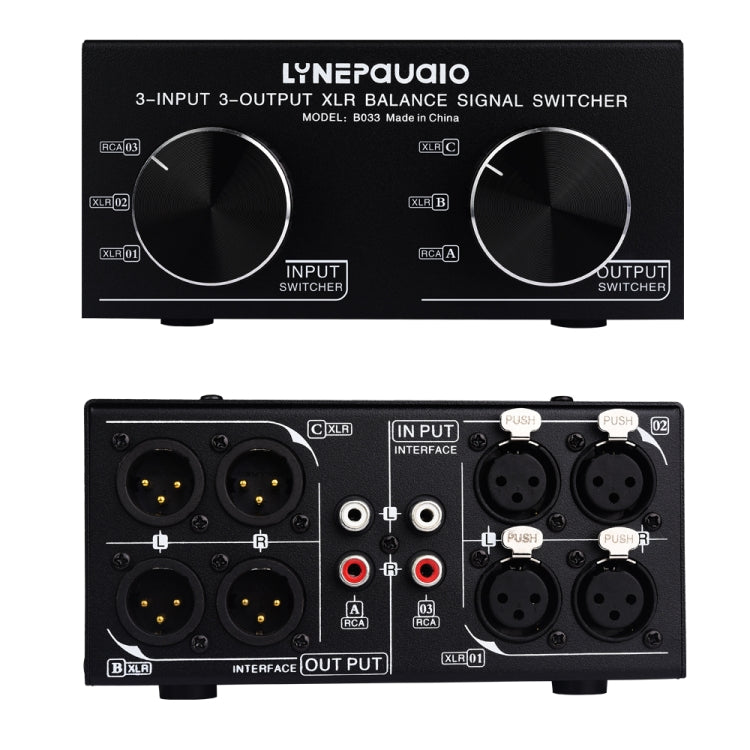

Passive stereo selector with fully balanced XLR signal from 3 inputs to 3 outputs, B033
€53,38
Disponibile
Functions: Do you have 2 sets of balanced XLR signal devices with 2 sets of balanced XLR signal outputs that need to be connected and locked? Want to get a balanced XLR signal on an...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Functions:
Do you have 2 sets of balanced XLR signal devices with 2 sets of balanced XLR signal outputs that need to be connected and locked?
Want to get a balanced XLR signal on an unbalanced RCA signal? Stuck with an unbalanced RCA signal on a balanced XLR signal?
A powerful balanced signal stereo selector switch can solve the problem of connecting and linking multiple devices. No external power supply, no switching loss.
1. Two groups of XLR signal input, two groups of XLR signal output, one group of RCA connection input and output.
2. Input and output by independent 3-position rotary mechanical switching, switching by high-precision silver-plated contact lossless switching.
3. The rotary switch switching operation will not produce explosive sound, the sound quality does not affect the transmission without loss.
4. Easy to install: Input and output with plug-and-play connection line, easy to install. Signal source transmission without switching loss, you can enjoy a different listening experience.
5. Mainly used to choose to switch a variety of balanced stereo signal inputs to share the output of a set or multiple sets of equipment. Such as multiple stereo signal sources (preamplifiers, CD players, decoders, high-end players and other equipment) need to be output to the amplifier or active speakers.
6. Simple operation, balanced signal selection switch to solve the complicated line connection operation. The need to input the signal source of the device is connected to the switcher can be selected easily and conveniently.
7. This product can achieve three interface conversion modes: XLR to XLR, XLR to RCA, RCA to XLR.
Product parameter:
1. Material: Metal iron shell
2. Interface: XLR and RCA interface
3. Power supply: No external power, plug and play
4. Input and output impedance: 10Kohm - 50Kohm
5. Frequency response: 20-20 kHz
6. Distortion: less than 0.002%
7. Output loss: less than 0.01dB
8. Signal gain: 0dB
9. Signal to Noise Ratio S/N: greater than 98 dB
10. Input and output interface: Standard XLR and RCA interface
11. Number of input channels: 3 groups of gear shift inputs (cannot be entered at the same time, 3 select 1 input)
12. Number of output channels: 3 groups of gear shift output (can not be output at the same time, 3 select 1 output)
13. Control switch: High precision silver-plated contact switch, precise selection of manual switching switch
14. Net weight of single product: 0.69 kg
15. Gross weight with packaging: 0.85 kg
16. Product Dimensions: L152mm X W107mm X H71mm
17. Package Dimensions: L210mm X W185mm X H95mm
List of packages
- B033 3-input 3-output fully balanced audio signal selector x 1
