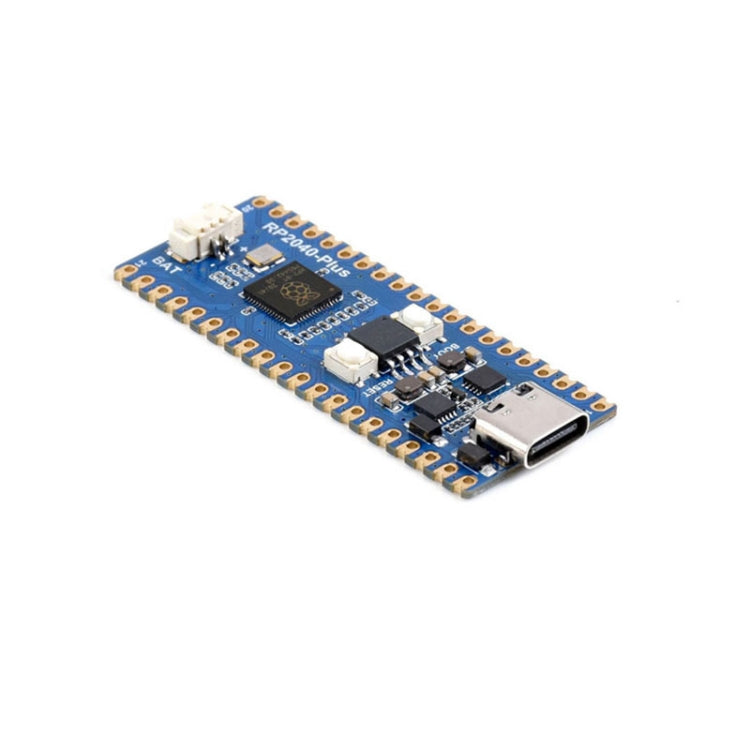

Waveshare RP2040-Plus Pico-like MCU board based on Raspberry Pi RP2040 MCU, without pinheader, RP2040-Plus without Pinheader

Need more Flash for Raspberry Pi Pico? Don't like the outdated micro USB connector? All these problems are solved by our RP2040-PLUS now.
Like the Raspberry Pi Pico itself, it incorporates the RP2040 microcontroller, with dual-core Cortex M0+ processor running at up to 133MHz and 26x multifunction PING GPIOs.
What is different, it features onboard 4MB flash, USB-C connector, charging header and higher current CC-DC chip.

Key features include:
1. RP2040 Microcontroller Chip Designed by Raspberry PI in the UK
2. Brame Cortex M0+ Dual-Core Processor, flexible clock running up to 133MHz
3. 264KB of SRAM and 4MB of onboard flash memory
4. USB-C connector, keep it up to date, easier to use
5. Lithium battery charging / discharging header, suitable for mobile devices
6. Onboard TPS63000 DC-DC chip, high efficiency DC-DC Buck-Boost Chip, switch current 1.8A
7. Castellated module allows direct welding to carrier boards
8. USB 1.1 with device and host support
9. Low power sleep and sleep modes
10. Drag-and-drop programming using USB mass storage
11. 26 x Multifunctional GPIO Pins
12. 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
13. Accurate clock and on-chip timer
14. Temperature sensor
15. On-chip accelerated floating point libraries
16. 8 X programmable I/O (PIO) state machines for custom peripheral support
