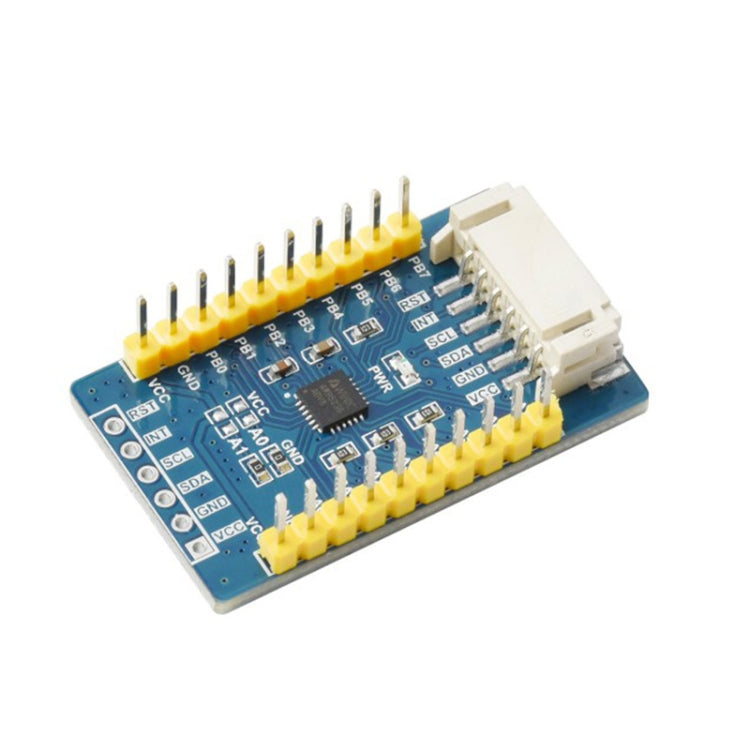

Waveshare AW9523B IO Expansion Board, I2C Interface, Expands 16 I/O Pins
€5,87
Disponibile
Characteristics 1. The I2C bus allows you to expand 16 I/O ports using only two wires 2. Support 16-channel common anode constant current LED driving, 256-step linear dimming, current controllable 3. Output interrupt signal (INT)...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Characteristics
1. The I2C bus allows you to expand 16 I/O ports using only two wires
2. Support 16-channel common anode constant current LED driving, 256-step linear dimming, current controllable
3. Output interrupt signal (INT) when the state of an input port changes
4. I2C address configurable by shorting jumpers A0/A1
5. Provide two connector options: PH2.0 header and/or solder pads, allows you to stack multiple I2C modules
6. Built-in voltage translator, compatible with 3.3V/5V level
7. Come with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Specifications
1. Working voltage: 2.4-5.5V
2. Working temperature: -40-85 degrees c
3. Low standby current: less than 0.1uA
4. Control interface: I2C
5. I/O expansion pins: 16
6. Dimensions: 38x23 mm
List of packages
1. AW9523B IO expansion board x 1
2. PH2.0 6PIN cable x 1
1. The I2C bus allows you to expand 16 I/O ports using only two wires
2. Support 16-channel common anode constant current LED driving, 256-step linear dimming, current controllable
3. Output interrupt signal (INT) when the state of an input port changes
4. I2C address configurable by shorting jumpers A0/A1
5. Provide two connector options: PH2.0 header and/or solder pads, allows you to stack multiple I2C modules
6. Built-in voltage translator, compatible with 3.3V/5V level
7. Come with development resources and manual (examples for Raspberry Pi / micro:bit / Arduino / STM32)
Specifications
1. Working voltage: 2.4-5.5V
2. Working temperature: -40-85 degrees c
3. Low standby current: less than 0.1uA
4. Control interface: I2C
5. I/O expansion pins: 16
6. Dimensions: 38x23 mm
List of packages
1. AW9523B IO expansion board x 1
2. PH2.0 6PIN cable x 1
