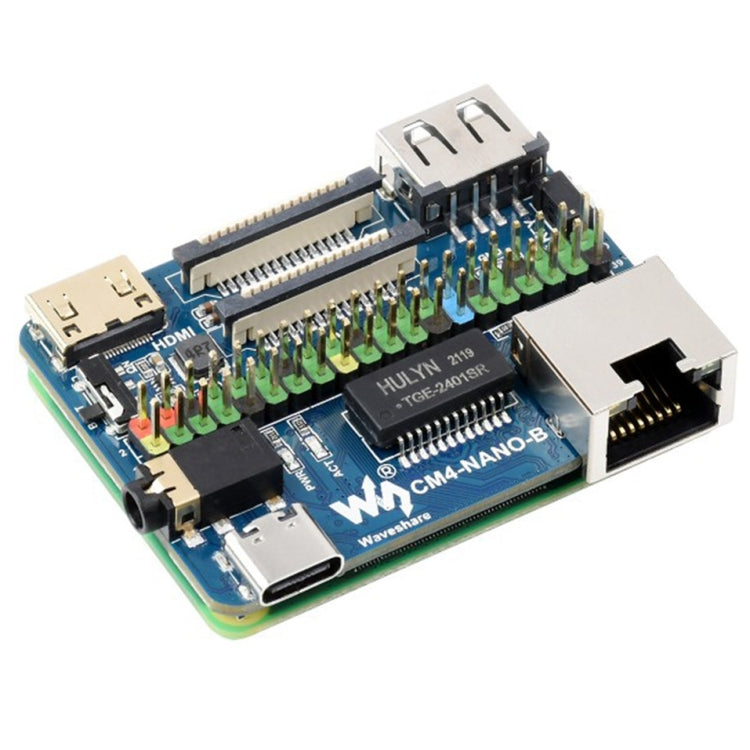

Waveshare Nano B Base Board for Raspberry Pi CM4, Nano Base Board B
€17,25
Disponibile
1. Suitable for evaluating the Raspberry Pi CM4 or integrating into end products 2. Standard CM4 socket, 40pin GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm audio jack... 3. All in the compact body just like...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Suitable for evaluating the Raspberry Pi CM4 or integrating into end products
2. Standard CM4 socket, 40pin GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm audio jack...
3. All in the compact body just like the size of CM4
Specifications:
1. CM4 Company: Suitable for all variants of the calculation module 4
2. Networking: Gigabit Ethernet RJ45 connector
3. Connector: Raspberry Pi 40Pin GPIO Header x 1
4. USB: USB 2.0 Type A Connector X 1
5. Display: MIPI DSI Port X 1 (1.0mm 15pin FPC connector)
6. Camera: MIPI CSI-2 X 1 port (1.0mm 15pin FPC connector)
7. Video: Mini HDMI Port x 1, supports 4K 30fps output
8. Audio: 3.5mm jack
9. Storage: Micro SD card socket for the Compute Module 4 lite (without EMMC) variants
10. Power input: 5V
11. Size: 56 x 41mm
Package List:
1. CM4-Nano-B X 1
3. 2**20pin color coding Pinestar x 1
