Prodotto selezionato

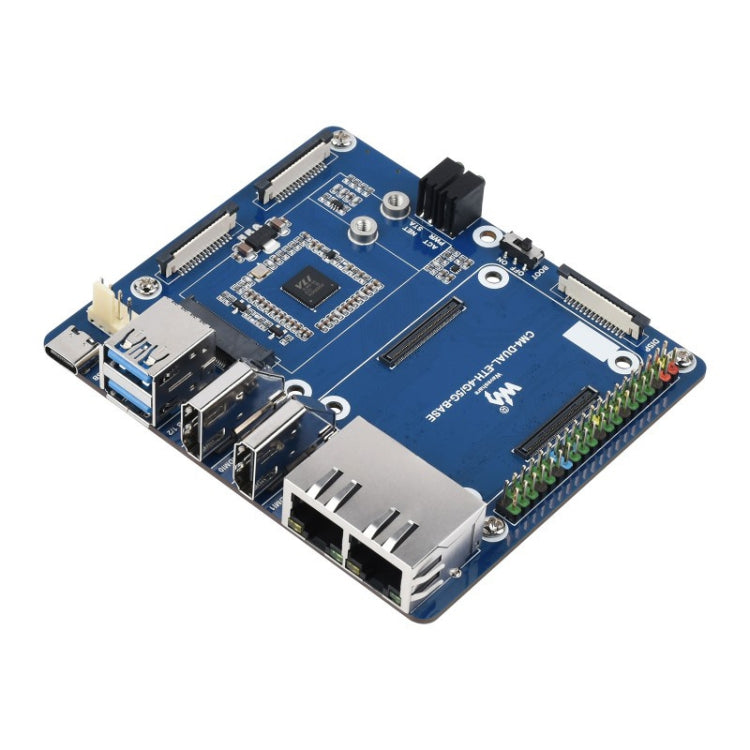

Waveshare Dual Gigabit Ethernet 5G/4G baseboard for Raspberry Pi CM4
€56,77
Disponibile
Specifications B> 1. Socket cm4: suitable for all variants of the calculation module 4 2. Network: - Ethernet: Dual Gigabit Ethernet RJ45 - M.2 B button, for connecting the 5G / 4G module - Nano-SIM...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Specifications B>
1. Socket cm4: suitable for all variants of the calculation module 4
2. Network:
- Ethernet: Dual Gigabit Ethernet RJ45
- M.2 B button, for connecting the 5G / 4G module
- Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB 3.2 GEN1 x 2
4. PIN Header: Raspberry PI 40PIN GPIO Headerx 1
5. Display: DSI MIPI PORT (15 PIN 1.0mm FPC connector)
6. Camera: MIPI CSI-2 X 2 PORT (15 PIN 1.0mm FPC connector)
7. Video: HDMI X 2, support 4K 30FPS output
8. RTC: Real-time clock with battery power and wake-up capability Computing module 4
9. Storage: microSD card socket for Compute Module 4 Lite (without EMMC) Variants
10. Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V / 2.5a
12. Dimensions: 99.6 x 87.0mm
1. Socket cm4: suitable for all variants of the calculation module 4
2. Network:
- Ethernet: Dual Gigabit Ethernet RJ45
- M.2 B button, for connecting the 5G / 4G module
- Nano-SIM card slot, support standard Nano-SIM card for 5G/4G/3G/2G communication
3. USB 3.2 GEN1 x 2
4. PIN Header: Raspberry PI 40PIN GPIO Headerx 1
5. Display: DSI MIPI PORT (15 PIN 1.0mm FPC connector)
6. Camera: MIPI CSI-2 X 2 PORT (15 PIN 1.0mm FPC connector)
7. Video: HDMI X 2, support 4K 30FPS output
8. RTC: Real-time clock with battery power and wake-up capability Computing module 4
9. Storage: microSD card socket for Compute Module 4 Lite (without EMMC) Variants
10. Fan header: 5V/12V (12V by default), allows speed adjustment and measurement
11. Power input: 5V / 2.5a
12. Dimensions: 99.6 x 87.0mm
