Descrizione prodotto
Characteristics
The intelligent robot is a project of electronics enthusiasts and there have been several Raspberry Pi Zero W, 3B+, 4B based robots in the Waveshare product line. Now, here comes the Pico version: PicoGo!

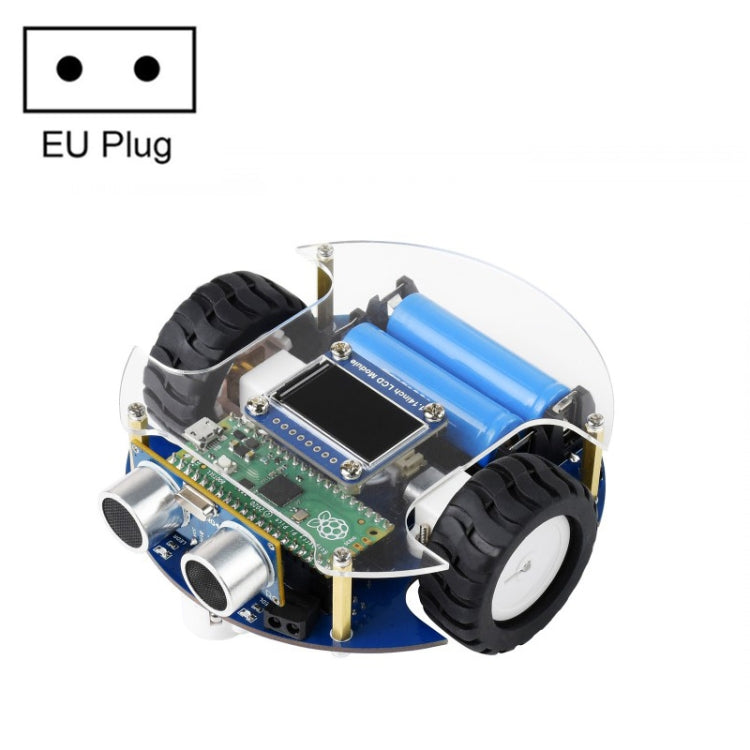

PicoGo is an intelligent mobile robot based on Raspberry Pi Pico, it includes ultrasonic module, LCD module, Bluetooth module, line following module and obstacle avoidance module, all these functions are highly integrated to easily achieve IR obstacle avoidance, automatic line following, BT/IR remote control and more. With various advanced features, it will help you get started quickly with intelligent robot design and development.
Features of the PicoGo intelligent mobile robot:
1. Standard Raspberry Pi Pico header, support Raspberry Pi Pico series
2. Battery protection circuit: Overcharge/discharge protection, overcurrent protection, short circuit protection, reverse-proof, more stable and safe operation
3. Charging/discharging circuit, allows programming/debugging simultaneously while charging
4. 5-channel infrared sensor, analog output, combined with PID algorithm, stable line tracking
5. Built-in multiple intelligent robot sensors such as line tracking, obstacle avoidance, no more messy wiring
6. 1.14 inch IPS colorful LCD display, 240 x 135 pixels, 65,000 colors
7. Integrate BT module, enable remote operations such as robot movement, RGB LED display color, buzzer, etc. by using mobile phone APP
8. N20 micro gear motor, with metal gears, low noise, high precision
9. Colorful RGB LED, really cool!
Raspberry Pi Pico Controller Board Features:
1. RP2040 microcontroller chip designed by Raspberry Pi in the UK
2. Dual-core Arm Cortex M0+ processor, flexible clock up to 133 MHz
3. 264KB of SRAM and 2MB of onboard Flash memory
4. USB 1.1 with host and device support
5. Low-power sleep and dormancy modes
6. Drag-and-drop programming via USB mass storage
List of packages
1. Raspberry Pi Pico (pre-soldered header) x1
2. PicoGo x1 Base Board
3. PicoGo Acrylic Panel x1
4. 1.14 inch LCD module x1
5. Ultrasonic sensor x1
6. Power supply 5V 3A x1
7. IR remote control x1
8. USB-A to micro-B cable 1.2m x1
9. 5cm 8-pin PH2.0 cable with opposite side connectors x1
10. Mini cross wrench sleeve x1
11. Screwdriver x1
12. Screws and spacers pack x1
The intelligent robot is a project of electronics enthusiasts and there have been several Raspberry Pi Zero W, 3B+, 4B based robots in the Waveshare product line. Now, here comes the Pico version: PicoGo!
PicoGo is an intelligent mobile robot based on Raspberry Pi Pico, it includes ultrasonic module, LCD module, Bluetooth module, line following module and obstacle avoidance module, all these functions are highly integrated to easily achieve IR obstacle avoidance, automatic line following, BT/IR remote control and more. With various advanced features, it will help you get started quickly with intelligent robot design and development.
Features of the PicoGo intelligent mobile robot:
1. Standard Raspberry Pi Pico header, support Raspberry Pi Pico series
2. Battery protection circuit: Overcharge/discharge protection, overcurrent protection, short circuit protection, reverse-proof, more stable and safe operation
3. Charging/discharging circuit, allows programming/debugging simultaneously while charging
4. 5-channel infrared sensor, analog output, combined with PID algorithm, stable line tracking
5. Built-in multiple intelligent robot sensors such as line tracking, obstacle avoidance, no more messy wiring
6. 1.14 inch IPS colorful LCD display, 240 x 135 pixels, 65,000 colors
7. Integrate BT module, enable remote operations such as robot movement, RGB LED display color, buzzer, etc. by using mobile phone APP
8. N20 micro gear motor, with metal gears, low noise, high precision
9. Colorful RGB LED, really cool!
Raspberry Pi Pico Controller Board Features:
1. RP2040 microcontroller chip designed by Raspberry Pi in the UK
2. Dual-core Arm Cortex M0+ processor, flexible clock up to 133 MHz
3. 264KB of SRAM and 2MB of onboard Flash memory
4. USB 1.1 with host and device support
5. Low-power sleep and dormancy modes
6. Drag-and-drop programming via USB mass storage
List of packages
1. Raspberry Pi Pico (pre-soldered header) x1
2. PicoGo x1 Base Board
3. PicoGo Acrylic Panel x1
4. 1.14 inch LCD module x1
5. Ultrasonic sensor x1
6. Power supply 5V 3A x1
7. IR remote control x1
8. USB-A to micro-B cable 1.2m x1
9. 5cm 8-pin PH2.0 cable with opposite side connectors x1
10. Mini cross wrench sleeve x1
11. Screwdriver x1
12. Screws and spacers pack x1
Size:
| package weight |
|
