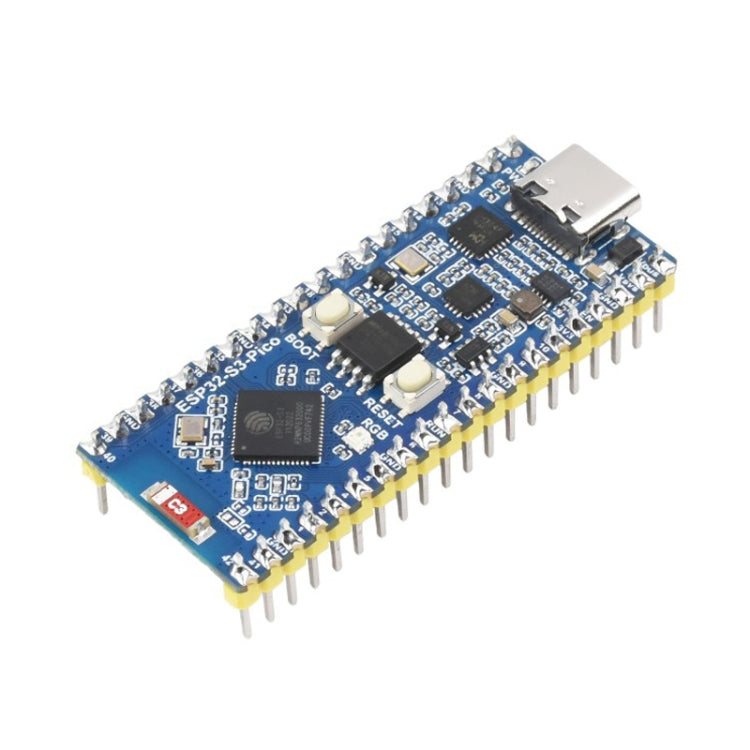

Waveshare ESP32-S3 Microcontroller Dual-Core Processor with 2.4GHz Wi-Fi Development Board, 24023
€12,39
Disponibile
1. Support development environment, such as ESP-IDF, Arduino, MicroPython, etc. 2. LX7 32-bit Xtensa dual-core processor, 240 MHz 3. Easy to integrate, LX7 32-bit, 2MB PSRAM, wireless network, dual-core processor 4. Using ESP32-S3R2 chip, Xtensa...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Support development environment, such as ESP-IDF, Arduino, MicroPython, etc.
2. LX7 32-bit Xtensa dual-core processor, 240 MHz
3. Easy to integrate, LX7 32-bit, 2MB PSRAM, wireless network, dual-core processor
4. Using ESP32-S3R2 chip, Xtensa 32-bit LX7 dual-core processor, operating frequency 240mhz
5. Built-in 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB flash memory
6. Built-in 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with excellent RF performance
7. Type-C connector, more convenient to use
8. The built-in CH343 and CH334 chips can meet the needs of USB and UART development through the Type-C interface
9. Built-in MP28164 DC-DC chip, high efficiency DC-DC step-down boost chip, the load current can reach 2A
10. 27 multifunctional GPIO pins, configurable pin functions, enabling flexible development and integration
11. Abundant external interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-16bit camera interface), LCD interface (8-16bit parallel RGB, 18080, MOTO6800), etc., flexible realization of various functions
12. Embedded modules allow direct soldering to the carrier board
13. Support a variety of low-power working states, adjustable communication distance, data rate and power consumption balance, to meet the power consumption requirements of various application scenarios
14. Support Raspberry Pi Pico expansion board ecosystem, suitable for AI LoT application development
15. Support ESP-IDF, Arduino, MicroPython full SDK, development resources, tutorials, help you get started easily
16. ESP32-S3 is specially designed for AloT applications, using the Xtensa 32-bit LX7 dual-core processor with a frequency of up to 240MHz, powerful aluminum computing power and reliable security features
17. Support WIFI and BLE 5, ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 B/G/N) and 40mhz bandwidth to support its Bluetooth low energy subsystem to support Bluetooth 5 (LE) and Bluetooth Mesh
18. ESP32-S3: Xtensa 32-bit LX7 dual-core processor
19. 2.4G monopole ceramic antenna
20. W25Q128JVSIQ: 16MB Flash
21. Start button: Press to enter download mode after recovery
22. CH334F: USB HUB controller
23. CH343P: USB to UART chip
24. MP28164: High efficiency DC-DC step-down boost chip
25. Support multiple Pico expansion modules: Eval-Board, 3.5 inch LCD, 1.3 inch OLED, 8-segment LED, e-paper, NB-IoT module, GPIO expander, sensor module, RTC module, UPS module
2. LX7 32-bit Xtensa dual-core processor, 240 MHz
3. Easy to integrate, LX7 32-bit, 2MB PSRAM, wireless network, dual-core processor
4. Using ESP32-S3R2 chip, Xtensa 32-bit LX7 dual-core processor, operating frequency 240mhz
5. Built-in 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB flash memory
6. Built-in 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with excellent RF performance
7. Type-C connector, more convenient to use
8. The built-in CH343 and CH334 chips can meet the needs of USB and UART development through the Type-C interface
9. Built-in MP28164 DC-DC chip, high efficiency DC-DC step-down boost chip, the load current can reach 2A
10. 27 multifunctional GPIO pins, configurable pin functions, enabling flexible development and integration
11. Abundant external interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-16bit camera interface), LCD interface (8-16bit parallel RGB, 18080, MOTO6800), etc., flexible realization of various functions
12. Embedded modules allow direct soldering to the carrier board
13. Support a variety of low-power working states, adjustable communication distance, data rate and power consumption balance, to meet the power consumption requirements of various application scenarios
14. Support Raspberry Pi Pico expansion board ecosystem, suitable for AI LoT application development
15. Support ESP-IDF, Arduino, MicroPython full SDK, development resources, tutorials, help you get started easily
16. ESP32-S3 is specially designed for AloT applications, using the Xtensa 32-bit LX7 dual-core processor with a frequency of up to 240MHz, powerful aluminum computing power and reliable security features
17. Support WIFI and BLE 5, ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 B/G/N) and 40mhz bandwidth to support its Bluetooth low energy subsystem to support Bluetooth 5 (LE) and Bluetooth Mesh
18. ESP32-S3: Xtensa 32-bit LX7 dual-core processor
19. 2.4G monopole ceramic antenna
20. W25Q128JVSIQ: 16MB Flash
21. Start button: Press to enter download mode after recovery
22. CH334F: USB HUB controller
23. CH343P: USB to UART chip
24. MP28164: High efficiency DC-DC step-down boost chip
25. Support multiple Pico expansion modules: Eval-Board, 3.5 inch LCD, 1.3 inch OLED, 8-segment LED, e-paper, NB-IoT module, GPIO expander, sensor module, RTC module, UPS module
