Prodotto selezionato

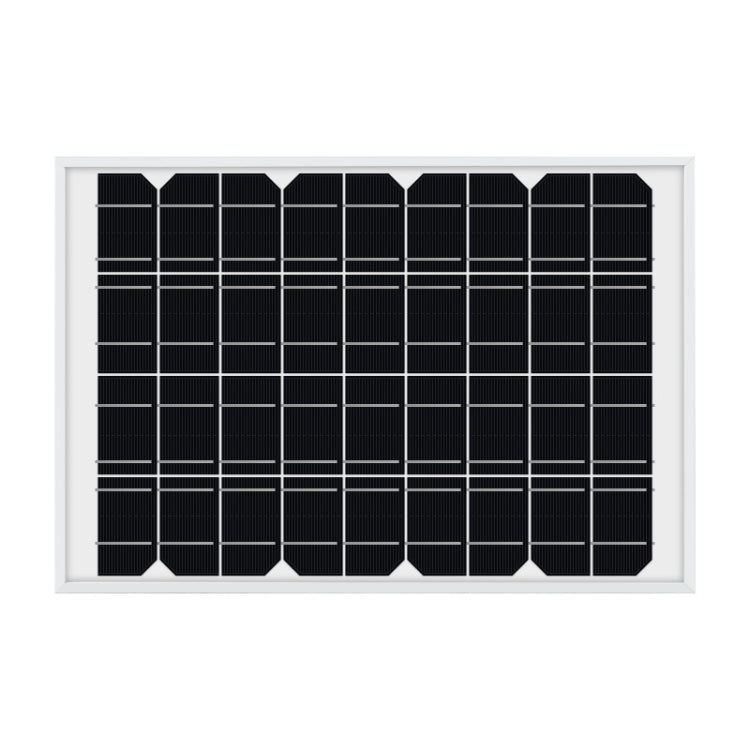

Waveshare High Conversion Efficiency Solar Panel 18V 10W, 19598
€13,59
Disponibile
1. Solar cell type: polysilicon 2. Power: 10 WP 3. Output power tolerance: +/- 3% 4. Conversion efficiency: greater than 20% 5. Operating voltage: 17.6V 6. Operating current: 0.57a 7. Open circuit voltage: 21.6V 8....
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Solar cell type: polysilicon
2. Power: 10 WP
3. Output power tolerance: +/- 3%
4. Conversion efficiency: greater than 20%
5. Operating voltage: 17.6V
6. Operating current: 0.57a
7. Open circuit voltage: 21.6V
8. Short circuit current: 0.61a
9. Cell quantity: 36 (4x9)
10. Standard system voltage: 1000V
11. Operating temperature: -40 degrees c ~ +85 degrees c
12. Pressure on the panel: 30m/s (200kg/m2) (max)
13. Cable length: 90cm
14. Frame material: anode oxidation aluminum alloy
15. Dimensions: 340 x 232 x 17 mm
19. Weight: 0.935 kg
2. Power: 10 WP
3. Output power tolerance: +/- 3%
4. Conversion efficiency: greater than 20%
5. Operating voltage: 17.6V
6. Operating current: 0.57a
7. Open circuit voltage: 21.6V
8. Short circuit current: 0.61a
9. Cell quantity: 36 (4x9)
10. Standard system voltage: 1000V
11. Operating temperature: -40 degrees c ~ +85 degrees c
12. Pressure on the panel: 30m/s (200kg/m2) (max)
13. Cable length: 90cm
14. Frame material: anode oxidation aluminum alloy
15. Dimensions: 340 x 232 x 17 mm
19. Weight: 0.935 kg
Size:
| package weight |
|
