Waveshare 18V 10W Polycrystalline Silicon Semi-Flexible Solar Panel, 24167
€15,81
Disponibile
1. Using semi-flexible polysilicon solar panels, lightweight and portable, easy to use outdoors 2. Integrate 5V voltage stabilization circuit and bring out 2 USB ports, which can be powered by external 5V devices via USB,...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Using semi-flexible polysilicon solar panels, lightweight and portable, easy to use outdoors

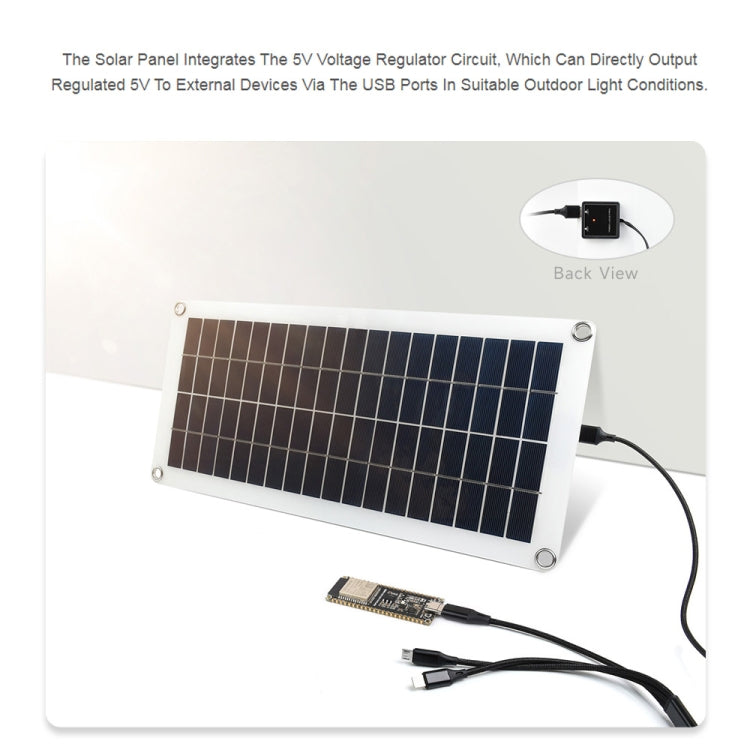

2. Integrate 5V voltage stabilization circuit and bring out 2 USB ports, which can be powered by external 5V devices via USB, with working light

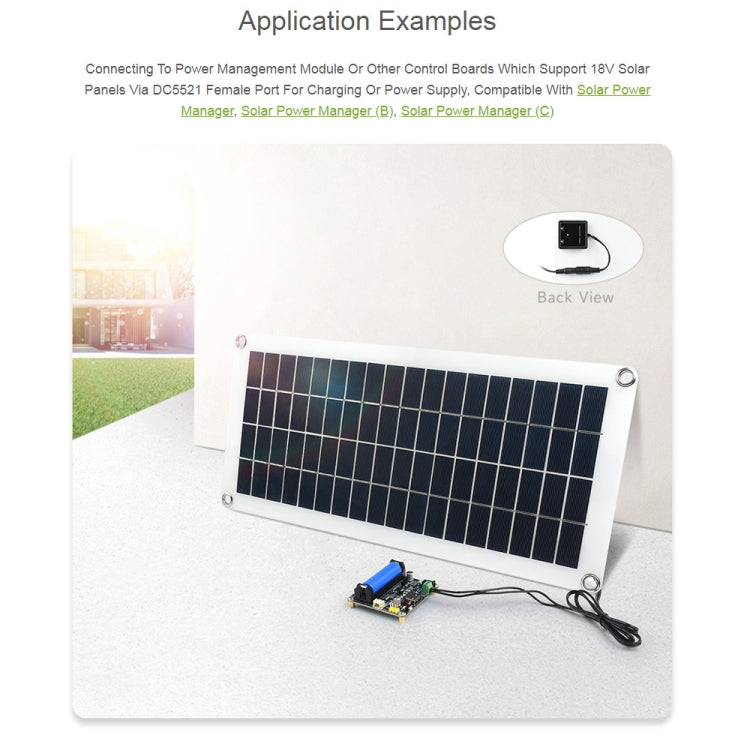

3. Reserve the DC5521 power interface, which can be used to connect to a power management module or controller that supports 18V solar panels
4. Comes with a variety of accessories and adapter cables for easy use
Parameter:
1. Solar cells: polysilicon
2. Surface material: semi-flexible laminate (not excessively bent)
3. Solar panel power: 10W

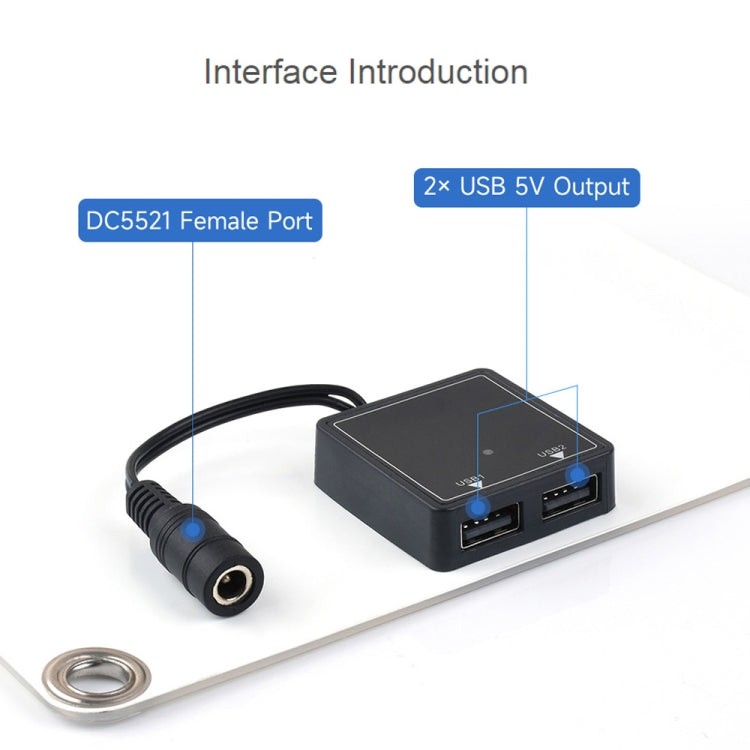

4. Output interface:
DC5521 Female Port
- The solar panel is not converted, and the power interface is directly output
- Working voltage: 18V +/-5%
- Working current: 600 mA +/- 5% (maximum)
- Open circuit voltage: 21.6V +/- 5%
Dual 5V USB ports:
- After the solar panel passes through the 5V voltage regulator circuit, the output power interface
- Working voltage: 5V (Enough power and stable output at 5V only if the sun is well illuminated; if there is no sunlight or the light is weak, the output voltage and power are insufficient, so it is not suitable for use)
- Output current: 1.5A (voltage regulator circuit can support 5V/3A output, but limited to -solar panel power supply, effective use of light and loss, 2-way total output up to 1.5A)

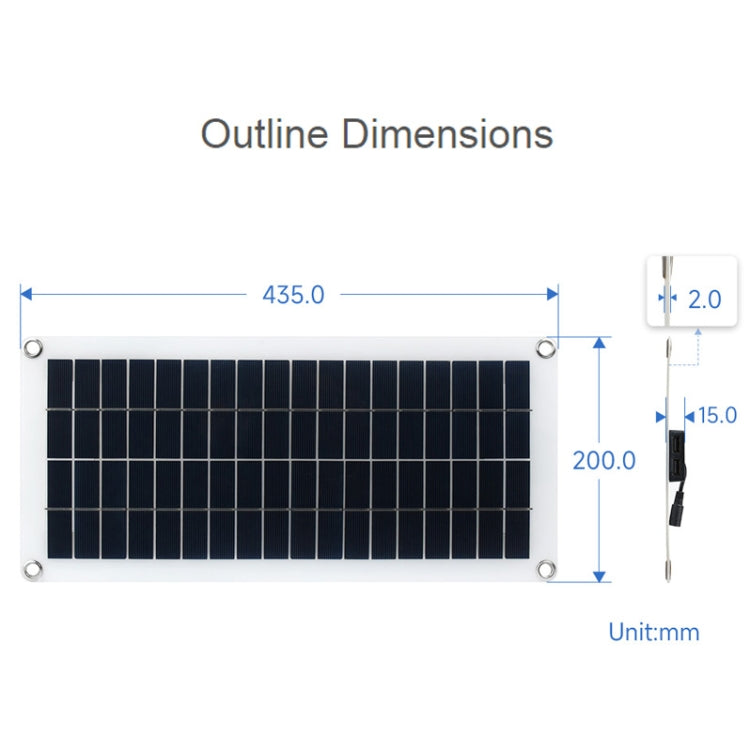

5. Product size: 435 × 200 mm
Note: The above parameters are tested under standard conditions (radiation intensity 1000W/m2, temperature 25 degrees Celsius, air quality AM1.5)
2. Integrate 5V voltage stabilization circuit and bring out 2 USB ports, which can be powered by external 5V devices via USB, with working light
3. Reserve the DC5521 power interface, which can be used to connect to a power management module or controller that supports 18V solar panels
4. Comes with a variety of accessories and adapter cables for easy use
Parameter:
1. Solar cells: polysilicon
2. Surface material: semi-flexible laminate (not excessively bent)
3. Solar panel power: 10W
4. Output interface:
DC5521 Female Port
- The solar panel is not converted, and the power interface is directly output
- Working voltage: 18V +/-5%
- Working current: 600 mA +/- 5% (maximum)
- Open circuit voltage: 21.6V +/- 5%
Dual 5V USB ports:
- After the solar panel passes through the 5V voltage regulator circuit, the output power interface
- Working voltage: 5V (Enough power and stable output at 5V only if the sun is well illuminated; if there is no sunlight or the light is weak, the output voltage and power are insufficient, so it is not suitable for use)
- Output current: 1.5A (voltage regulator circuit can support 5V/3A output, but limited to -solar panel power supply, effective use of light and loss, 2-way total output up to 1.5A)
5. Product size: 435 × 200 mm
Note: The above parameters are tested under standard conditions (radiation intensity 1000W/m2, temperature 25 degrees Celsius, air quality AM1.5)
