Prodotto selezionato

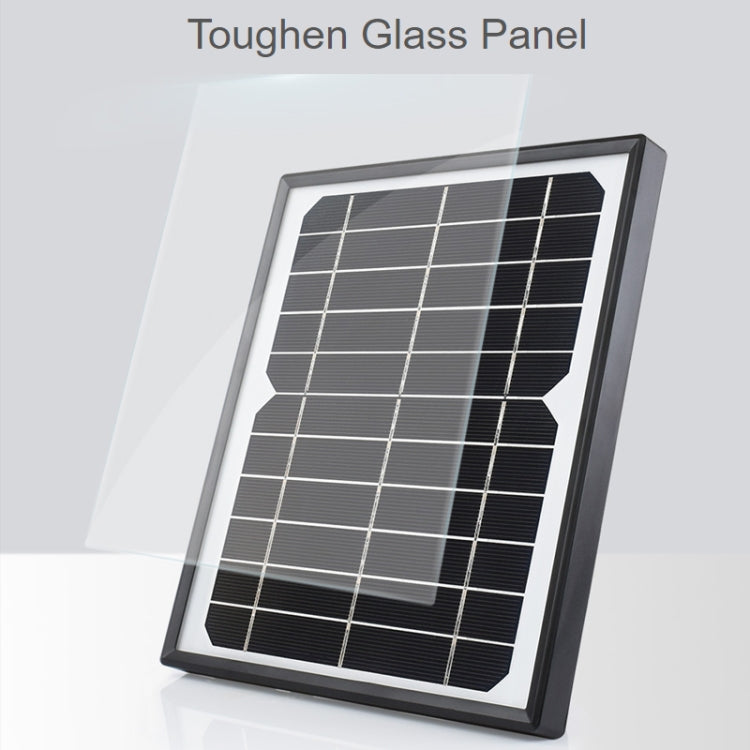

Waveshare Monocrystalline Silicon Solar Panel (5.5V 6W), Tempered Glass Surface, 24076
€12,95
Disponibile
1. High efficiency, waterproof and self-contained external bracket, easy to install 2. Connect the power management module or other control board that supports 5.5V solar panel charging or power supply, compatible with solar power managers...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto

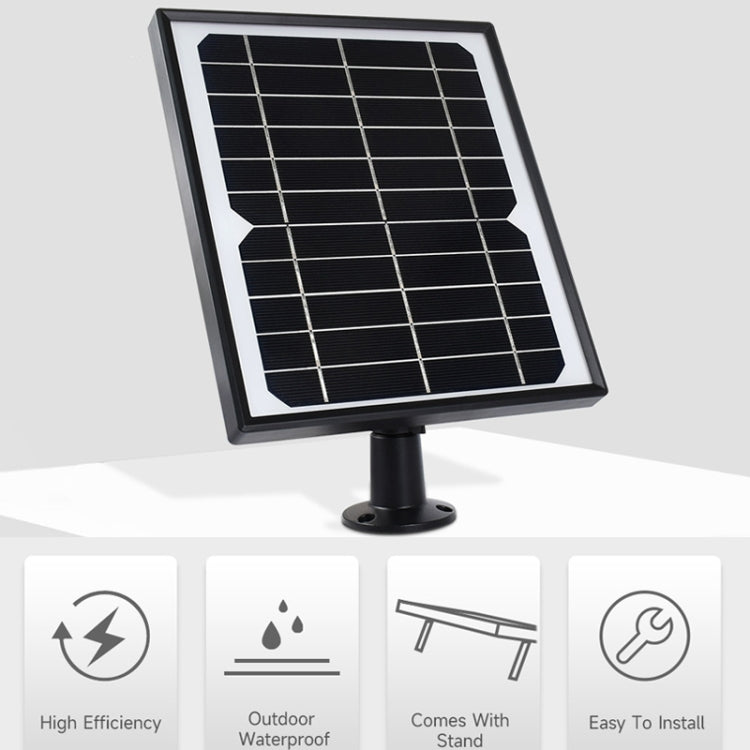

1. High efficiency, waterproof and self-contained external bracket, easy to install

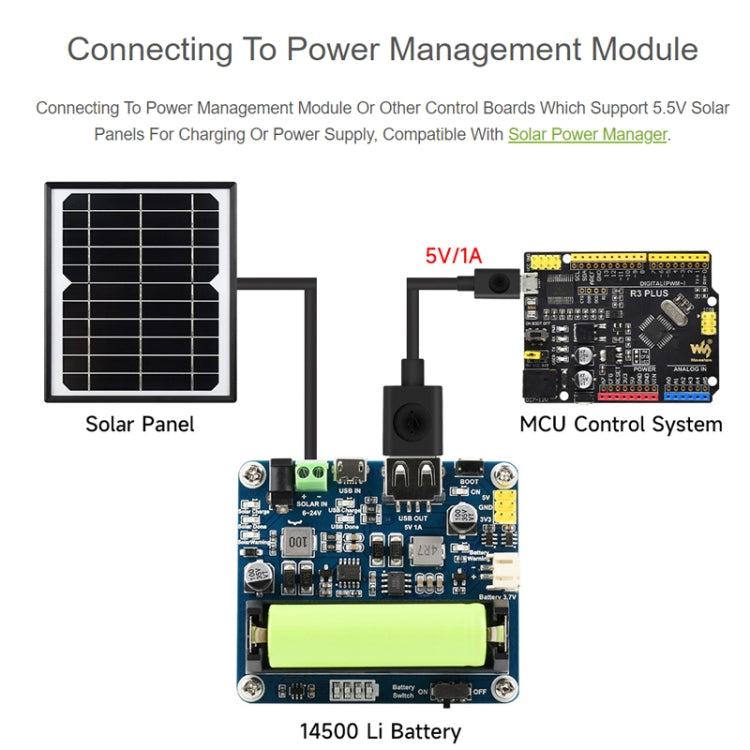

2. Connect the power management module or other control board that supports 5.5V solar panel charging or power supply, compatible with solar power managers
3. Working voltage: 5.5V
4. Working current: 1000 mA
5. Open circuit voltage: 7.2V
6. Short circuit current: 1090 mA
7. Output interface: Micro USB, USB/Type-C
8. Solar power: 6w

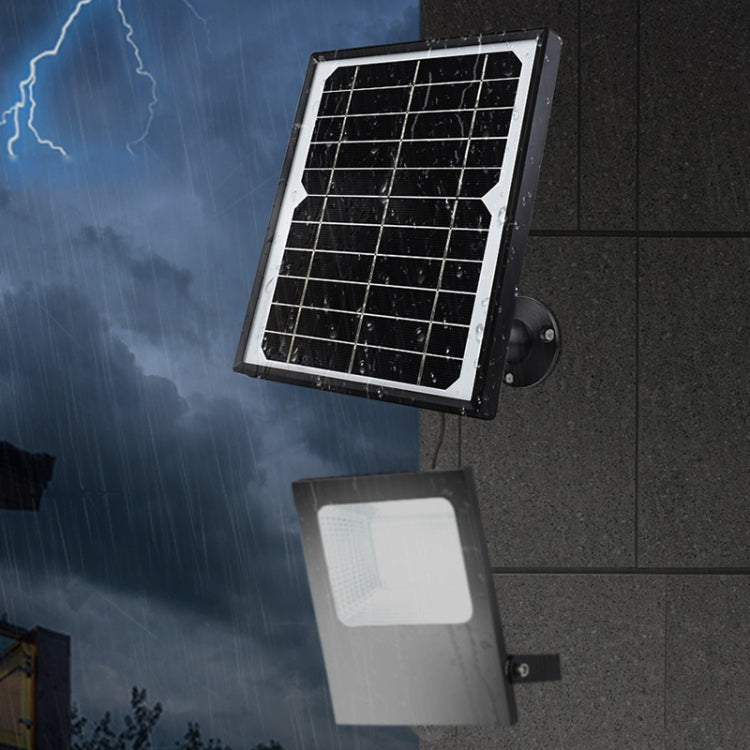

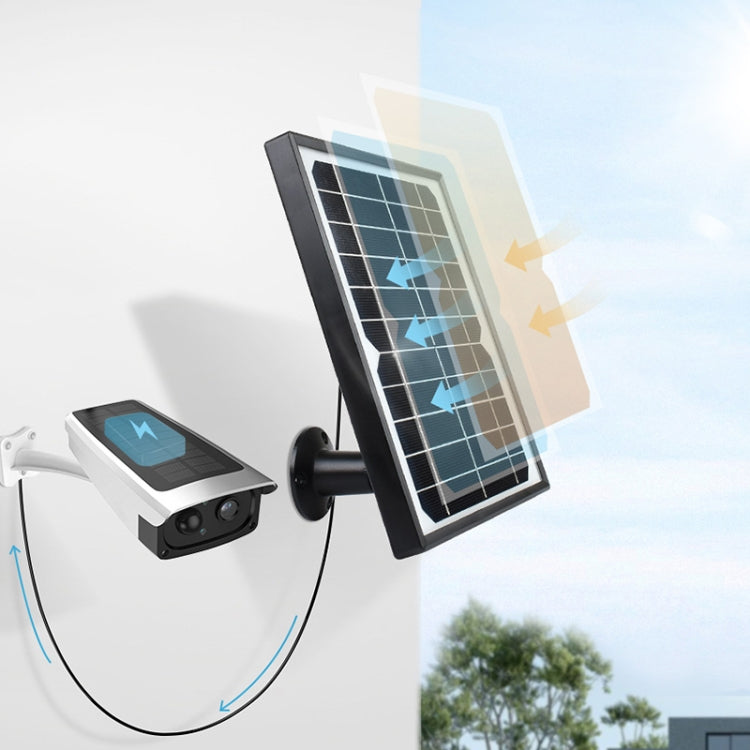

9. Application examples: It can be directly connected to external low-power intelligent electronic devices to support 5.5V solar panels via USB ports, such as monitoring equipment, doorbells, fans, emergency lights, etc.

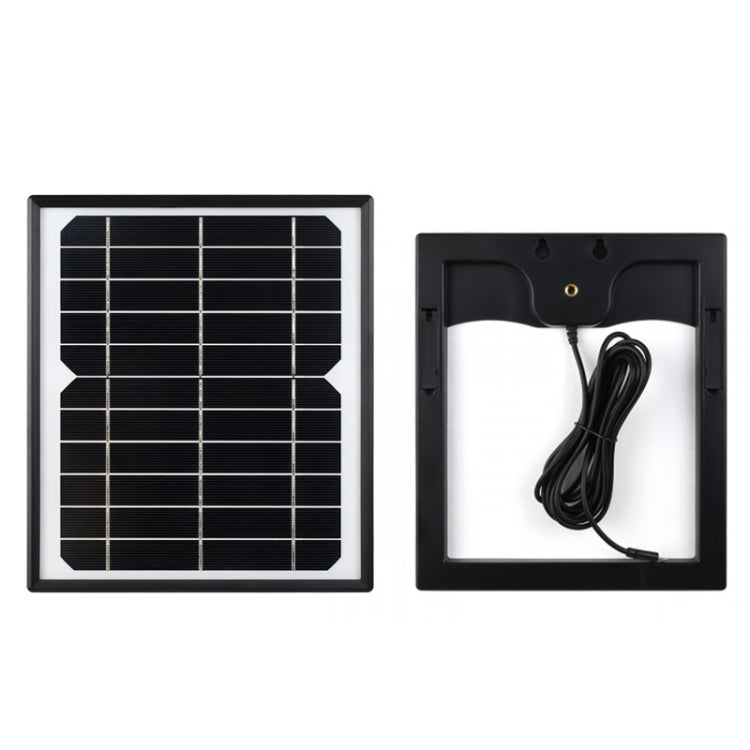

10. Cable length: 3 meters

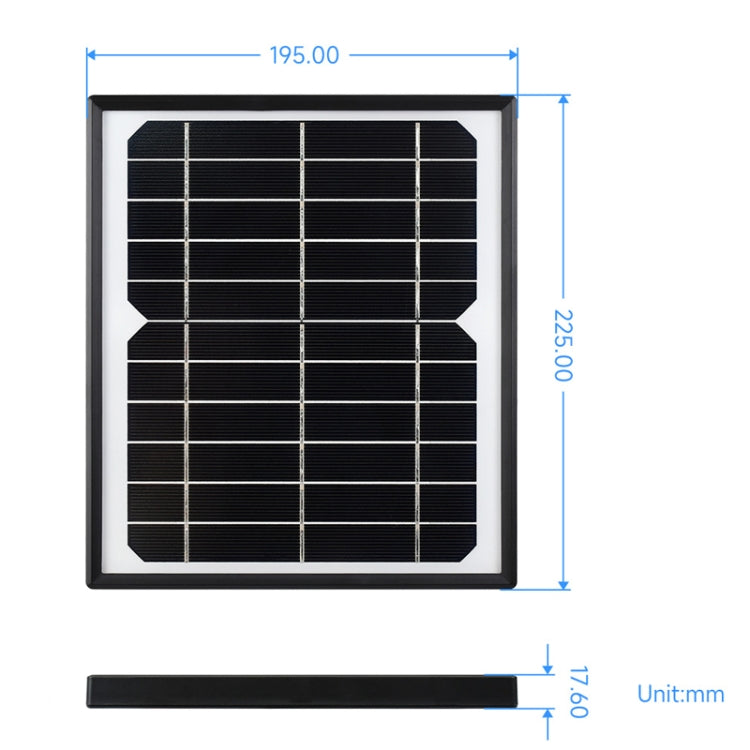

11. Dimensions: 225x195x17.6 mm

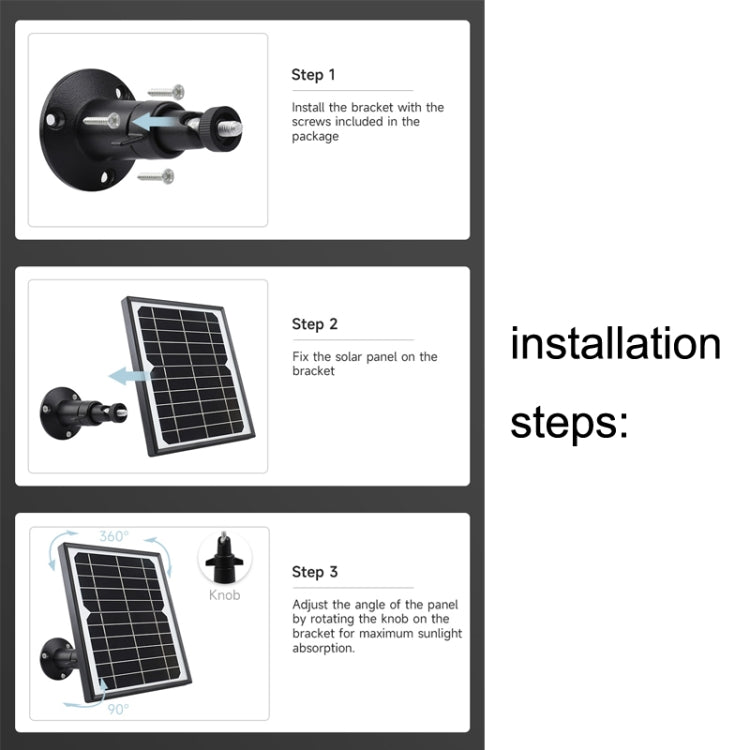

Installation steps:

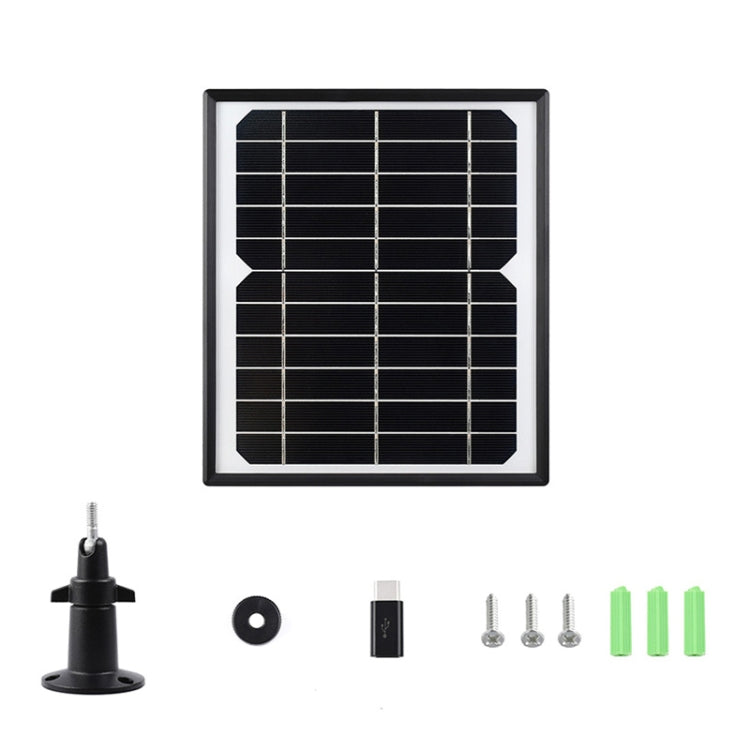

1. Install the bracket with the screws included in the package
2. Fix the solar panel on the bracket
3. Adjust the angle of the panel by rotating the knob on the mount to maximize sunlight absorption
2. Connect the power management module or other control board that supports 5.5V solar panel charging or power supply, compatible with solar power managers
3. Working voltage: 5.5V
4. Working current: 1000 mA
5. Open circuit voltage: 7.2V
6. Short circuit current: 1090 mA
7. Output interface: Micro USB, USB/Type-C
8. Solar power: 6w
9. Application examples: It can be directly connected to external low-power intelligent electronic devices to support 5.5V solar panels via USB ports, such as monitoring equipment, doorbells, fans, emergency lights, etc.
10. Cable length: 3 meters
11. Dimensions: 225x195x17.6 mm
Installation steps:
1. Install the bracket with the screws included in the package
2. Fix the solar panel on the bracket
3. Adjust the angle of the panel by rotating the knob on the mount to maximize sunlight absorption
Size:
| package weight |
|
