Waveshare RGB LED matrix panel, 3mm pitch, 64 x 64 pixels, adjustable brightness, 22100
€29,68
Disponibile
Characteristics As night falls, the dazzling neon lights of the streets and alleys illuminate the entire city, making it more dynamic. Of course, the color LED matrix panel is playing an important role. Maybe being...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Characteristics
As night falls, the dazzling neon lights of the streets and alleys illuminate the entire city, making it more dynamic. Of course, the color LED matrix panel is playing an important role. Maybe being at the doors of the shops, maybe being on the bus or taxi, you can always see animations or advertising videos. Sounds good? Why not try it?

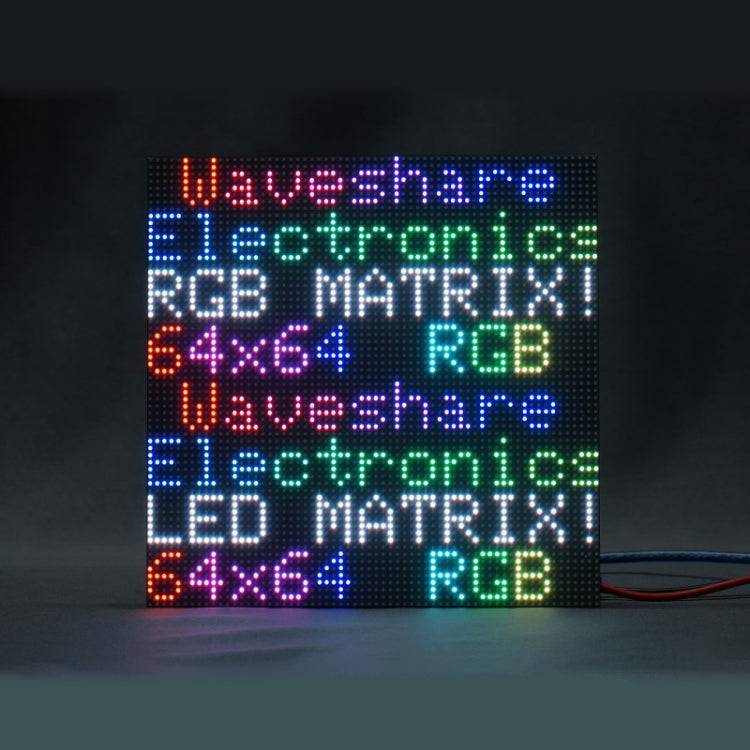

1. 4096 individual RGB LEDs, full color display, adjustable brightness
2. 64 x 64 pixels, 3 mm pitch, allows displaying text, colored images or animations
3. Size 192 x 192mm, moderate size, suitable for DIY desktop display or wall-mount display

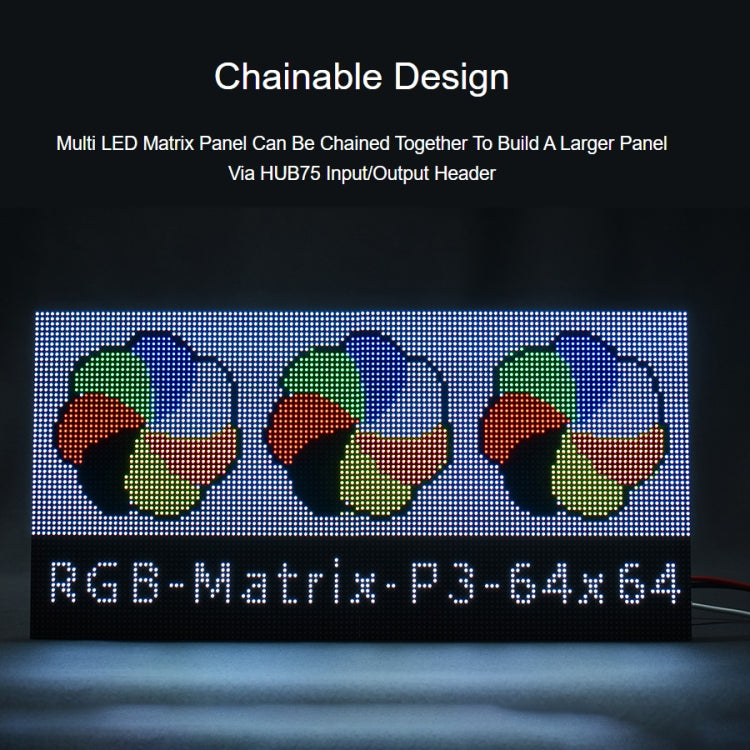

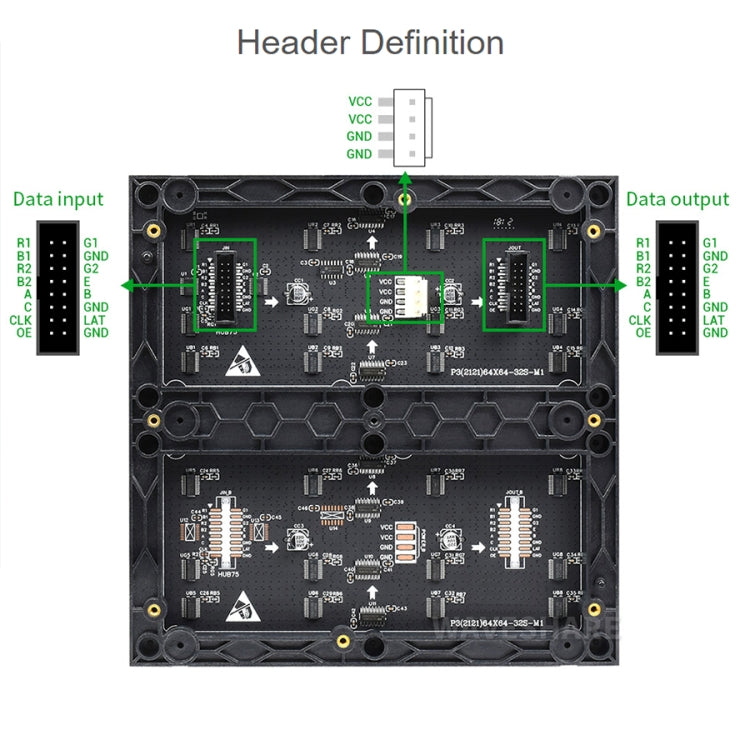

4. Built-in two HUB75 headers, one for controller data input, one for output, support daisy chain
5. Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on.
Specifications
1. Size: 192mm x 192mm
2. Pixel: 64 x 64=4096 points
3. Spacing: 3mm
4. Pixel module: 1R1G1B
5. Viewing angle: greater than or equal to 160 degrees
6. Control type: synchronous
7. Guide: 1/32 scan
8. Connector: HUB75
9. Power supply: 5V/4A (VH4 connector input)
10. Power: less than or equal to 20W

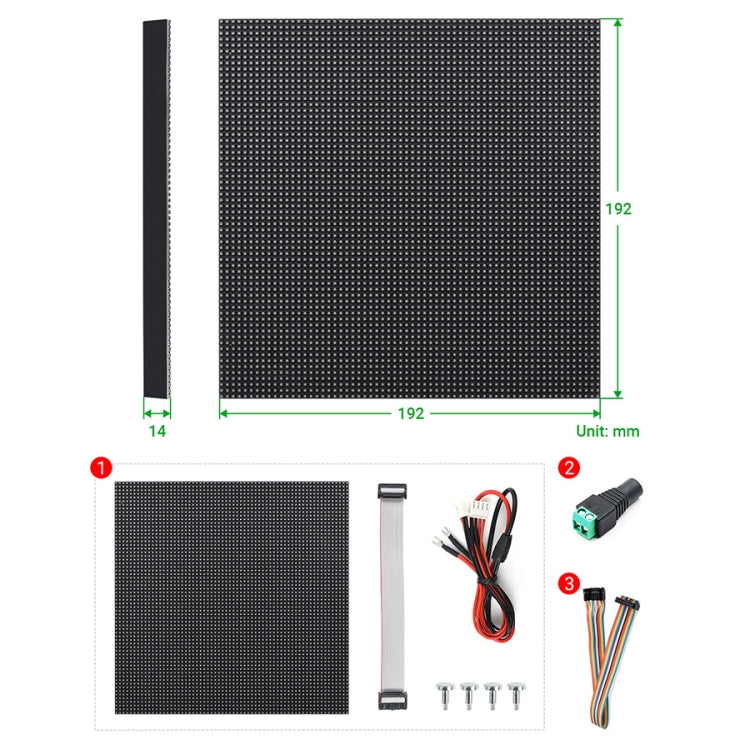

List of packages
1. RGB-Matrix-P3-64x64 LED matrix and accessories x 1
2. Power terminal adapter x 1
3. 16P cable about 30cm x 1
As night falls, the dazzling neon lights of the streets and alleys illuminate the entire city, making it more dynamic. Of course, the color LED matrix panel is playing an important role. Maybe being at the doors of the shops, maybe being on the bus or taxi, you can always see animations or advertising videos. Sounds good? Why not try it?
1. 4096 individual RGB LEDs, full color display, adjustable brightness
2. 64 x 64 pixels, 3 mm pitch, allows displaying text, colored images or animations
3. Size 192 x 192mm, moderate size, suitable for DIY desktop display or wall-mount display
4. Built-in two HUB75 headers, one for controller data input, one for output, support daisy chain
5. Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on.
Specifications
1. Size: 192mm x 192mm
2. Pixel: 64 x 64=4096 points
3. Spacing: 3mm
4. Pixel module: 1R1G1B
5. Viewing angle: greater than or equal to 160 degrees
6. Control type: synchronous
7. Guide: 1/32 scan
8. Connector: HUB75
9. Power supply: 5V/4A (VH4 connector input)
10. Power: less than or equal to 20W
List of packages
1. RGB-Matrix-P3-64x64 LED matrix and accessories x 1
2. Power terminal adapter x 1
3. 16P cable about 30cm x 1
