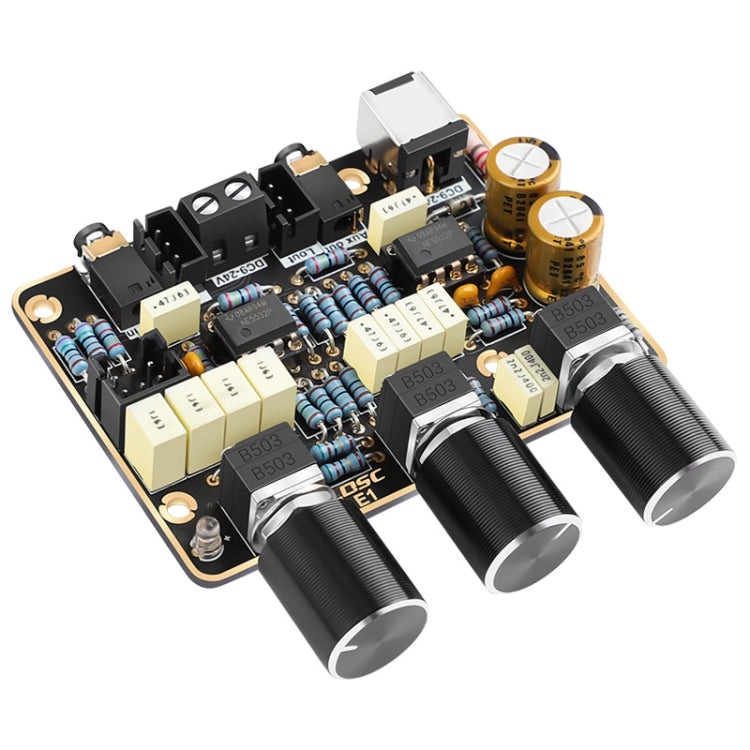

NE5532 Tuner Plate Active Filter Amplifier Board HIFI Front Module Universal Dual Function Amplifier, NE5532
€15,78
Disponibile
1. Use NE5532 chip, can replace OP275, AD828, NJM4558, TL072 and other general-purpose dual op amps 2. Low quiescent current and noise suppression 3. Bass: 100HZ/80DB gain adjustment 4. Tweeter: 10KHZ/80DB gain adjustment 5. Frequency...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. Use NE5532 chip, can replace OP275, AD828, NJM4558, TL072 and other general-purpose dual op amps
2. Low quiescent current and noise suppression
3. Bass: 100HZ/80DB gain adjustment
4. Tweeter: 10KHZ/80DB gain adjustment
5. Frequency response: 20-20000 HZ
6. Signal to noise ratio: 98 dB
7. Power supply voltage: DC9-24V (5 x 2.1mm core input, 2P chassis input)
8. The 2x770mW stereo power rating (24V/32 ohm) can be connected to loads greater than 32 ohm
9. Output method: 3.5mm audio jack
10. Input method: 3.5mm audio terminal, 3P 2.54mm terminal block, 6P 2.5mm chassis
11. PCB: 72x53mm
12. Total: 72x53x15mm
13. Potentiometer knob opening: 7mm
14. Mounting hole spacing: 47.58x36mm
15. Net weight: 54 g
2. Low quiescent current and noise suppression
3. Bass: 100HZ/80DB gain adjustment
4. Tweeter: 10KHZ/80DB gain adjustment
5. Frequency response: 20-20000 HZ
6. Signal to noise ratio: 98 dB
7. Power supply voltage: DC9-24V (5 x 2.1mm core input, 2P chassis input)
8. The 2x770mW stereo power rating (24V/32 ohm) can be connected to loads greater than 32 ohm
9. Output method: 3.5mm audio jack
10. Input method: 3.5mm audio terminal, 3P 2.54mm terminal block, 6P 2.5mm chassis
11. PCB: 72x53mm
12. Total: 72x53x15mm
13. Potentiometer knob opening: 7mm
14. Mounting hole spacing: 47.58x36mm
15. Net weight: 54 g
