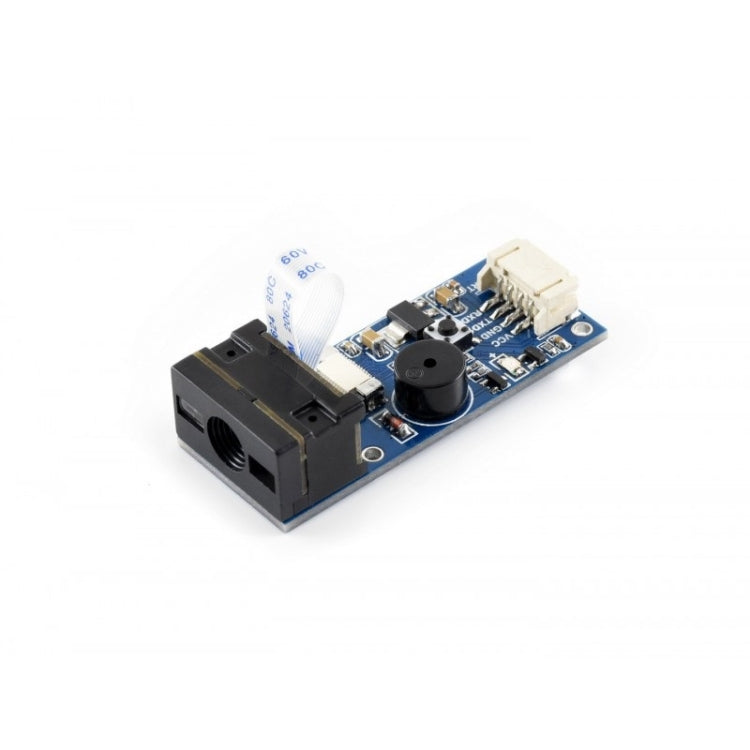

Waveshare Barcode Scanner Module, 1D/2D Code Reader, 14810
€38,47
Disponibile
Overview 1. This is a small 1D/2D code reader, using intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, quickly and accurately. 2. Through the built-in USB and...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Overview
1. This is a small 1D/2D code reader, using intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, quickly and accurately.
2. Through the built-in USB and UART interface, it can be directly connected to a computer or easily integrated into kinds of devices due to its small form factor.
Characteristics
1. Easy to use, no image recognition knowledge required
2. Decode various common 1D/2D codes such as barcodes, QR codes etc.
3. Built-in micro USB and UART serial port, allows connection with computers or embedded devices
4. Configurable by scanning the "configuration code"
5. On-board light source, works in the dark
Specifications
1. Operating voltage: 5V.
2. Operating current: 135 mA (scan), 58 mA (standby), 2 mA (sleep)
3. Operating temperature: 0°C~60°C
4. Operating humidity: 5% ~ 95% (non-condensing)
5. Communication interface: UART, USB
6. Decode 1D codes: Codebar, Code 11, Code 39 / Code 93, UPC / EAN, Code 128 / EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar (RSS)
7. 2D code decoding: QR code, Data Matrix, PDF417
8. Light source: white
9. Scanning angels: 360° rotation, ±65° tilt, ±60° tilt
10. Field of view: 28°(horizontal), 21.5°(vertical)
11. Size: 53.3mm x 21.4mm
12. Package Contents:
- Barcode scanner module x1
- USB Type A plug to Micro B plug cable x1
- PH2.0 4Pin x1
1. This is a small 1D/2D code reader, using intelligent image recognition algorithm, it will decode the barcode or 2D code on paper or screen, quickly and accurately.
2. Through the built-in USB and UART interface, it can be directly connected to a computer or easily integrated into kinds of devices due to its small form factor.
Characteristics
1. Easy to use, no image recognition knowledge required
2. Decode various common 1D/2D codes such as barcodes, QR codes etc.
3. Built-in micro USB and UART serial port, allows connection with computers or embedded devices
4. Configurable by scanning the "configuration code"
5. On-board light source, works in the dark
Specifications
1. Operating voltage: 5V.
2. Operating current: 135 mA (scan), 58 mA (standby), 2 mA (sleep)
3. Operating temperature: 0°C~60°C
4. Operating humidity: 5% ~ 95% (non-condensing)
5. Communication interface: UART, USB
6. Decode 1D codes: Codebar, Code 11, Code 39 / Code 93, UPC / EAN, Code 128 / EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar (RSS)
7. 2D code decoding: QR code, Data Matrix, PDF417
8. Light source: white
9. Scanning angels: 360° rotation, ±65° tilt, ±60° tilt
10. Field of view: 28°(horizontal), 21.5°(vertical)
11. Size: 53.3mm x 21.4mm
12. Package Contents:
- Barcode scanner module x1
- USB Type A plug to Micro B plug cable x1
- PH2.0 4Pin x1
