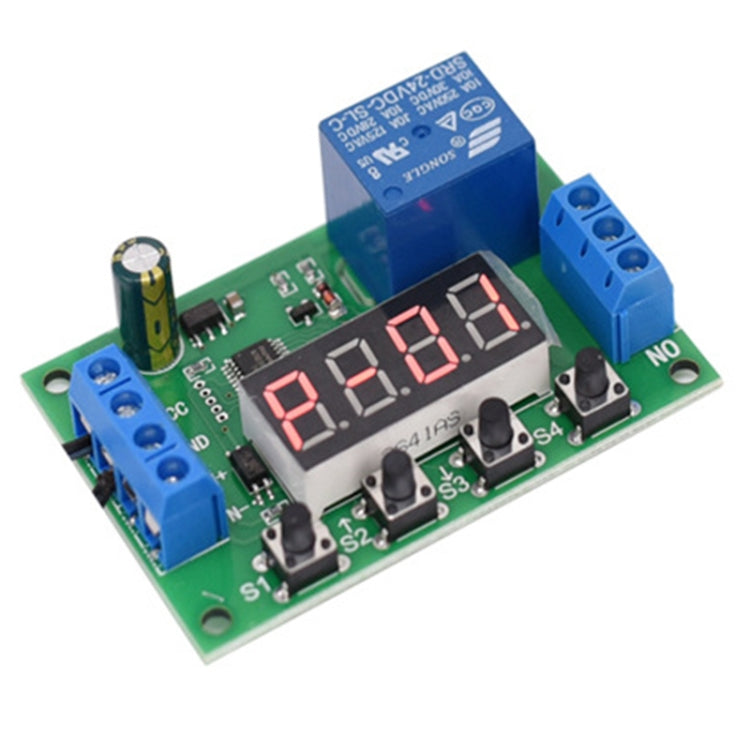

5V Timer Relay Module Trigger OFF/ON Switch Cycle Timing Relay Board, 5V

Product information
1. Multifunctional time relay module, a variety of working voltages are optional, DC5V
2. The output terminal is isolated from the circuit by a relay, which can control low-voltage electrical appliances and 220V lines, with a control capacity of up to 10A.
3. There are up to 27 working modes to meet various automatic testing and control applications, and the delay time is adjustable from 0.01 seconds to 999 minutes.
4. The trigger port can be activated by a voltage signal or it can be activated by a button.
Specifications
1. Power supply voltage: DC 5V
2. Trigger terminal voltage: DC 5~30V (can also be triggered by button)
3. Relay control current: 10A
4. Module size: 63 x 42 x 20mm (length, width and height)
Specifications set
1. Press and hold S1 button and don't let go, after 0.5 seconds the display will show P-xx, press S2 and S3 to change working mode.
2. After selecting the working mode, short press S1 key to enter the A time setting, and the screen displays Axxx. At this time, press S2 and S3 keys to modify the A time parameters. Short press S2 and S3 keys to add or subtract 1, and long press to quickly add or subtract. 10. Press S4 key to set the decimal point position.
3. After setting time A, press S1 button to set time B and the screen displays bxxx. At this time, press S2 and S3 buttons to change the parameters of time B. Short press S2 and S3 buttons to add or subtract 1, and long press to quickly add or subtract. 10. Press S4 button to set the decimal point position.
4. After setting the time B, press the S1 button for the last time to exit the setting state and save all the parameters.
Point position
1. The decimal point Ax.xx is in hundreds, the time range is 0.01~9.99 seconds
2. The decimal point Axx.x is in ten places, the time range is 0.1~99.9 seconds
3. Axxx. The decimal point is in one place, the time range is 1~999 seconds
4. Axxx has no decimal point, the time range is 1~999 minutes
5. Display off: In the unset state, press the S4 button to turn off the display, and press it again to turn it on again.
