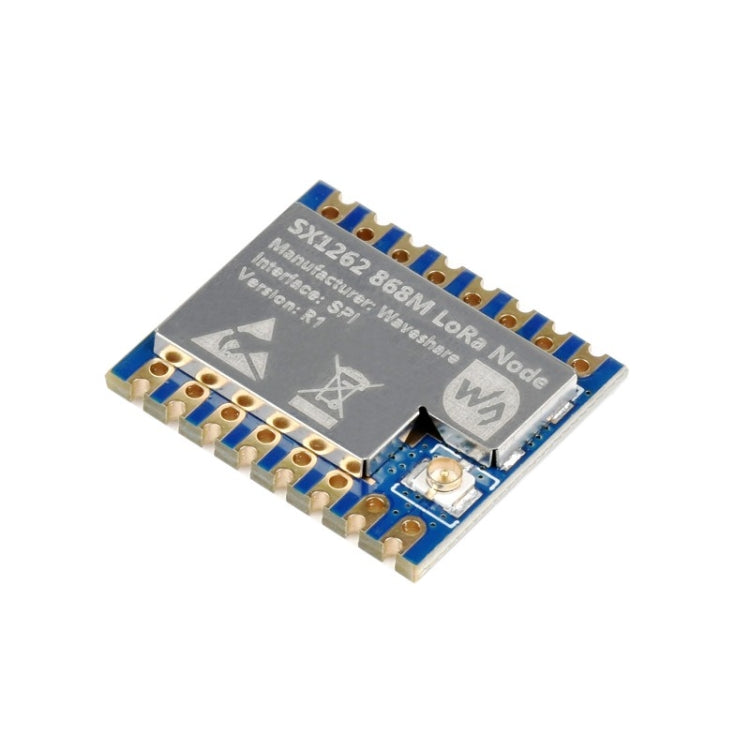

Waveshare Core1262-868M Anti-Interference LoRa Module SX1262, EU868 Band
€9,74
Disponibile
Product Information B> Core1262-868M is a lora core module which incorporates the new generation SX1262 chip. It has the features including mini size, long range transmission, high anti-interference ability, and so on. The module uses...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Product Information B>
Core1262-868M is a lora core module which incorporates the new generation SX1262 chip. It has the features including mini size, long range transmission, high anti-interference ability, and so on. The module uses EU868 band, combined with Lora gateway, can be connected to servers such as TTN server to build Lora network.
1. New generation SX1262, higher energy efficiency and longer transmission distance than traditional SX1278
2. EU868 band, combined with LORA GATEWAY, fast connection to cloud servers such as TTN Server
3. Comes with rich development resources and manual (examples for STM32, Raspberry Pi PIO)
Specifications B>
1. RF chip: SX1262
2. Frequency range: EU868 (863 ~ 870 MHz)
3. Modulation: LORA / (G) FSK
4. Data rate: 0.018 ~ 62.5kbps (Lora), 0.6 ~ 300kbps ((G)FSK)
5. Emit Power: more than 14DBM 3.3V
6. Diffusion factor: SF5 ~ SF12
7. Operating voltage: 3.3V
8. Module Power Consumption: Actuation Current: 45mA 14DBM;
Power reception: 5.3mana 125khz
9. Communication bus: SPI
10. Operating temperature: -40 ~ 85 degrees c
11. Connector: CASTELLATO EDGE / SOLDER HOLES
12. Dimensions: 21.00 x 52.00mm
Core1262-868M is a lora core module which incorporates the new generation SX1262 chip. It has the features including mini size, long range transmission, high anti-interference ability, and so on. The module uses EU868 band, combined with Lora gateway, can be connected to servers such as TTN server to build Lora network.
1. New generation SX1262, higher energy efficiency and longer transmission distance than traditional SX1278
2. EU868 band, combined with LORA GATEWAY, fast connection to cloud servers such as TTN Server
3. Comes with rich development resources and manual (examples for STM32, Raspberry Pi PIO)
Specifications B>
1. RF chip: SX1262
2. Frequency range: EU868 (863 ~ 870 MHz)
3. Modulation: LORA / (G) FSK
4. Data rate: 0.018 ~ 62.5kbps (Lora), 0.6 ~ 300kbps ((G)FSK)
5. Emit Power: more than 14DBM 3.3V
6. Diffusion factor: SF5 ~ SF12
7. Operating voltage: 3.3V
8. Module Power Consumption: Actuation Current: 45mA 14DBM;
Power reception: 5.3mana 125khz
9. Communication bus: SPI
10. Operating temperature: -40 ~ 85 degrees c
11. Connector: CASTELLATO EDGE / SOLDER HOLES
12. Dimensions: 21.00 x 52.00mm
