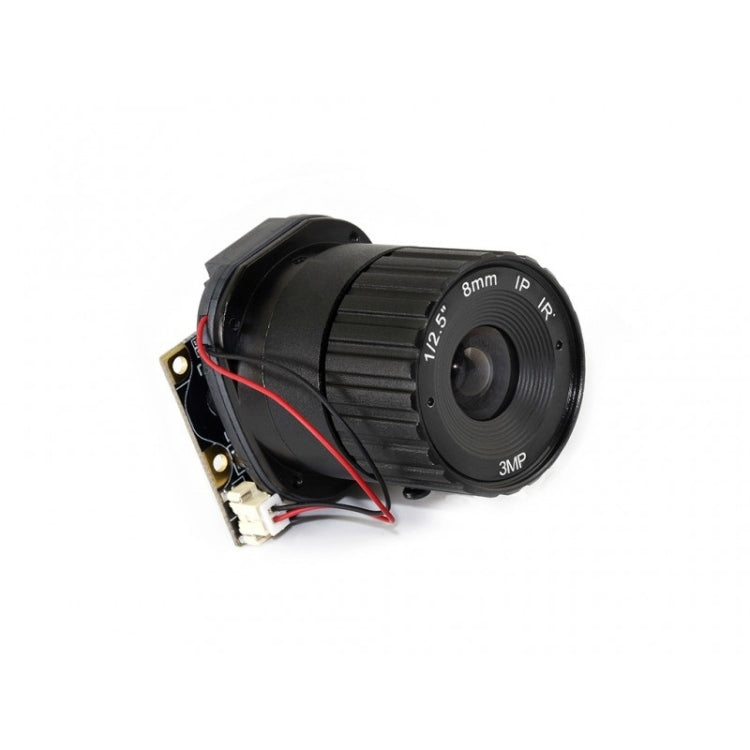

Waveshare Raspberry Pi Camera Module, Built-in IR-CUT, Support Night Vision, Type-B
€26,05
Disponibile
Characteristics 1. Raspberry Pi Camera, supports all revisions of the Pi 2. Built-in removable IR-CUT filter, eliminating color distortion in daylight 3. Comes with infrared LED, supports night vision 4. 5 megapixel OV5647 sensor 5....
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Characteristics
1. Raspberry Pi Camera, supports all revisions of the Pi
2. Built-in removable IR-CUT filter, eliminating color distortion in daylight
3. Comes with infrared LED, supports night vision
4. 5 megapixel OV5647 sensor
5. Adjustable focus distance
6. Camera Specifications
- CCD size: 1/4 inch
- Aperture (F): 1.2
- Focal length: 8mm
- Viewing angle (diagonal): 40 degrees
- Best sensor resolution: 1080p
7. 4 screw holes
- Used for fixing
- Provides 3.3V power.
- Supports connecting infrared LED and/or fill flash LED
8. Size: 31mm x 32mm
Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to purchase a specific cable: Raspberry Pi Zero Camera Cable v1.3
Note: The effective image pixels are 5MP, which depends on the sensor, so it doesn't matter that there is a 3MP silk mark on the camera.
Package Contents
1. RPi IR-CUT Camera (B) x1
2. Infrared LED board (B) x2
3. 15-pin FFC (opposite side contact) x1
1. Raspberry Pi Camera, supports all revisions of the Pi
2. Built-in removable IR-CUT filter, eliminating color distortion in daylight
3. Comes with infrared LED, supports night vision
4. 5 megapixel OV5647 sensor
5. Adjustable focus distance
6. Camera Specifications
- CCD size: 1/4 inch
- Aperture (F): 1.2
- Focal length: 8mm
- Viewing angle (diagonal): 40 degrees
- Best sensor resolution: 1080p
7. 4 screw holes
- Used for fixing
- Provides 3.3V power.
- Supports connecting infrared LED and/or fill flash LED
8. Size: 31mm x 32mm
Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to purchase a specific cable: Raspberry Pi Zero Camera Cable v1.3
Note: The effective image pixels are 5MP, which depends on the sensor, so it doesn't matter that there is a 3MP silk mark on the camera.
Package Contents
1. RPi IR-CUT Camera (B) x1
2. Infrared LED board (B) x2
3. 15-pin FFC (opposite side contact) x1
