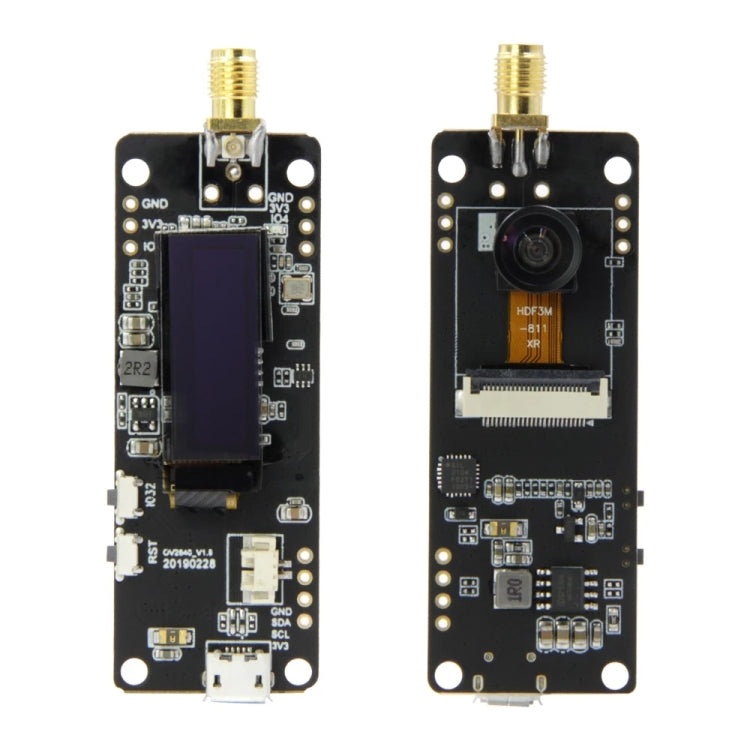

TTGO OV2640 Fish-eye Lens Camera Module OLED WiFi Development Board SMA 0.91 with 3dbi Antenna, Fish-eye Lens
€28,07
Disponibile
Hardware Specifications 1. Chipset: Espressif-ESP32-PCIO-D4 240MHz XENSA LX6 single/dual-core 32-bit microprocessor 2. Flash: QSPI Flash/SRAM, up to 4 x 16MB 3. SRAM: 520 KB SRAM 4. Button: Reset IO32 5. Display: 0.91 SSD1306 6. Power...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Hardware Specifications
1. Chipset: Espressif-ESP32-PCIO-D4 240MHz XENSA LX6 single/dual-core 32-bit microprocessor
2. Flash: QSPI Flash/SRAM, up to 4 x 16MB
3. SRAM: 520 KB SRAM
4. Button: Reset IO32
5. Display: 0.91 SSD1306
6. Power indicator lamp: red
7. USB to TTL: CP2104
8. Camera: OV2640 2.0 megapixel
9. Steering motor: analog servo
10. On-board clock: 40mHz crystal oscillator
11. Working voltage: 2.3V-3.6V
12. Working current: about 160mA
13. Working temperature range: -40 degrees C ~ +85 degrees C
14. Size: 64.57mm x 23.98mm
Power Specifications
1. Power supply: USB 5V/1A
2. Grab current: 1st
3. Battery: 3.7V lithium battery (not included)
Wifi
1. Standard: FCC/CE/Telec/KCC/SRRC/NCC (ESP32 chip)
2. Protocol: 802.11 B/G/N/E/I (802.11N, speed up to 1550 MBPS) A-MPDU and A-MSDU polymerization, Support 0.4US Protection interval
3. Frequency range: 2.4GHz ~ 2.5GHz (2400m ~ 2483.5m)
4. Power transmission: 22dbm
5. Communication distance: 300m
Bluetooth
1. Protocol: Meet Bluetooth V4.2BR/EDR and BLE Standard
2. Radio Frequency: with -98dbm Sensitivity NZIF Receiver Class 1, Class 2 and Class-3 AFH Emitter
3. Audio frequency: CVSD and SBC audio frequency
Software Specification
1. WiFi Mode: Station/Softap/Softap+Station/P2P
2. Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption type: AES/RSA/ECC/SHA
4. Firmware Update: UART Download/OTA (via network/host to download and write firmware)
5. Software development: Support cloud server development / SDK for user firmware development
6. Network Protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User setup: At + ISTRUIT set, cloud server, Android/iOS app
8. OS: OS FREERT
1. Chipset: Espressif-ESP32-PCIO-D4 240MHz XENSA LX6 single/dual-core 32-bit microprocessor
2. Flash: QSPI Flash/SRAM, up to 4 x 16MB
3. SRAM: 520 KB SRAM
4. Button: Reset IO32
5. Display: 0.91 SSD1306
6. Power indicator lamp: red
7. USB to TTL: CP2104
8. Camera: OV2640 2.0 megapixel
9. Steering motor: analog servo
10. On-board clock: 40mHz crystal oscillator
11. Working voltage: 2.3V-3.6V
12. Working current: about 160mA
13. Working temperature range: -40 degrees C ~ +85 degrees C
14. Size: 64.57mm x 23.98mm
Power Specifications
1. Power supply: USB 5V/1A
2. Grab current: 1st
3. Battery: 3.7V lithium battery (not included)
Wifi
1. Standard: FCC/CE/Telec/KCC/SRRC/NCC (ESP32 chip)
2. Protocol: 802.11 B/G/N/E/I (802.11N, speed up to 1550 MBPS) A-MPDU and A-MSDU polymerization, Support 0.4US Protection interval
3. Frequency range: 2.4GHz ~ 2.5GHz (2400m ~ 2483.5m)
4. Power transmission: 22dbm
5. Communication distance: 300m
Bluetooth
1. Protocol: Meet Bluetooth V4.2BR/EDR and BLE Standard
2. Radio Frequency: with -98dbm Sensitivity NZIF Receiver Class 1, Class 2 and Class-3 AFH Emitter
3. Audio frequency: CVSD and SBC audio frequency
Software Specification
1. WiFi Mode: Station/Softap/Softap+Station/P2P
2. Security mechanism: WPA/WPA2/WPA2-Enterprise/WPS
3. Encryption type: AES/RSA/ECC/SHA
4. Firmware Update: UART Download/OTA (via network/host to download and write firmware)
5. Software development: Support cloud server development / SDK for user firmware development
6. Network Protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
7. User setup: At + ISTRUIT set, cloud server, Android/iOS app
8. OS: OS FREERT
Size:
