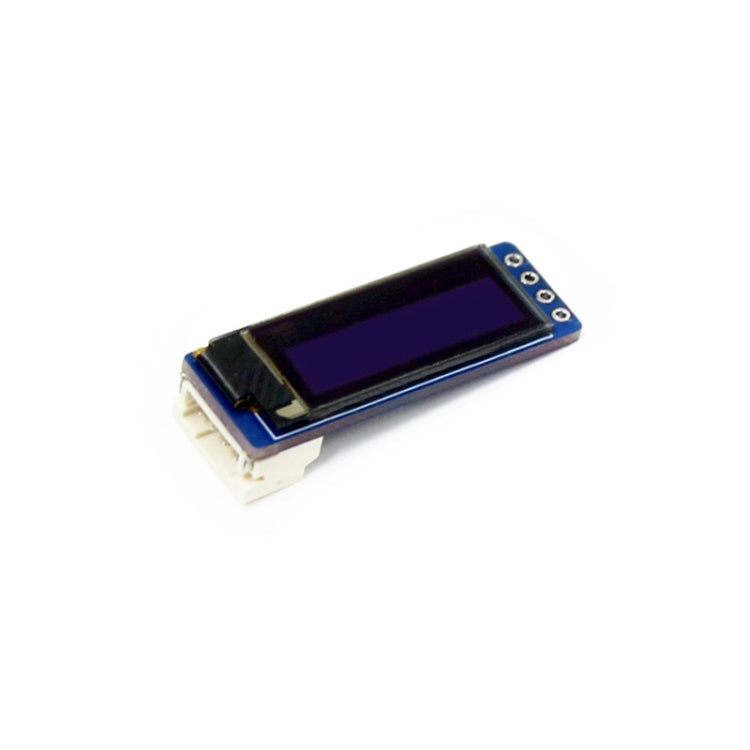

Waveshare 0.91 inch 128x32 pixels OLED Display Module I2C Interface 14657
€6,99
Disponibile
Overview This is a general OLED display module, 0.91 inch diagonal, 128x32 pixels, with built-in controller, communicating via I2C interface. Characteristics 1. Small 0.91-inch form factor 2. 128x32 high resolution 3. I2C interface, only requires...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
Overview
This is a general OLED display module, 0.91 inch diagonal, 128x32 pixels, with built-in controller, communicating via I2C interface.
Characteristics
1. Small 0.91-inch form factor
2. 128x32 high resolution
3. I2C interface, only requires two signal pins
4. Comes with development resources and manual (examples for Raspberry Pi / Arduino / STM32)
Specifications
1. Driver: SSD1306
2. Interface: I2C
3. Display color: white
4. Resolution: 128x32
5. Viewing angle: >160 degrees
6. Working voltage: 3.3V / 5V.
7. Size: 36 x 12.5 (mm)
Package Contents
1. 0.91 inch OLED module x1
3. PH2.0 4Pin x1
This is a general OLED display module, 0.91 inch diagonal, 128x32 pixels, with built-in controller, communicating via I2C interface.
Characteristics
1. Small 0.91-inch form factor
2. 128x32 high resolution
3. I2C interface, only requires two signal pins
4. Comes with development resources and manual (examples for Raspberry Pi / Arduino / STM32)
Specifications
1. Driver: SSD1306
2. Interface: I2C
3. Display color: white
4. Resolution: 128x32
5. Viewing angle: >160 degrees
6. Working voltage: 3.3V / 5V.
7. Size: 36 x 12.5 (mm)
Package Contents
1. 0.91 inch OLED module x1
3. PH2.0 4Pin x1
