Prodotto selezionato

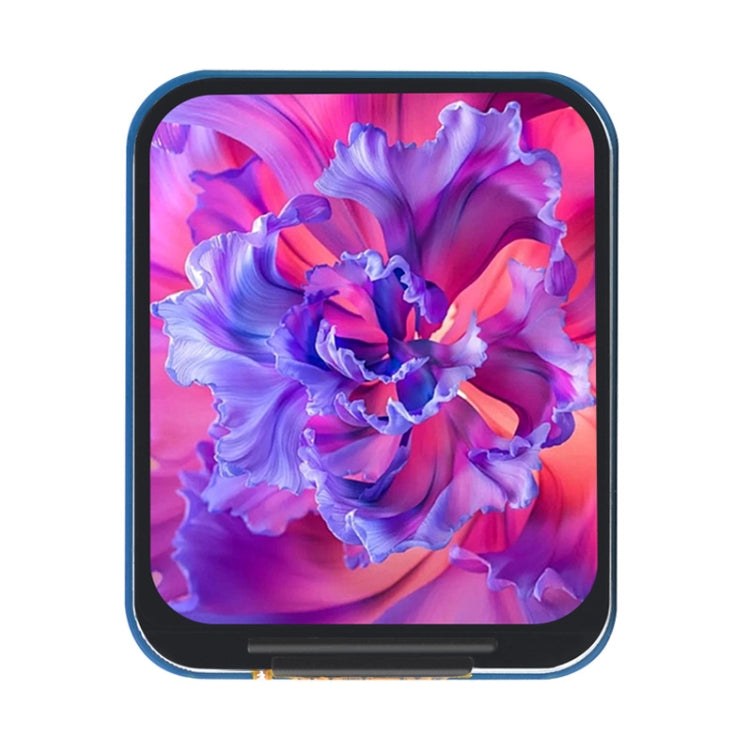

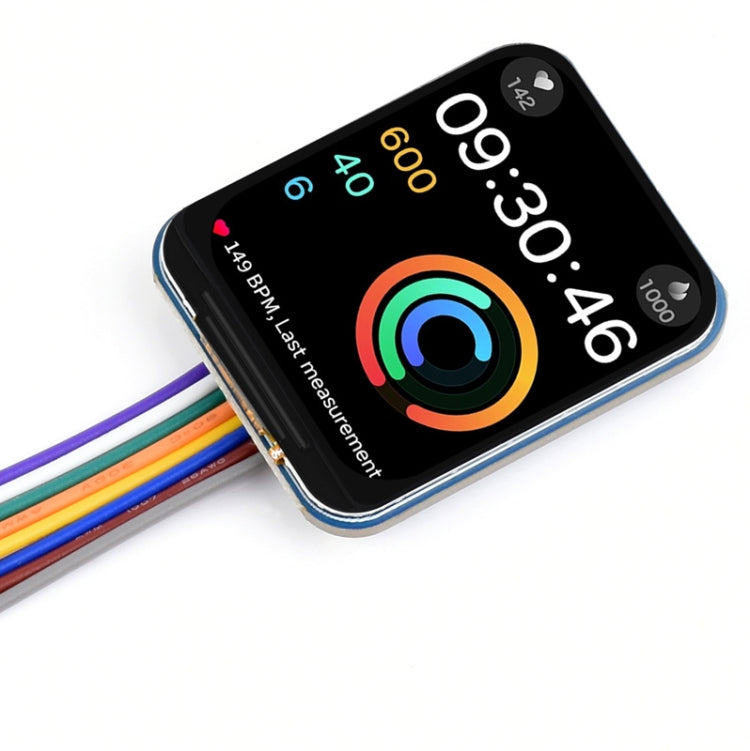

Waveshare 1.69 Inch 240×280 Resolution IPS LCD Display Module with SPI Interface, 1.69 Inch
€9,20
Disponibile
1. 1.69 inch LCD expansion board with built-in ST7789V2 driver chip 2. Resolution 240×280, 262K color, can clearly display color images 3. Use SPI control to ensure that too many interface pin resources are not...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto

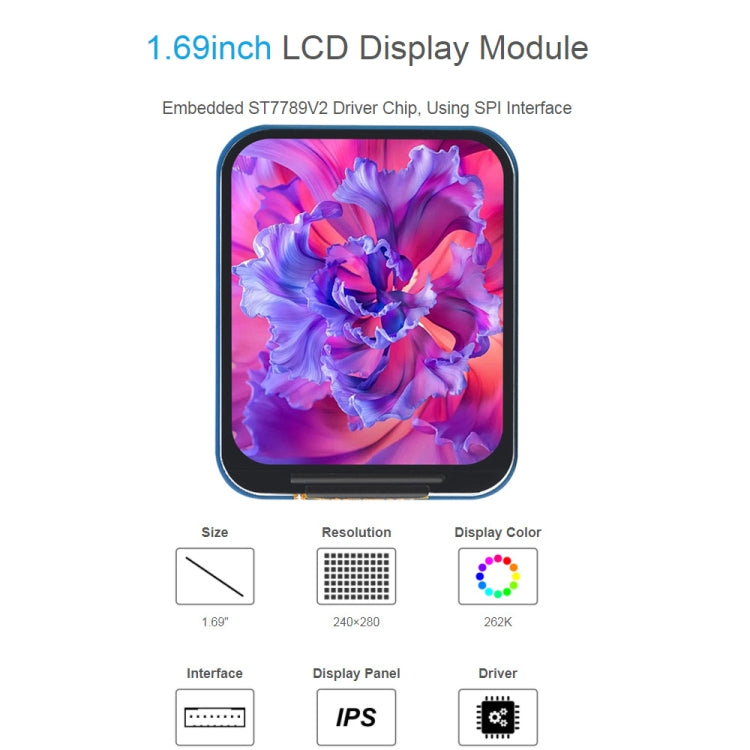

1. 1.69 inch LCD expansion board with built-in ST7789V2 driver chip
2. Resolution 240×280, 262K color, can clearly display color images

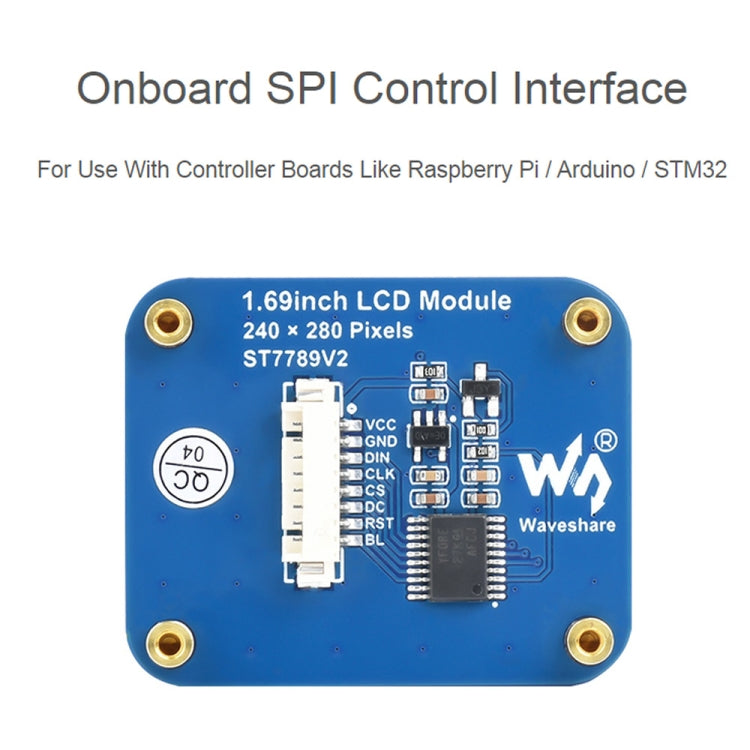

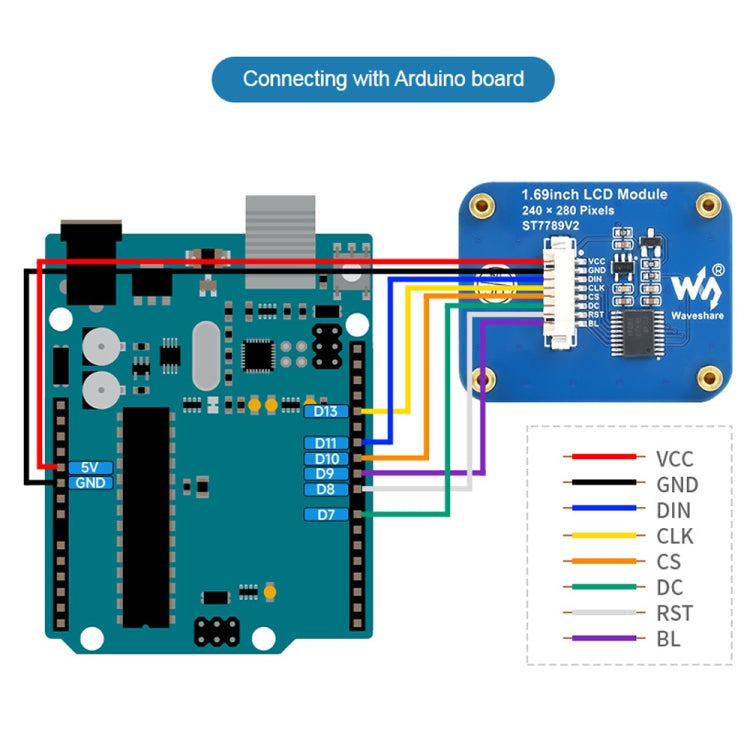

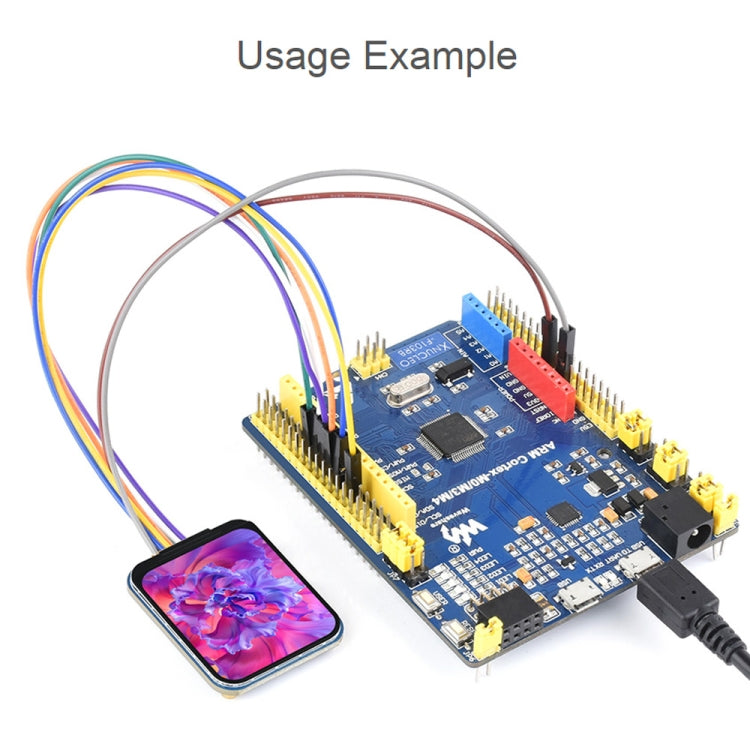

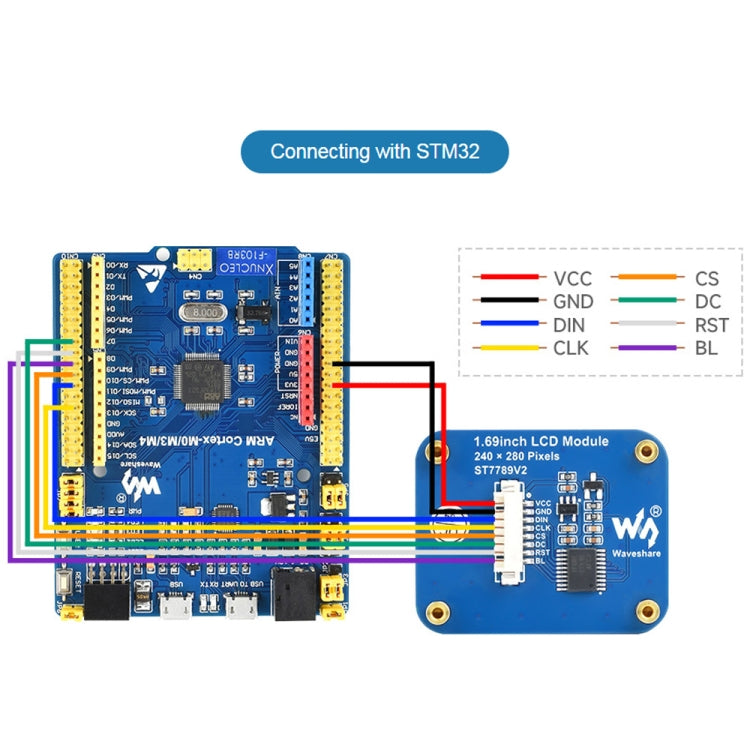

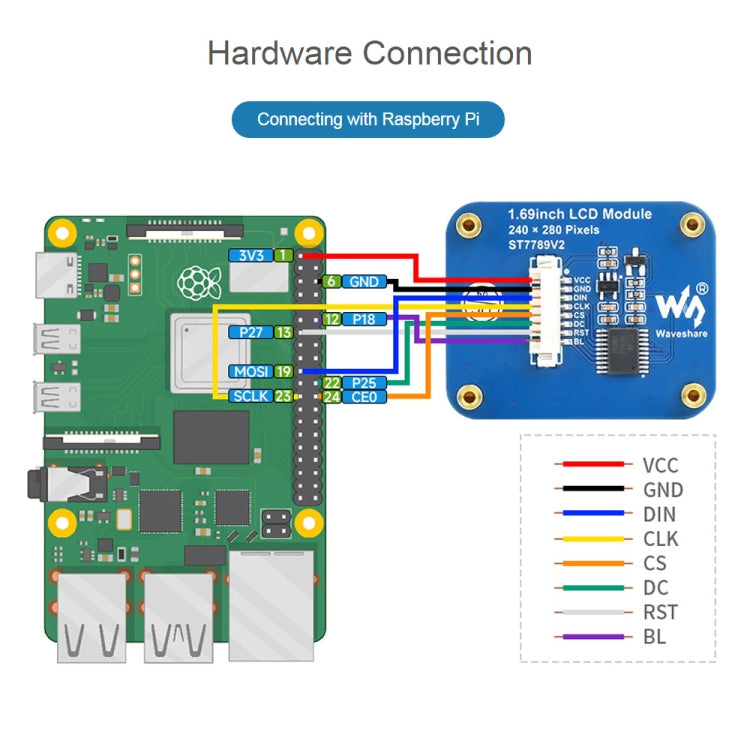

3. Use SPI control to ensure that too many interface pin resources are not occupied and can be connected to the main control boards such as Raspberry Pi / Arduino / STM32

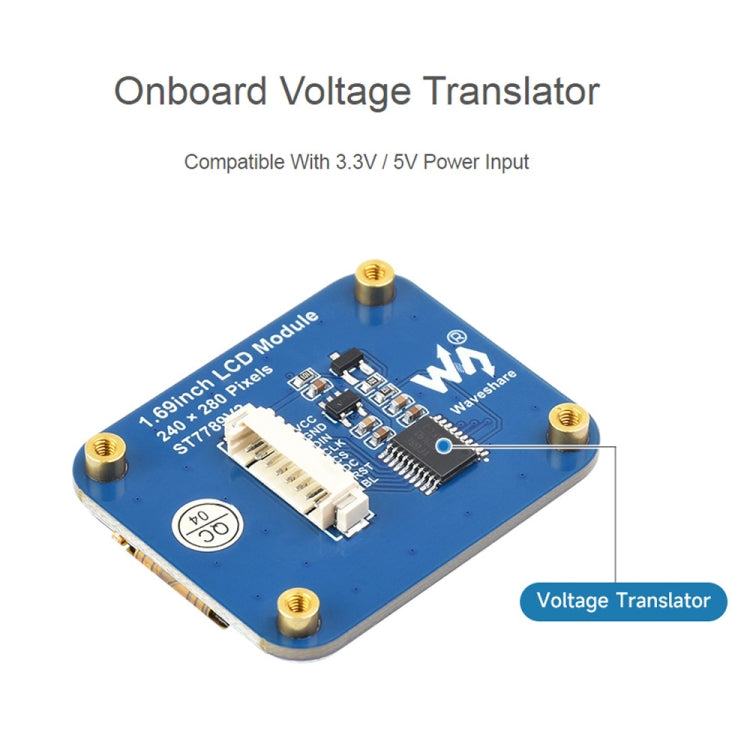

4. Built-in level conversion chip, compatible with 3.3V/5V power input
5. Provide complete supporting information manuals (sample programs such as Raspberry Pi / Arduino / STM32)
Parameter:
1. Working voltage: 3.3V/5V
2. Resolution: 240 × 280 pixels
3. Communication interface: 4-wire SPI

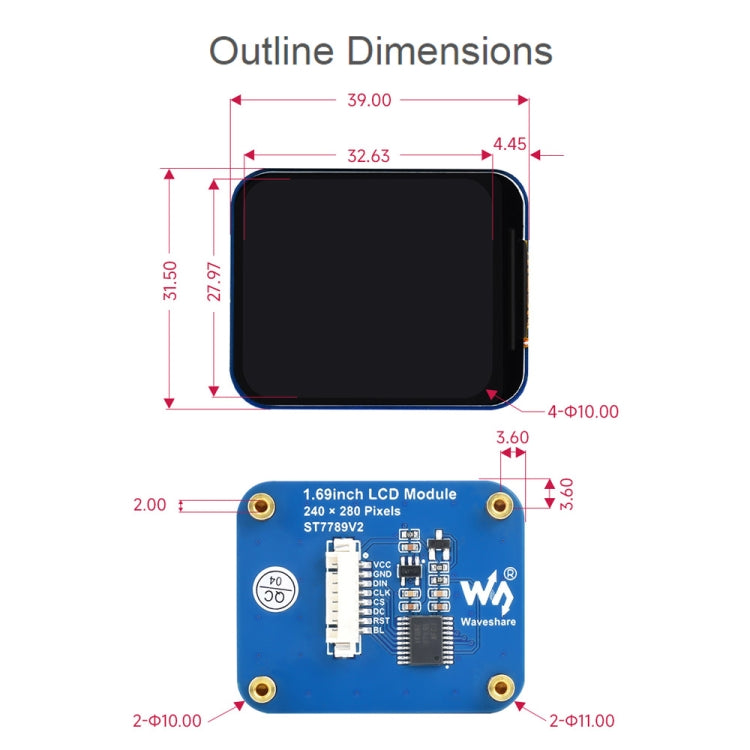

4. Display size: 27.97 × 32.63 mm
5. Display Panel: IPS
6. Pixel Size: 0.11655×0.11655mm
7. Control chip: ST7789V2
8. Product size: 31.50 × 39.00 mm
Packing list:
-1.69 inch LCD module × 1
-GH1.25 8 PIN Cable 20cm × 1
2. Resolution 240×280, 262K color, can clearly display color images
3. Use SPI control to ensure that too many interface pin resources are not occupied and can be connected to the main control boards such as Raspberry Pi / Arduino / STM32
4. Built-in level conversion chip, compatible with 3.3V/5V power input
5. Provide complete supporting information manuals (sample programs such as Raspberry Pi / Arduino / STM32)
Parameter:
1. Working voltage: 3.3V/5V
2. Resolution: 240 × 280 pixels
3. Communication interface: 4-wire SPI
4. Display size: 27.97 × 32.63 mm
5. Display Panel: IPS
6. Pixel Size: 0.11655×0.11655mm
7. Control chip: ST7789V2
8. Product size: 31.50 × 39.00 mm
Packing list:
-1.69 inch LCD module × 1
-GH1.25 8 PIN Cable 20cm × 1
