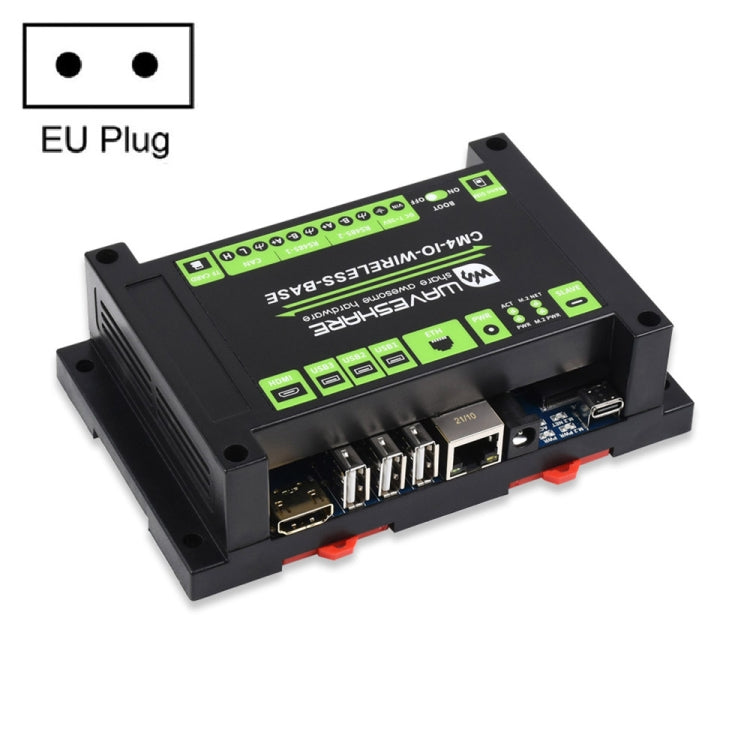

Waveshare Industrial IoT Wireless Expansion Module for Raspberry Pi CM4
€112,85
Disponibile
About the protutto b> This is an industrial expansion module based on Raspberry PIM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB and GPIO, allows you to connect additional 4G/5G/LORA wireless communication modules...
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
About the protutto b>
This is an industrial expansion module based on Raspberry PIM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB and GPIO, allows you to connect additional 4G/5G/LORA wireless communication modules via M.2 or Mini-PCIE socket. There are also industrial/resource interfaces including RS485, Can and RTC.
Combined with the industrial rail mounting protection case, the module is an ideal choice for building IOT gateway, 4G/5G router, IOT data acquisition, or even the PLC device in industrial automatic control system and more.
Specifications B>
1. Socket cm4: for all variants of the calculation module 4
2. Networking:
- Gigabit Ethernet RJ45
- M.2 B Key / Mini-PCIE (via adapter), for connecting 5G / 4G / LORA wireless module
- Nano-SIM card slot, support standard Nano-SIM card for 5G / 4G / 3G / 2G communication
3. USB: USB 2.0 x 3
4. Pin header: RS485 x 2 non-isolated RS485 x 2, non-isolated X 1, some GPIO pins
5. Camera: MIPI CSI-2 x 1 (15-pin 1.0mm FPC connector)
6. VIDEO: HDMI X 1, support 4K 30FPS Output
7. RTC: Real-time clock with battery power and wake-up capability Computing module 4
8. STORAGE: microSD card socket for Compute Modules 4 lite (without EMMC variants)
9. Fan header: 5V/12V, allows speed adjustment and measurement
10. Power input: 5V or 7~36V
11. Dimensions: 145 x 90 x 40mm
List of packages B>
1. CM4-IO-wireless-base x 1
2. PCIE to 4G/LORA adapter x 1
3. Screwdriver x 1
4. Screw packaging x 1
5. Power adapter 12V 2A x 1
Weight of each package
0.38kgs / 0.83lb
This is an industrial expansion module based on Raspberry PIM4, which features common interfaces such as Gigabit Ethernet, HDMI, USB and GPIO, allows you to connect additional 4G/5G/LORA wireless communication modules via M.2 or Mini-PCIE socket. There are also industrial/resource interfaces including RS485, Can and RTC.
Combined with the industrial rail mounting protection case, the module is an ideal choice for building IOT gateway, 4G/5G router, IOT data acquisition, or even the PLC device in industrial automatic control system and more.
Specifications B>
1. Socket cm4: for all variants of the calculation module 4
2. Networking:
- Gigabit Ethernet RJ45
- M.2 B Key / Mini-PCIE (via adapter), for connecting 5G / 4G / LORA wireless module
- Nano-SIM card slot, support standard Nano-SIM card for 5G / 4G / 3G / 2G communication
3. USB: USB 2.0 x 3
4. Pin header: RS485 x 2 non-isolated RS485 x 2, non-isolated X 1, some GPIO pins
5. Camera: MIPI CSI-2 x 1 (15-pin 1.0mm FPC connector)
6. VIDEO: HDMI X 1, support 4K 30FPS Output
7. RTC: Real-time clock with battery power and wake-up capability Computing module 4
8. STORAGE: microSD card socket for Compute Modules 4 lite (without EMMC variants)
9. Fan header: 5V/12V, allows speed adjustment and measurement
10. Power input: 5V or 7~36V
11. Dimensions: 145 x 90 x 40mm
List of packages B>
1. CM4-IO-wireless-base x 1
2. PCIE to 4G/LORA adapter x 1
3. Screwdriver x 1
4. Screw packaging x 1
5. Power adapter 12V 2A x 1
