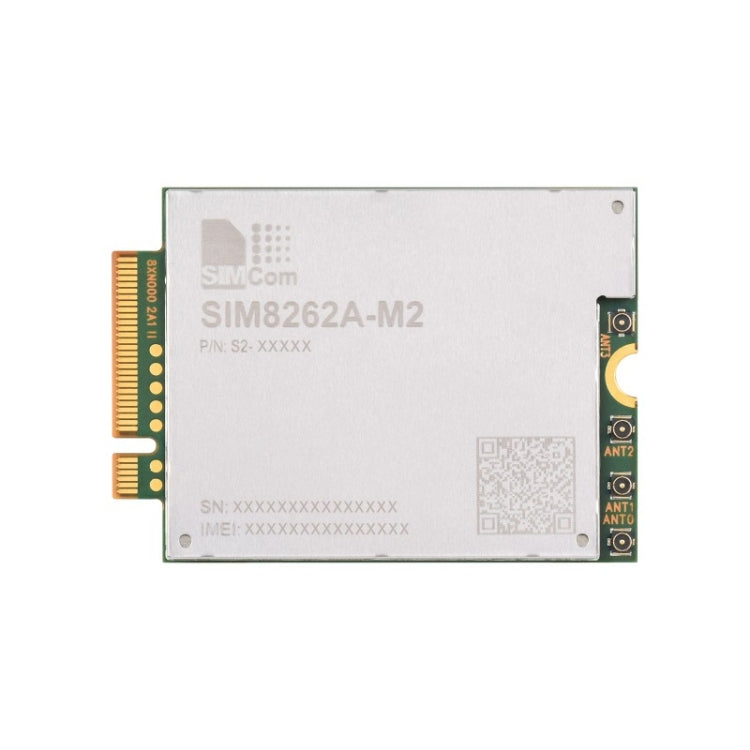

Original Waveshare SIM8262A-M2 SIMCom 5G Module, M.2 Interface, 24162
€260,58
Disponibile
1. SIM8262A-M2 SIMCom 5G Module The Sub-6G module based on Qualcomm Snapdragon X62 adopts 3GPP 5G Release 16 2. SIM8262A-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module, supports R16 5G NSA/SA, data transmission up to 2.4Gbps....
Pagamenti sicuri
Acquista con metodi di pagamento protetti.
Spedizione tracciata
Segui il tuo ordine dopo l’acquisto.
Assistenza clienti
Supporto disponibile per informazioni sul prodotto.
Descrizione prodotto
1. SIM8262A-M2 SIMCom 5G Module The Sub-6G module based on Qualcomm Snapdragon X62 adopts 3GPP 5G Release 16
2. SIM8262A-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module, supports R16 5G NSA/SA, data transmission up to 2.4Gbps.
3. It has powerful expansion capabilities and rich interfaces, including PCle, USB3.1, GPIO, etc. This module provides great flexibility and ease of integration for customer applications
4. SIM8262A-M2 adopts M.2 form factor, AT command is compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes customer investment and shortens time to market
5. It is designed for applications requiring high-throughput data communications under various radio propagation conditions. With its unique combination of performance, safety and flexibility, this module is suitable for many applications.
6. Standard M.2 interface
7. High-throughput data communication
8. The AT command of SIM8262A-M2 is compatible with SIM7912G/SIM8200X-M2 series modules
Specification:
1. 5G Standard: 3GPP R16
2. Chip: Qualcomm Snapdragon X62
3. Sub-6G: n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79
4. LTE-FDD: B1, B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71
5. LTE-TDD: B38, B41, B42, B43, B46, B48
6. WCDMA: B1, B2, B4, B5, B8
7. GNSS: GPS, GLONASS, Beidou, Galileo and QZSS
8. Operating temperature: -30 to 70 degrees Celsius
9. SIM card: 1.8V/2.95V
10. Antenna: for 3G/4G/5G/GNSS;4 IPEX-4 connectors
11. Power supply: 3.135-4.4v
12. Interface: M.2
13. Applicable areas: CPE, intelligent gateway, drone, live broadcast, telemedicine, intelligent security, etc.
14. Dimensions: 42 x 30 x 2.3 mm
Data Rate:
1. Sub-6G: 2.4Gbps (DL) / 500Mbps (UL)
2. LTE1: Gbps (DL) / 200 Mbps (UL)
3. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)
Software Features:
1. Operating System: Windows/Linux/Android
2. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
3. Composition: RNDIS, NDIS, PPP, MBIM
4. Support SMS: MT, MO, CB, Text, PDU
5. Firmware upgrade: Support firmware upgrade via USB port
2. SIM8262A-M2 is a multi-band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module, supports R16 5G NSA/SA, data transmission up to 2.4Gbps.
3. It has powerful expansion capabilities and rich interfaces, including PCle, USB3.1, GPIO, etc. This module provides great flexibility and ease of integration for customer applications
4. SIM8262A-M2 adopts M.2 form factor, AT command is compatible with SIM7912G/SIM8200X-M2 series modules. This also minimizes customer investment and shortens time to market
5. It is designed for applications requiring high-throughput data communications under various radio propagation conditions. With its unique combination of performance, safety and flexibility, this module is suitable for many applications.
6. Standard M.2 interface
7. High-throughput data communication
8. The AT command of SIM8262A-M2 is compatible with SIM7912G/SIM8200X-M2 series modules
Specification:
1. 5G Standard: 3GPP R16
2. Chip: Qualcomm Snapdragon X62
3. Sub-6G: n1, n2, n5, n7, n12, n13, n14, n18, n20, n25, n30, n41, n48, n66, n71, n77, n78, n79
4. LTE-FDD: B1, B2, B4, B5, B7, B12, B13, B14, B17, B18, B19, B25, B26, B29, B30, B66, B71
5. LTE-TDD: B38, B41, B42, B43, B46, B48
6. WCDMA: B1, B2, B4, B5, B8
7. GNSS: GPS, GLONASS, Beidou, Galileo and QZSS
8. Operating temperature: -30 to 70 degrees Celsius
9. SIM card: 1.8V/2.95V
10. Antenna: for 3G/4G/5G/GNSS;4 IPEX-4 connectors
11. Power supply: 3.135-4.4v
12. Interface: M.2
13. Applicable areas: CPE, intelligent gateway, drone, live broadcast, telemedicine, intelligent security, etc.
14. Dimensions: 42 x 30 x 2.3 mm
Data Rate:
1. Sub-6G: 2.4Gbps (DL) / 500Mbps (UL)
2. LTE1: Gbps (DL) / 200 Mbps (UL)
3. HSPA+: 42Mbps (DL) / 5.76Mbps (UL)
Software Features:
1. Operating System: Windows/Linux/Android
2. Communication protocol: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0
3. Composition: RNDIS, NDIS, PPP, MBIM
4. Support SMS: MT, MO, CB, Text, PDU
5. Firmware upgrade: Support firmware upgrade via USB port
Size:
