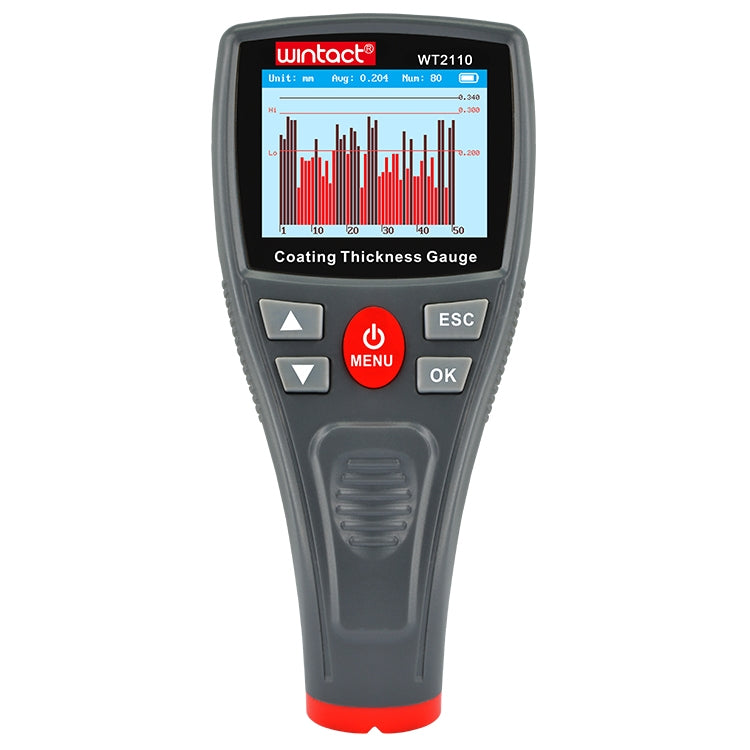

Wintact WT2110 Color Display Coating Thickness Gauge, WT2110

1. Menu operation and high-definition color screen display.
2. It can quickly, non-destructively and accurately measure the thickness of the non-magnetic coating on the magnetic metal substrate and the thickness of the non-metallic coating on the non-magnetic metal substrate. At the same time, it can automatically identify the magnetic metal substrate and the non-magnetic metal substrate.
3. Two measurement methods: single measurement and continuous measurement.
4. Three calibration modes: basic calibration, offset calibration and zero calibration. Metric/English units and storage function.
5. Screen rotation, charging protection, multi-interface display, screen brightness selection.
6. Widely used in manufacturing, metal processing, metal processing, raw material inspection and other testing fields.
7. Support USB and battery power supply.
8. Measuring range: 0-1500UM / 0-1.5mm / 0-59MIL
9. Lower limit diameter of magnetic metal substrate: 12mm
10. Lower limit thickness of magnetic metal substrate: 0.5mm
11. The lower limit radius of the curvature of the magnetic convex substrate: 2mm
12. The lower limit radius of the curvature of the magnetic concave substrate: 11mm
13. Lower limit diameter of non-magnetic metal substrate: 50mm
14. Lower limit thickness of non-magnetic metal substrate: 0.5mm
15. Battery: 3 x 1.2V Ni-MH battery or 5V 1A power adapter
16. Weight: 132g
17. Dimensions: 150 x 65 x 30mm
